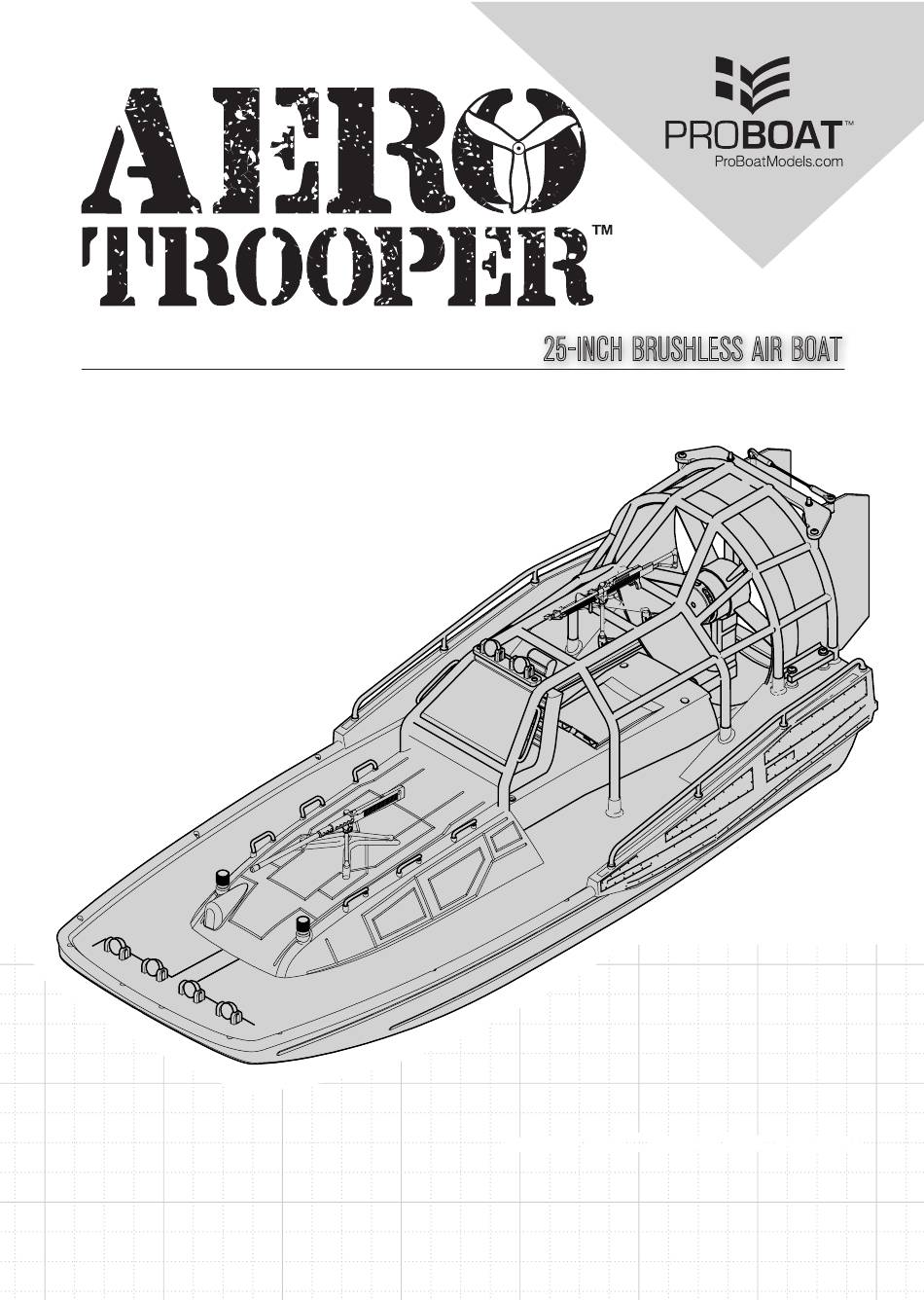

- Page 1 Box logo 25 - INCH BRUSHLESS AIR BOAT PRB08034 Instruction Manual • Bedienungsanleitung • Manuel de l’utilisateur • Manuale dell’utente Boat logo Battery and Charger Not Included...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. -
Page 3: Table Of Contents
General Precautions CAUTION: Always keep hands, fingers, tools and any loose or hanging objects away from rotating parts. • Read the WET CONDITIONS MAINTENANCE procedures • Remove the battery pack(s) and dry the contacts. If you and make sure that you have all the tools you will need to have an air compressor or a can of compressed air, blow properly maintain your boat. -
Page 4: Box Contents
1. Wipe the boat surface with a clean, microfiber cloth. 2. Wipe the boat surface with rubbing alcohol, and customize the Aero Trooper with the included decals. Tip: Refer to the boat pictured on the box for inspiration when customizing your boat. -
Page 5: Antenna Tube Installation
Antenna Tube Installation Install the receiver antenna in the tube as shown. Do not bend the end of antenna over the antenna tube and place the cap over it or damage may result. The antenna does not have to be outside of the tube to operate properly. -
Page 6: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) The factory default setting for the LVC in the ESC included with The average run time—using the recommended batteries your boat is set at 3.2V per cell. Discharging a Li-Po battery (DYNB3803EC or DYNB3804EC)—is between 5–7 minutes at below 3V per cell may damage your battery. -
Page 7: Testing Your Boat In The Water
Testing Your Boat in the Water 1. Carefully place the boat in the water. 2. If the boat does not go straight, adjust the steering trim dial on the transmitter. 3. Return the boat to shore when it begins to slow or when LVC activates. -
Page 8: After Boating And Maintenance
After Boating and Maintenance • After each use, remove the drain plug and hold the boat NOTICE: When you are finished boating, never leave the upright to drain all water from inside the hull. boat in direct sunlight or in a hot, enclosed area such as a car. -
Page 9: Esc Programming Procedure
ESC Programming Procedure 1. Pull and hold the Throttle Trigger to full throttle and turn 4. After selecting a programmable item, you will hear several the ESC on. tones in a loop to indicate Programmable Values. Pull Throttle Trigger to full throttle to select the value matching 2. -
Page 10: Replacing The Propeller
Replacing the Propeller To replace the propeller: Tip: Lightly pull away from the boat by the propeller while loosening it to keep the propeller nut captured in the 1. Ensure that the ESC is disconnected from the battery. propeller, as you loosen it. 5. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Remove motor and apply penetrating oil to both Boat will not respond ends of the motor. Rotate the motor shaft by hand to throttle but responds Wet motor causes bearings to seize to break the corrosive bond between the motor to other controls shaft and the bearings Extra noise or extra... -
Page 12: Limited Warranty
Limited Warranty or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website What this Warranty Covers at www.horizonhobby.com, submit a Product Support Inquiry, or Horizon Hobby, LLC, (Horizon) warrants to the original purchaser call the toll free telephone number referenced in the Warranty and that the product purchased (the “Product”) will be free from... -
Page 13: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/RequestForm/ (Repairs and Repair Requests) productsupport@horizonhobby.com United 1608 Interstate Dr. Horizon Product Support States of Champaign, Illinois, (Product Technical Assistance) 877-504-0233 America 61822 USA websales@horizonhobby.com Sales 800-338-4639... -
Page 14: Replacement Parts
Laser Laser température avec laser puntamento laser Start Up Tool Set: DYNT0502 Anfänger-Werkzeugsatz Set d’outils de démarrage Set attrezzi Proboat Li-Po-Zelle Testeur de tension Strumento controllo EFLA111 LiPo Cell Voltage Checker Spannungsprüfer d’élément Li-Po voltaggio batterie LiPo 9KG Servo, WP, Metal... - Page 15 57045 Created: 08/2018 ©2018 Horizon Hobby LLC. Pro Boat, the Pro Boat logo, Aerotrooper, Tazer, Dynamite and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners. Patents pending.
