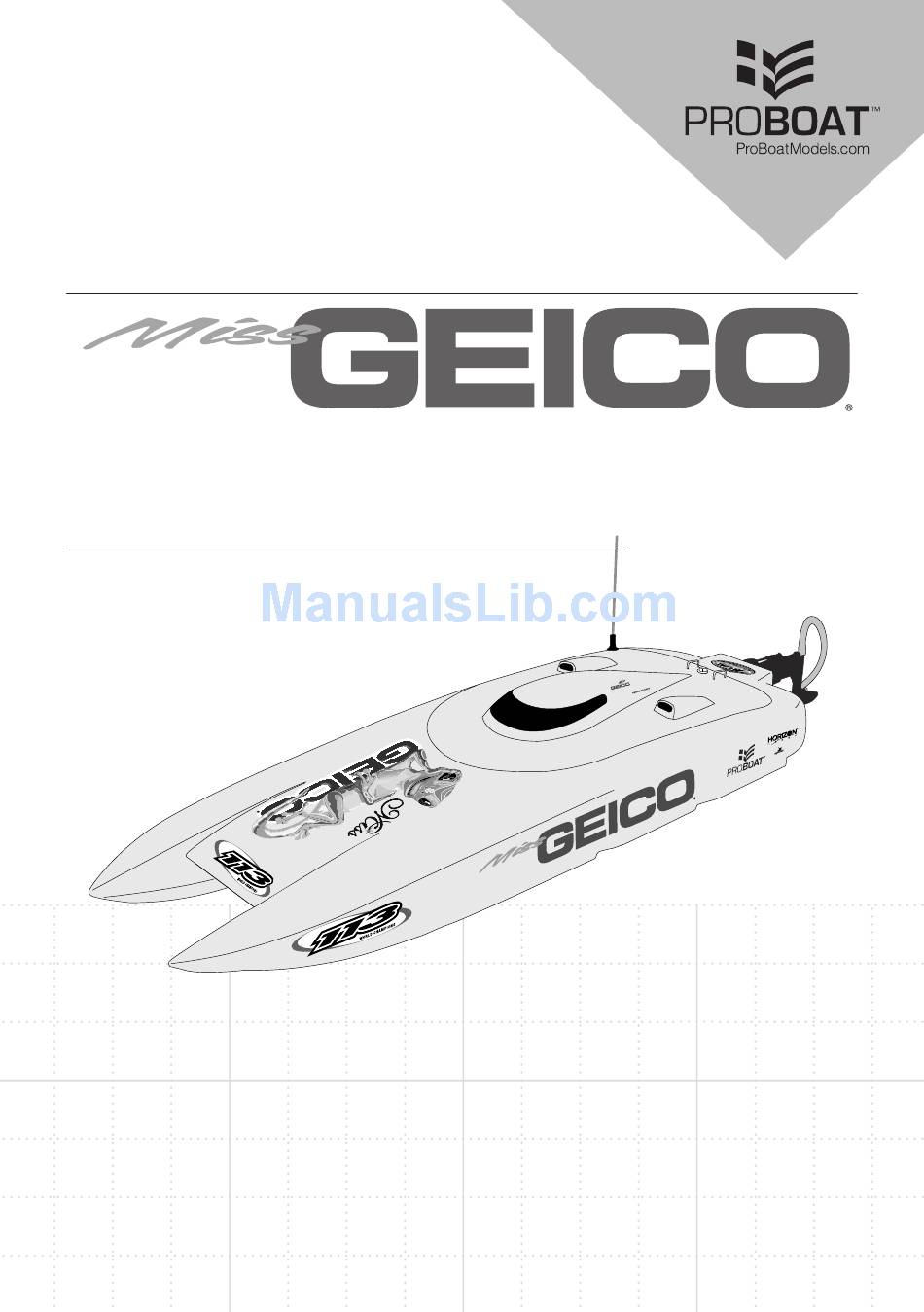

- Page 1 Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente PRB4100B...
-
Page 2: Table Of Contents
NOTICE WARNING: Read the ENTIRE instruction All instructions, warranties and other collateral manual to become familiar with the features of the documents are subject to change at the sole product before operating. Failure to operate the discretion of Horizon Hobby, Inc. For up-to-date product correctly can result in damage to the product literature, visit www.horizonhobby.com product, personal property and cause serious injury. -
Page 3: Introduction
Introduction Pro Boat® RC models look as good as they perform. Our boats, which include everything from scale sailboats to fully licensed powerboats, exceed expectations and provide years of radio control fun and excitement. Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. -
Page 4: Battery Chemistry Switch
Battery Chemistry Switch This switch allows the ESC to detect voltage. When the At the factory, the ESC is programmed at High Cutoff. switch is in the OFF position, low voltage cutoff (LVC) High Cutoff: The Ni-MH cutoff voltage is .9 volts per is disabled. -
Page 5: Transmitter Battery Installation
Transmitter Battery Installation This transmitter requires 4 AA batteries. 1. Remove the battery cover from the transmitter. 2. Align the battery polarity with the markings in the compartment and install the batteries. 3. Install the battery cover. Transmitter Controls Reverse Switch Allows you to change the BIND... -
Page 6: Getting Started
Getting Started 1. Power on the transmitter. 6. After launching the boat in the water, start driving 4. Power on the ESC switch. slowly, and, if the boat does not go straight, adjust 2. Turn ON the Li-Po battery 5. Do a test of the transmitter’s the steering trim dial on the transmitter. -
Page 7: Binding
Binding 4. Release the bind button when the green LED flashes. Binding is the process of programming the receiver to Bind Button recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The DX2E and MR200 are bound at the factory. If you need to rebind, follow the BIND instructions below. -
Page 8: Center Of Gravity
Center of Gravity 2. Move the batteries toward the front of the boat for Moving the batteries to the front or back of the faster initial acceleration to eliminate oscillation or compartment can significantly affect the boat's bouncing, and to increase stability. performance. -
Page 9: Maintenance
Maintenance 4. Carefully reinstall the flex shaft in the drive strut, Always replace the flex shaft when it is damaged or stuffing box and collet. If the flex shaft is difficult to shows visible wear or injury and property damage may remove or install in the collet, use a flat screwdriver to result. -
Page 10: Esc Factory Settings
Brake: ON or OFF The included ESC programming card (DYNM3821) allows you to quickly program your Dynamite® Marine Brushless ON: The boat will stop immediately when the throttle is ESC control settings. returned to neutral. OFF: The boat will coast to a stop. Programmable Settings Timing: Low Timing or High Timing Throttle Reverse: ON or OFF... -
Page 11: Checklists
Checklists Before Boating After Boating • Install fully charged batteries in your boat and • Always power off the receiver before powering off transmitter the transmitter to maintain control of the boat and to retain transmitter binding • Connect the boat’s battery to the ESC • Disconnect the battery from the receiver and remove • Make sure the boat is bound to the transmitter the batteries from the boat... - Page 12 Troubleshooting Guide Boat will not connect Transmitter is too near boat during Move powered transmitter a few feet from boat, (after binding) to connecting process disconnect and reconnect battery to boat transmitter Boat or transmitter is too close to large Move boat or transmitter away from large metal metal object, wireless source or an- object...
-
Page 13: Limited Warranty
Limited Warranty What this Warranty Covers as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser Horizon Hobby, Inc. (“Horizon”) warrants to the original is advised to return the Product immediately in new and purchaser that the product purchased (the "Product") will unused condition to the place of purchase. -
Page 14: Parts Contact Information
Warranty Requirements You must include this request with your item submitted for service. Non-warranty service estimates will be billed For Warranty consideration, you must include a minimum of ½ hour of labor. In addition you will be your original sales receipt verifying the proof-of- billed for return freight. -
Page 15: Fcc Information
FCC Information Antenna Separation Distance When operating your Spektrum transmitter, please be This device complies with part 15 of the FCC rules. sure to maintain a separation distance of at least 5 cm Operation is subject to the following two conditions: between your body (excluding fingers, hands, wrists, (1) This device may not cause harmful interference, and ankles and feet) and the antenna to meet RF exposure... -
Page 16: Identification Of Components
Identification of Components / Identifizierung der Komponenten Identification des composants / Identificazione dei componenti Miss Geico 29... -
Page 17: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio PRB3835 1500Kv BL Motor PRB3307 Motor Mount PRB4107 Flex shaft PRB4109 Prop Nut PRB4113 Flex shaft Liner PRB0151 Propeller, plastic PRB4111 Rudder Pushrod Set: MG29 PRB4012 Antenna Tube DYN3900 Digital Servo PRB4106... - Page 18 32596 Printed: 7/2012 ©2012 Horizon Hobby, Inc. Pro Boat, DSM, DSM2, Dynamite, Speedpack, Prophet, EC3, the Pro Boat logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks or logos are property of their respective owners.
