Summary of Contents for ProBoat Springjet PRB08045

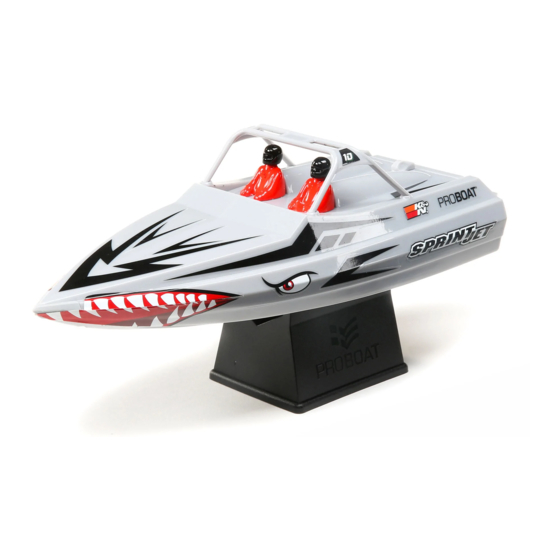

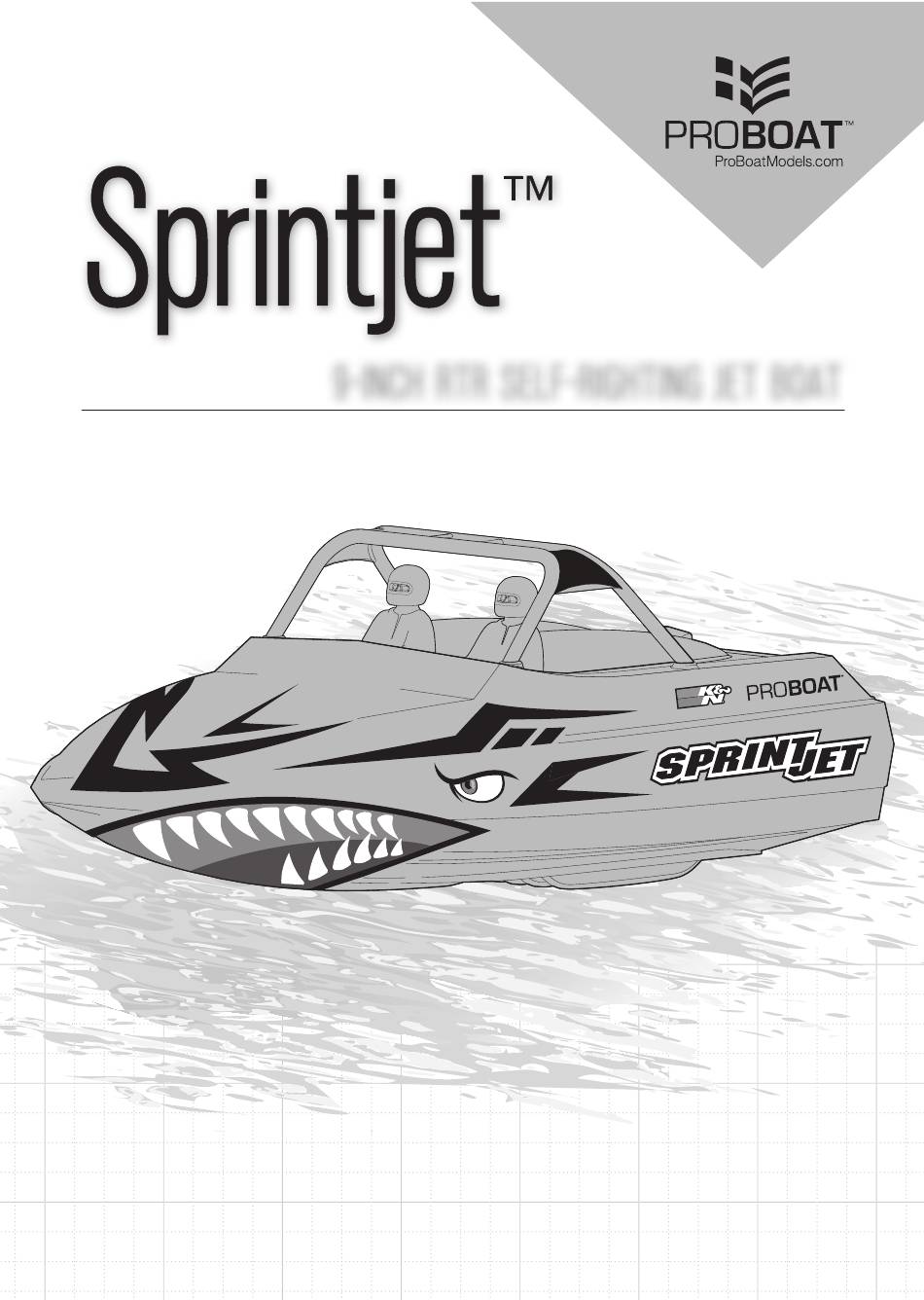

- Page 1 9 - INCH RTR SELF INCH RTR SELF - RIGHTING JET BOAT RIGHTING JET BOAT PRB08045 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi... -
Page 3: Table Of Contents
Wet Conditions Maintenance • Drain any water that has collected in the hull by removing the NOTICE: Never use a pressure washer to clean your boat. drain plug or canopy and tilting the boat in the appropriate • Use an air compressor or a can of compressed air to dry the direction to drain the water. -
Page 4: Box Contents
Box Contents ® ™ • Pro Boat Sprintjet 9-Inch RTR Self Righting Jet Boat ® • Pro Boat 2.4GHz Transmitter (HRZ00001) ® • Pro Boat 3-in-1 ESC/Receiver (HRZ00005) ® • Pro Boat Servo (PRB18033) ® • Dynamite 7.4V 600mAh 2S 20C Li-Po Battery (DYNB6223) •... -
Page 5: Charging Warnings
Charging Warnings • Always charge batteries away from flammable materials. CAUTION: All instructions and warnings must be followed • Always inspect the battery before charging. exactly. Mishandling of Li-Po batteries can result in a fire, • Always disconnect the battery after charging, and let the charger personal injury and/or property damage. -
Page 6: Transmitter
Transmitter Steering Wheel Controls direction (left/right) of the model Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model ON/OFF Switch Turns the power ON/OFF TH DR/TH Trim Adjusts the throttle trim end points ST DR/ST Trim Adjusts the steering trim end points CH 3 Indicator Lights •... -
Page 7: Adjusting The Dual Rates
Adjusting the Dual Rates The transmitter allows you to adjust steering and throttle dual rates. Steering Dual Rate: Throttle Dual Rate: 1. Power ON the transmitter. 1. Turn ON transmitter. 2. Power ON the boat. 2. Turn ON the boat. 3. -
Page 8: Testing Your Boat In Water
Testing Your Boat in the Water 1. Carefully place the boat in the water. 2. If the boat does not go straight, adjust the steering trim dial on the transmitter. 3. Retrieve the boat when it begins to lose speed. 4. -
Page 9: When You Are Finished
Doing so can • Repair any damage or wear to the boat. damage the boat. • Lubricate the driveshaft using ProBoat Marine Grease (DYNE4200). • Make note of lessons learned from the trimming of your boat, including water and wind conditions. -
Page 10: Drivetrain Lubrication
Drivetrain Lubrication 1. Use a #1 Phillips screwdriver to remove the 4 screws from the jet screws from the jet pump nozzle. 2. Use a 1.5mm hex wrench to loosen the set screws on the motor ews on the motor shaft coupler. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Remove motor and apply penetrating oil to both ends of Wet motor causes bushings to seize the motor. Rotate the motor shaft by hand to break the Boat will not respond corrosive bond between the motor shaft and the bushings to throttle but responds to other controls Remove the jet pump nozzle, remove debris and verify that... -
Page 12: Limited Warranty
Limited Warranty What this Warranty Covers that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the the toll free telephone number referenced in the Warranty and Service Contact product purchased (the "Product") will be free from defects in materials and Information section to speak with a Product Support representative. -
Page 13: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/RequestForm/ (Repairs and Repair Requests) productsupport@horizonhobby.com United States of Horizon Product Support 2904 Research Rd America (Product Technical Assistance) Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales 888-338-4639... -
Page 14: Replacement Parts
Optional Parts / Diverse Teile / Pièces optionnelles / Pezzi opzionali Part # English Deutsch Français Italiano DYNT0502 Start Up Tool Set: Proboat Anfänger-Werkzeugsatz Set d’outils de démarrage Set attrezzi Testeur de tension d’élément Strumento controllo EFLA111 LiPo Cell Voltage Checker Li-Po-Zelle Spannungsprüfer... - Page 15 60742 Created: 06/2019 ©2019 Horizon Hobby LLC. Pro Boat, the Pro Boat logo, Sprintjet, Dynamite and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
Need help?
Do you have a question about the Springjet PRB08045 and is the answer not in the manual?
Questions and answers
The grub screws in the sprintjet 9 brass motor to impeller coupler have seized. The 1.5 mm Allen key is slipping. Any ideas on how to proceed. It’s only weeks old and the grub screws are incredibly tight. I used a new 1.5 hex drive.
Use a 1.5mm hex wrench to loosen the set screws on the motor shaft coupler. If the screws are seized, apply penetrating oil and allow it to soak before attempting to loosen them again.
