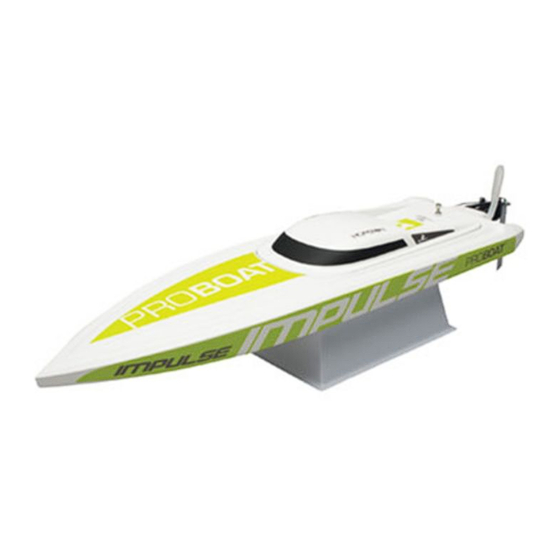

- Page 1 Owners Manual • Bedienungsanleitung Manuel de l'utilisateur • Manuale dell'utente PRB08020 PRB08020i PRB08020AU PRB08019 PRB08019i PRB08019AU...
-
Page 2: Table Of Contents
NOTICE WARNING: Read the ENTIRE instruction All instructions, warranties and other collateral manual to become familiar with the features of documents are subject to change at the sole the product before operating. Failure to operate discretion of Horizon Hobby, LLC. For up-to-date the product correctly can result in damage to the product literature, visit www.horizonhobby.com product, personal property and cause serious injury. -
Page 3: Introduction
Introduction Pro Boat RC models look as good as they perform. Our boats, which include everything from scale sailboats to ® fully licensed powerboats, exceed expectations and provide years of radio control fun and excitement. Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. -
Page 4: Specifications
Specifications Impulse ™ Length 17 in (430mm) Battery and Charger 2-channel 2.4GHz Receiver DYNC1009 100mA Wall Charger Beam 5.125 in (130mm) Hull Material ABS Plastic with EC3 ™ Connector Transmitter 2.4GHz Pistol Motor 380 water-cooled DYN1472 6-cell 1200mAh Ni-MH Grip Transmitter Brushed Motor battery 20 Amp Brushed... -
Page 5: Battery Charger
Battery Charger CAUTION: If at any time during the charge process the battery pack(s) becomes hot to the touch, unplug the battery immediately and discontinue the charge process. 1. Connect the battery pack to the charger. 2. Connect the charger to an AC power source. 3. -
Page 6: Transmitter Controls
Transmitter Controls Reverse Switch Battery Level Indicator Solid Red and Green: Battery voltage is good (above 4V). Solid Red: Battery voltage is critically low (below 4V). Replace Allows you to change the direction of transmitter batteries. steering (ST. REV) and throttle (TH. REV) controls (Ensure proper function with a radio system test). -
Page 7: Checking The Radio System
Checking the Radio System 2. Power on the transmitter. 3. Connect a fully charged battery to the ESC. CAUTION: Always keep all body parts, hair and dangling or loose items away from a spinning 4. Power on the ESC. The boat will beep 5 times. propeller, as these could become entangled. -
Page 8: Testing Your Boat In The Water
Testing your Boat in the Water 1. Carefully place the boat in the water. 4. When the boat is moving forward, ensure water flows out of the coolant outlet on the boat. If water 2. Operate the boat at slow speeds near the shoreline. does not flow out of this outlet, remove any blockage Avoid objects in the water at all times. -
Page 9: When You Are Finished
When you are Finished 1. Power off the ESC. 2. Disconnect the battery. 3. Power off the transmitter. 4. Remove the battery from the boat. Tip: Always store the boat open (without the hatch sealed) or moisture may allow mold and mildew to grow in the boat. -
Page 10: Rudder Service
Rudder Service 1. Remove the locknut, screw, breakaway pin and rudder from the mount. IMPORTANT: The pin is designed to break in case of rudder impact. If broken, replace the pin with a wood pin (such as a toothpick). 2. Assemble in reverse order. Propeller Service 1. - Page 11 Reduced run time or Boat battery charge is low Completely recharge battery boat underpowered Boat battery is damaged Replace boat battery and follow battery instructions Blocking or friction on shaft or propeller Disassemble, lubricate and correctly align parts Boat conditions may be too cold Make sure battery is warm before use Battery capacity may be too low Replace battery or use a larger capacity battery...
-
Page 12: Limited Warranty
Limited Warranty What this Warranty Covers Horizon Hobby, LLC (“Horizon”) warrants to the original These terms are governed by Illinois law (without purchaser that the product purchased (the "Product") will regard to conflict of law principals). This warranty gives be free from defects in materials and workmanship at you specific legal rights, and you may also have other the date of purchase. -
Page 13: Contact Information
Warranty Requirements You must include this request with your item submitted for service. Non-warranty service estimates will be billed For Warranty consideration, you must include a minimum of ½ hour of labor. In addition you will be your original sales receipt verifying the proof-of- billed for return freight. -
Page 14: Fcc Information
FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
