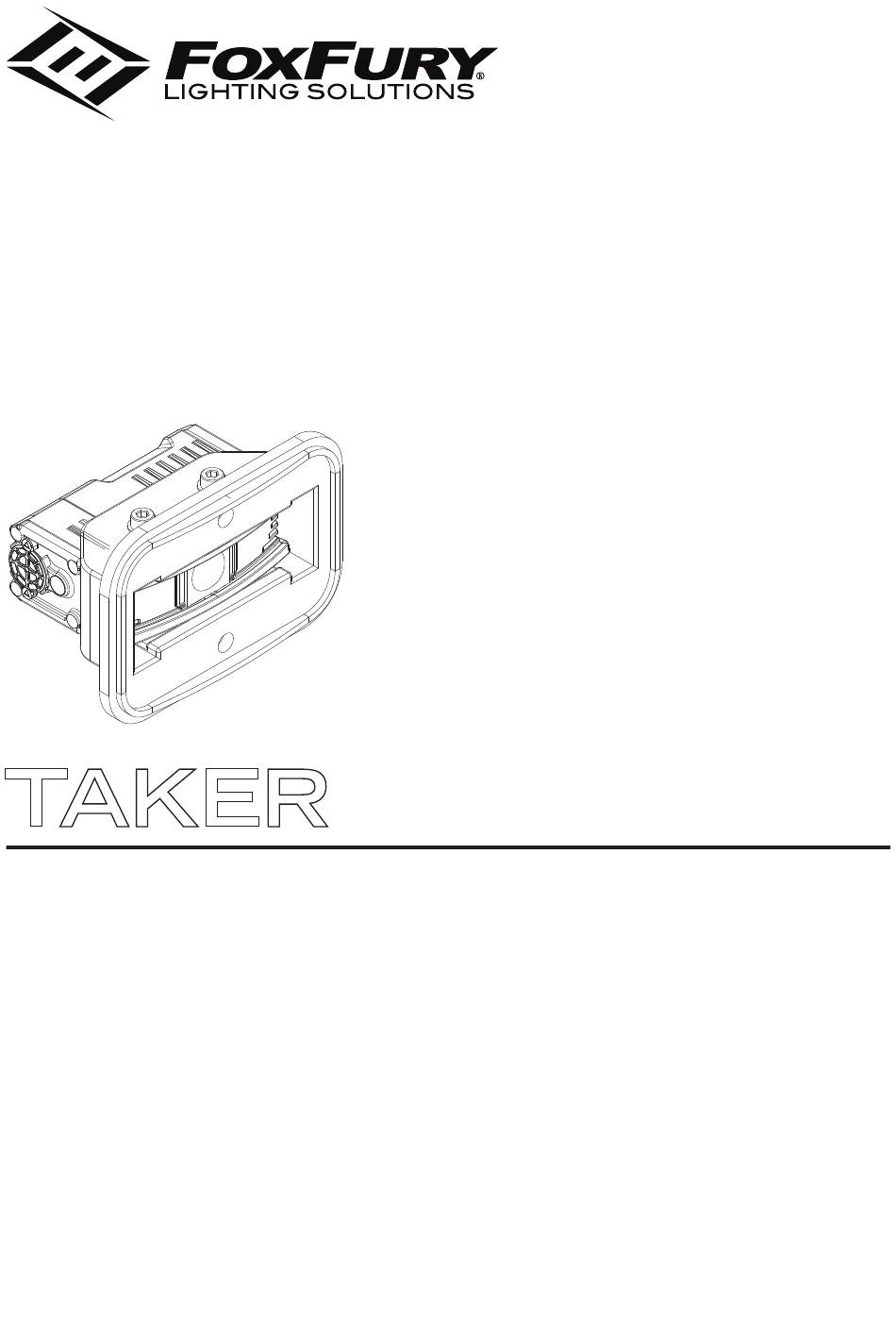

- Page 1 TAKER R40 700-331 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Taker R40 Reference Guide Overview Physical Characteristics & Warnings POWER PACK Charging the Power Pack Reassembling the Taker R40 after Charging Power Pack Life OPERATION Operational Modes SHIELD INSTALLATION Removing the Adaptor Shroud Riot Shield Installation with Bolts... -
Page 3: Taker R40 Reference Guide
TAKER R40 REFERENCE GUIDE FULL ASSEMBL Y (TOP VIEW—POWER/MODE SWITCH VISIBLE) POWER PACK ADAPTOR BOL T (2) SHROUD POWER/MODE SWITCH M6 BOL T HOLES (2) CHARGE INDICATOR CAPTURE ADAPTOR DISASSEMBLED DISASSEMBLED POWER PACK LIGHT HEAD LOCKING LED CONTACT POST CAVITY (2) -
Page 4: Overview
OVERVIEW The Taker R40 is a compact and powerful LED Light, the first of its kind, which has the ability to be fastened to a riot or capture shield, held by hardware or with industrial-strength Reclosable fasteners. Mounted to the inside of the shield, it prevents the light from being grabbed by the opposing force, and gaining control of the shield. -
Page 5: Charging The Power Pack
CHARGING THE POWER PACK Press and hold the Power Pack Release Lever located on the Light Head portion of the Taker R40. While maintaining pressure on the Power Pack Release Lever, pull the Light Head and the Power Pack apart. -
Page 6: Reassembling The Taker R40 After Charging
REASSEMBLING THE R40 AFTER CHARGING Install the Power Pack to the Light Head—confirm position of alignment posts to their respected cavities. Push both halves together. A ‘click’ should be heard as they become locked together. Test the light to make sure that the Power Pack is properly connected to the Light Head by pressing the Power/Mode Switch. -
Page 7: Removing The Adaptor Shroud
REMOVING THE ADAPTOR SHROUD TOP VIEW SIDE VIEW Begin with the R40 in the "Top View" (positioned the same as the "Full Assembly" diagram on pg. 3) and locate the two (2) pre-installed bolts ( ) on the top of the Light Head. Then position the R40 into the "Side View,"... -
Page 8: Riot Shield Installation With Bolts
RIOT SHIELD INSTALLATION INSTALLING THE R40 TO A RIOT SHIELD USING BOL TS INCLUDED HARDWARE M6 Bolts (2) Bolts (2) Washers (8) Nuts (4) RIOT SHIELD Place the shield in FRONT of the R40. (The shield pictured is cut in half for this visual) ADAPTOR SHROUD... -
Page 9: Riot Shield Installation With 3M Reclosable Fastener
RIOT SHIELD INSTALLATION INSTALLING THE R40 TO A RIOT SHIELD USING THE 3M RECLOSEABLE FASTENER ADAPTOR INCLUDED HARDWARE Bolts (2) Washers (2) Nuts (2) CAPTURE ADAPTOR (REMOVE THIS!) RIOT SHIELD Place the shield in FRONT of the R40. (The shield pictured is cut in half for this visual) ADAPTOR SHROUD... -
Page 10: Capture Shield Installation
CAPTURE SHIELD INSTALLATION INCLUDED HARDWARE M6 Bolts (2) Bolts (2) Washers (8) Nuts (4) CAPTURE SHIELD Place the shield in FRONT of the R40. (The shield pictured is cut in half for this visual) ADAPTOR SHROUD CAPTURE ADAPTOR FRONT OF SHIELD Drill two (2) holes in the riot shield using the included Drilling Template on pg. -
Page 11: Maintenance
MAINTENANCE REPLACING THE O-RING (P/N 51-112) “O”-RING RETAINING TAB Separate the Power Pack from the Light Head (follow steps 1–2 in the “Charging the Power Pack” section on page 5). Using a #2 Phillips head screwdriver (not included) remove the screw from the Light Head (reference “Disassembled Light Head”... -
Page 12: Warranty
IPX7 20 M range (less than 2 ft). FoxFury, LLC is not responsible PRODUCT NAME: Taker R40 for any injury or damage caused MODEL NUMBER: 700-331 during the use of this product. ADAPTOR INPUT : AC 100-240V,... -
Page 13: Contact Foxfury
refurbished product by someone Products are assembled in either other than FoxFury) prior to your FoxFury’s controlled plant in Asia or purchase, you are not the Original the USA, under strict quality control. Purchaser and the product that you purchased is not covered by this warranty . - Page 14 NOTES...
-
Page 15: Drilling Template
FOR USE WITH THE TAKER R40 (P/N 700-331) INSTRUCTIONS INSTRUCTIONS: Use this template to drill the required holes for mounting the Taker R40 to a Use this template to drill the required holes for mounting riot shield. the Taker R40 to a Riot shield. - Page 16 FOXFURY .COM 10/2018...
