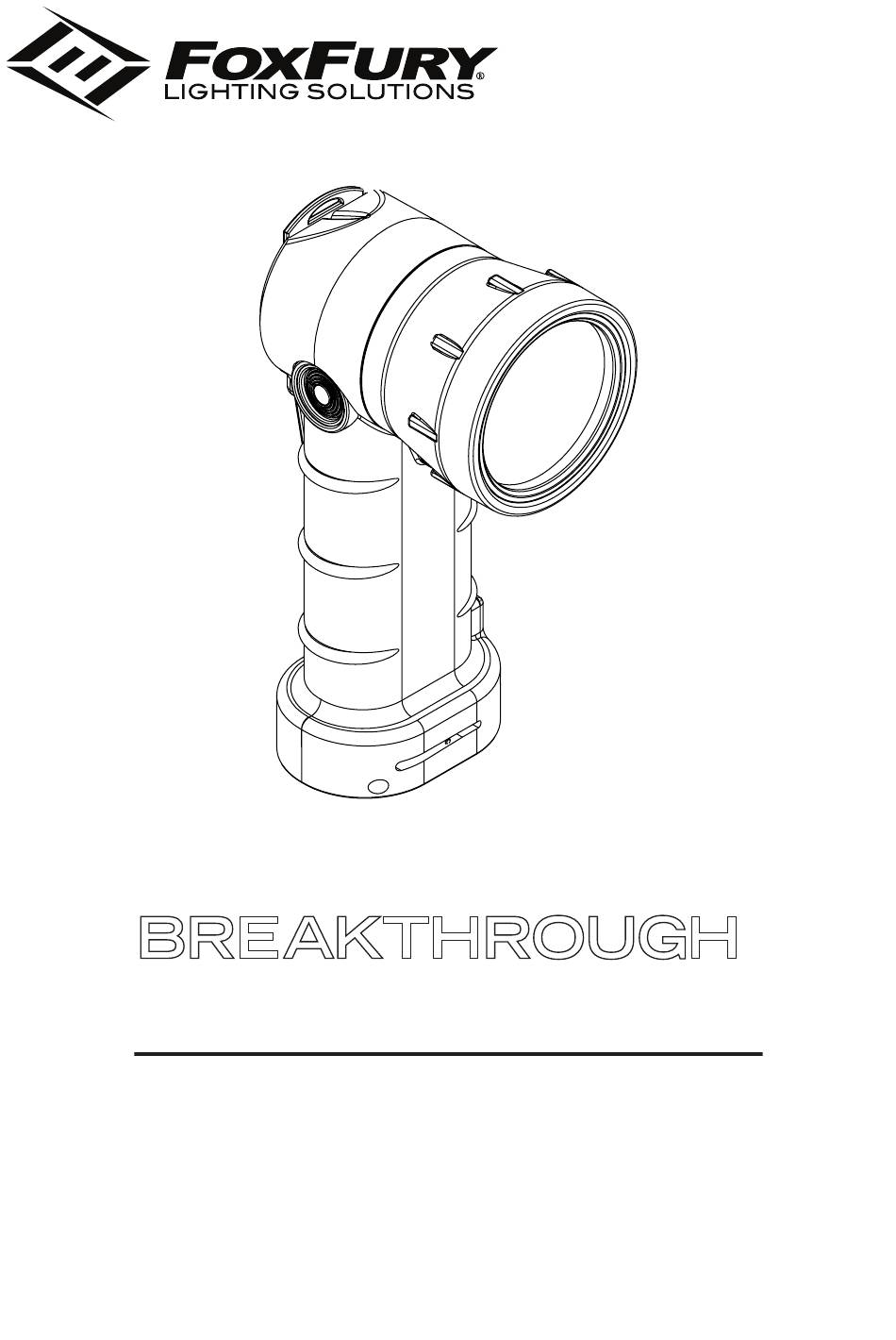

- Page 1 BT2-IS BREAKTHROUGH ® INTRINSIC SERIES 380-FF01-BT2-BL PRODUCT MANUAL...
- Page 2 BT REFERENCE GUIDE BACK* FRONT POWER/MODE SWITCH BLACK D-RING HOLE FACECAP CHARGING PORT STAINLESS STEEL CLIP BATTERY CHARGING INDICATOR BATTERY DOOR HINGE BATTERY DOOR LOCK HOLE BATTERY DOOR (BOTTOM VIEW) LOCKING MECHANISM UNLOCKED LOCKED BATTERY PACK RELEASE BATTERY BUTTON DOOR BATTERY PACK ALSO INCLUDED...
-
Page 3: Physical Characteristics
OVERVIEW The FoxFury Breakthrough® BT2 Intrinsically Safe Hybrid Right Angle Light features a 200 lumen UltraReach beam and is designed for use in hazardous locations. This intrinsically safe search tool has a UL913 rating, Class I, Zone 0, AEx ia IIC T5 and IECEx rating: Ex ia IIC T5 Ga. Compact 2 degree beam outperforms most box light and high powered flashlights. -
Page 4: Battery Information
BATTERY INFORMATION The BT Intrinsic Series requires four (4) AA batteries. Acceptable battery types include: Duracell Coppertop AA 1.5v Alkaline, MN1500; Duracell Plus Power AA 1.5v Alkaline, MN1500; Energizer Industrial AA 1.5v Alkaline, EN91; Energizer AA 1.5v Alkaline, E91 Acceptable rechargeable NiMH battery types include: Duracell AA 1.2v NiMH, DC 1500 HR6 BATTERY WARNINGS Potential electrostatic charging hazard. -
Page 5: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT BACK FRONT LOCKING BATTERY MECHANISM HOLDER RELEASE BUTTON USE HEX KEY IN BATTERY DOOR LOCK HOLE Turn the Locking Mechanism (located on the Battery Door) counter- clockwise. Pull the Battery Door straight out, away from the Light Body . NOTE: The Battery Door will remain attached to the Light Body . -
Page 6: Operational Modes
NOTE: Make sure the Battery Door is properly closed to maintain a water tight seal. For added protection, the Battery Door can be secured with a secondary lock (Battery Door Lock Hole) by use of the provided Hex Key . Test the light’s performance by activating the Power/Mode Switch located on the right hand side of the light. - Page 7 NOTES...
-
Page 8: Warranty And Other Information
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY with soaked cotton swab or cloth. Let soak for 5 minutes. 4. Clean fluid from inside the battery pack and dry it properly with a paper IPX7 towel, and a blow dryer (make sure no liquid residue is left inside battery Meets requirements of NFPA 1971- pack). -
Page 9: Limited Lifetime Warranty
To prevent ignition of flammable Purchaser and the product that you or combustible atmosphere, purchased is not covered by this disconnect power before warranty . This limited warranty is servicing. VOID if this Product has been altered or modified in any way (including but If the unit is dropped from a not limited to attempted warranty height greater than 8 ft / 2.4... - Page 12 FOXFURY .COM 1/2019...
