Foxfury Lighting Solutions SCOUT J SERIES Product Manual

Please read below before using your Scout as it relays
beneficial operating and safety information for all models.
P/N
301-010 Scout JBK White LED Clip Light
301-004 Scout JBK White & Red LED Clip Light
302-010 Scout JOR White LED Clip Light
302-004 Scout JOR White & Red LED Clip LIght
Scout 470nm Blue Forensic Light
301-312
Scout 495nm Cyan Forensic Light
301-313
Scout 525nm Green Forensic Light
301-314
BATTERIES
The Scout Series requires three (3) AA batteries.
Acceptable battery types: Alkaline (recommended) or
Rechargeable (1.5V–1.7V)
Mixing of new and used, or different brand batteries
is not recommended as this could lead to leakage or
explosion.

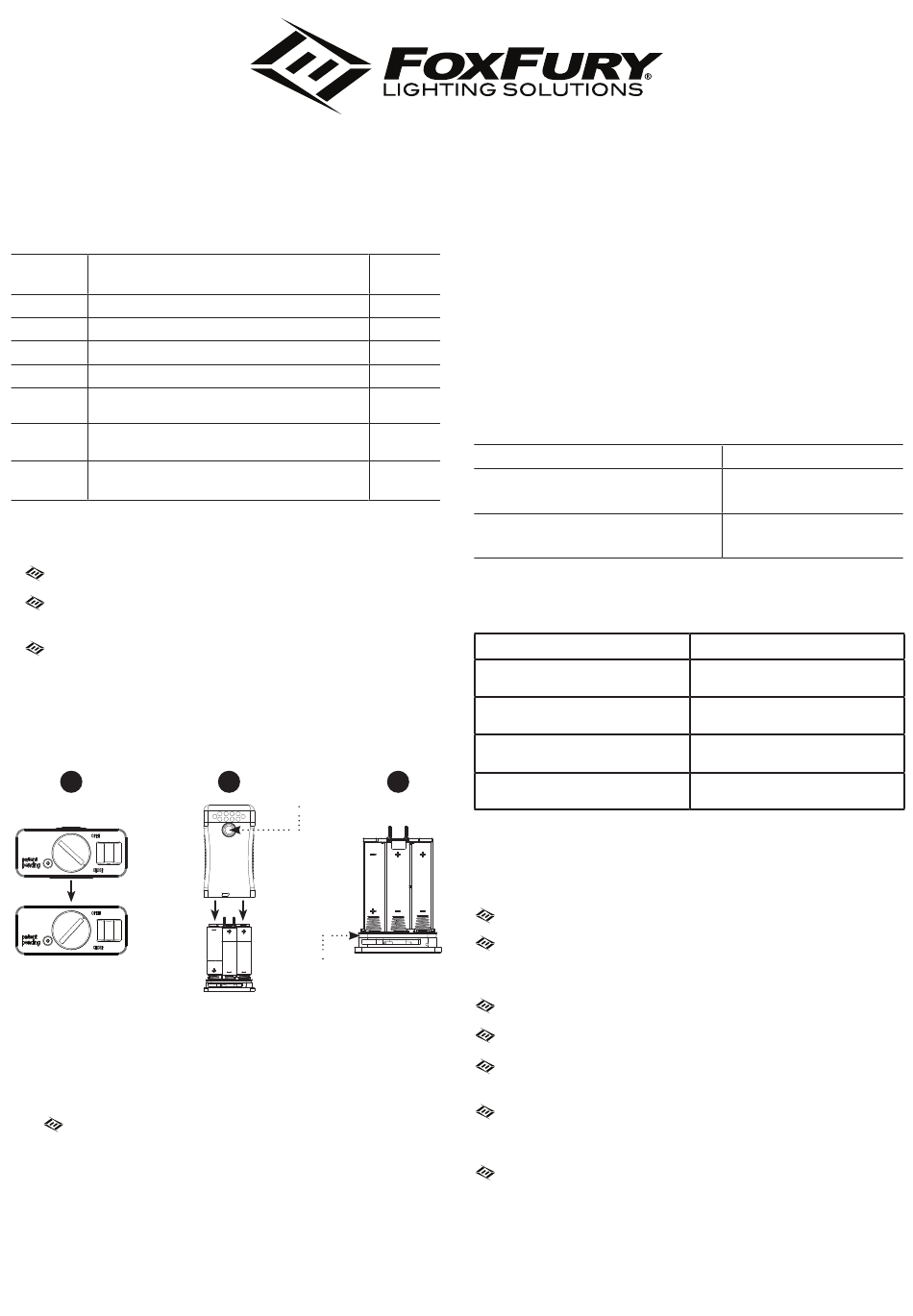

BATTERY INSTALLATION & REPLACEMENT
1
1. On the Battery Holder, turn the locking mechanism
to the "Open" position (using a coin or large flat
screwdriver to do this may help).
2. Pull the Battery Holder away from the Light Body .
In order to overcome the seal you may want to
use a large flat screwdriver to help separate the
Battery Holder from the Light Body , as the seal is
rather tight, especially for the first use.
3. Install batteries inside the Battery Holder following
polarity markings.
NOTE: Remove the plastic tab from inside the Battery
Holder before use.
4. Reinsert the Battery Holder into the Light Body .
SCOUT J SERIES PRODUCT MANUAL
NAME
System
System
System
2
POWER/MODE
SWITCH
"O"-RING
5. Turn the Locking Mechanism back to the "Close"
position.
6. Test the Scout's performance by activating the Power/
CASE
Mode Switch, located at the upper middle portion of
COLOR
the front face of the Light Body (just below the LEDs).
Black
NOTE: Inspect the "O"-Ring (located near the base of the
Black
Battery Holder) every time you replace batteries. The
Orange
"O"-Ring is necessary to create a water seal.
Orange
BATTERY LIFE
Black
P/N 301-010, 301-312, 301-313, 301-314
Black
BATTERY LIFE
Black
*Battery life may vary according to mode selected, battery quality and
prevailing ambient conditions.
P/N 301-004, 302-004
BATTERY LIFE
12 HOURS
20 HOURS
50 HOURS
3
60 HOURS
OPERATIONAL MODES
FOR P/N 301- 010 & 302- 010:
LOW mode: 1 click, outer 2 LEDs ON
ALL LEDs: 2 clicks, all 10 LEDs ON
FOR P/N 301-004 & 302-004:
RED LEDs ONL Y: 1 click, bottom 4 red LEDs ON
WHITE LEDs ONL Y: 2 clicks, top 6 white LEDs ON
AL TERNATING FLASH mode: 3 clicks, alternating
white & red LEDs
ALL LEDs: 4 clicks, all 10 LEDs ON
FOR P/N 301-312, 301-313, & 301-314:
ALL LEDs: 1 click
NOTE: Once all LEDs are ON, power the Scout OFF by
clicking the Power/Mode Switch once. Then repeat steps
for desired mode.
12 HOURS
50 HOURS
WHITE LEDS ONL Y
ALTERNATING FLASH
MODE
HIGH
LOW
MODE
ALL LEDS
RED LEDS ONL Y
