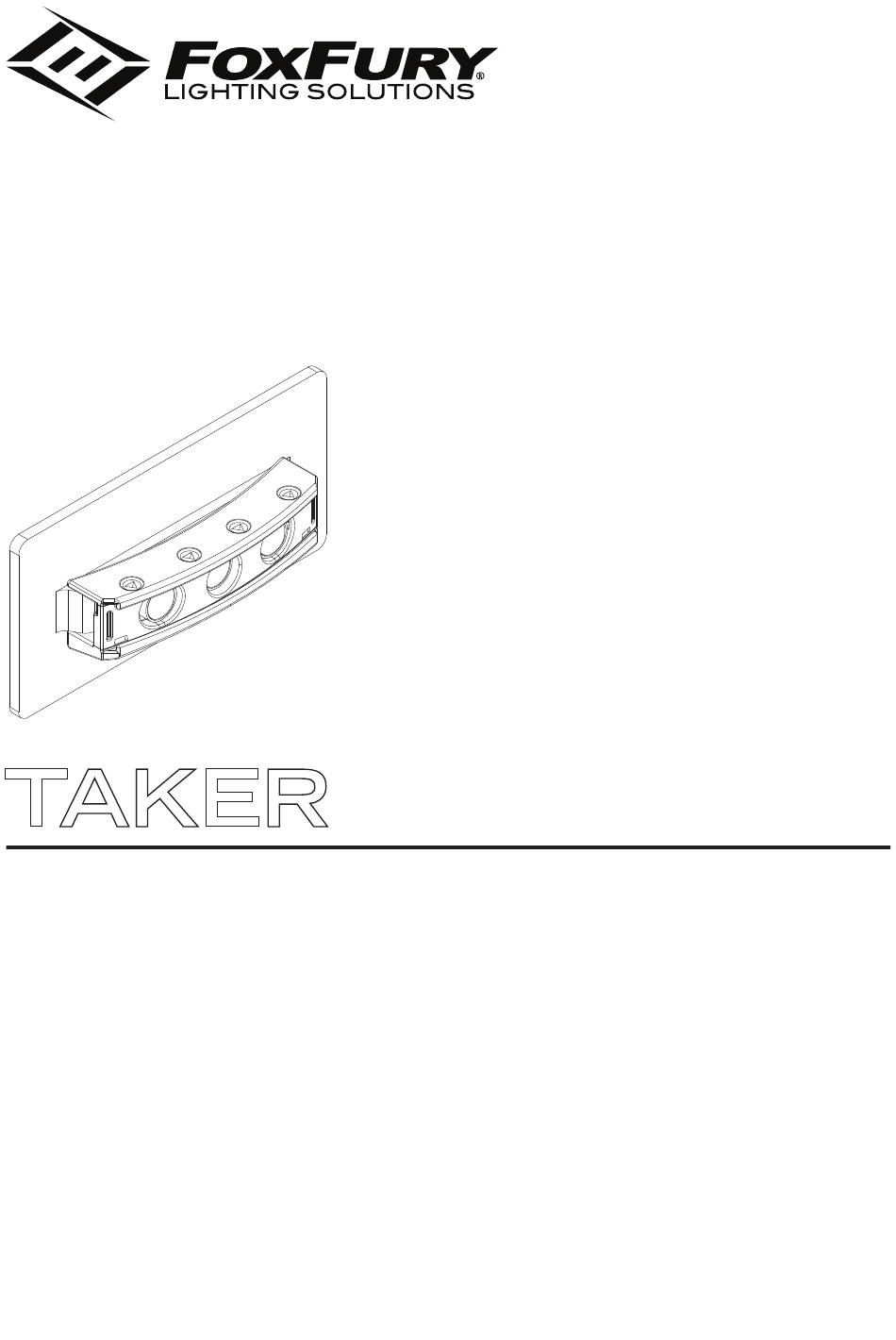

- Page 1 TAKER B30 480-331 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Taker B30 Reference Guide Physical Characteristics & Warnings BATTERY Battery Installation and Replacement Reassembling the Battery Compartment Battery Life OPERATION Operational Modes FEATURES Kill Switch Pressure Switch Replaceable Lens Heavy Duty Braided Cable Dual Settings Retrofit... -
Page 3: Taker B30 Reference Guide
TAKER B30 REFERENCE GUIDE SHIELD LIGHT REPLACEABLE LENS LEDs (3) BATTERY COMPARTMENT (BACK SIDE—PLACED AGAINST SHIELD) POWER/KILL CLOSING SWITCH BUCKLES (4) VELCRO PLACEMENT CABLE ENTRY LOCATION CONNECTING THE BATTERY COMPARTMENT PRESSURE SWITCH PRESSURE SWITCH CONNECTOR LIGHT HEAD CONNECTOR... -
Page 4: Physical Characteristics & Warnings
PHYSICAL CHARACTERISTICS Please read below before using the Taker B30 as it relays beneficial operating and safety information. SHIELD LIGHT (P/N 480-331) DIMENSIONS (LXWxH) 3.9 x 1.9 x 0.9 in (100 x 50 x 23 mm) Without Battery: 11.2 oz (318 g) WEIGHT With Battery: 15.2 oz (431 g) -
Page 5: Battery
BATTERIES The Taker B30 uses three (3) or six (6) CR123 batteries. As long as there are at least three (3) installed, (either on the left or right side), the light will function. Using three (3) CR123 batteries decreases the battery life by half, but does not effect the light intensity . -
Page 6: Battery Life
BATTERY LIFE MODE BATTERY LIFE LUMENS MOMENTARY 5 hours CONTINUOUS ON 5 hours TURBO-STROBE™ 8 hours *Battery life may vary according to mode selected, battery quality and prevailing ambient conditions. OPERATIONAL MODES For MOMENTARY mode: Press and hold the Power/Mode Switch. While the Switch is depressed, the light will operate continuously . -
Page 7: Features
FEATURES POWER/KILL SWITCH The Taker B30 has a Power/Kill Switch located on the TOP LEFT of the Battery Compartment. This mechanism is used to shut down or disable the shield light. POWER/KILL SWITCH PRESSURE SWITCH (INCLUDED) The Taker B30 includes a Pressure Switch that allows the user to place it anywhere on the shield. -
Page 8: Replaceable Lens
DUAL SETTINGS The Taker B30 includes two mode settings: the ON/OFF SETTING and the TACTICAL SETTING. The ON/OFF SETTING simply allows the Light Head to turn ON and OFF . The TACTICAL SETTING allows you to choose from three (3) different Operational Modes: Momentary , Continuous On, and Turbo- Strobe™. -
Page 9: Shield Installation
SHIELD INSTALLATION BATTERY COMPARTMENT BALLISTIC SHIELD Place the shield in between the battery compartment and Light Head. (The shield pictured is cut in half for this visual) BRAIDED CABLE LIGHT HEAD Clean the surface of the shield where the Battery Compartment and Light Head will be placed. -
Page 10: Warranty
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY Any FoxFury product should be operated at speeds safe enough to maneuver around surrounding obstacles. Do not use under the influence IPX7 10 M of drugs or alcohol. LIMITED LIFETIME CARE/CLEANING Your FoxFury product is a professional WARRANTY tool. -
Page 11: Contact Foxfury
warranty concerns, we encourage the end user to register their FoxFury Product at www.foxfury .com/pages/ warranty-registration. THIS IS THE ONL Y WARRANTY , EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARE EXPRESSL Y DISCLAIMED EXCEPT WHERE SUCH LIMITATION IS PROHIBITED BY LAW. - Page 12 FOXFURY .COM 10/2018...
