TAKER B70
480-600
PRODUCT MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Foxfury Lighting Solutions Taker B70

Summary of Contents for Foxfury Lighting Solutions Taker B70

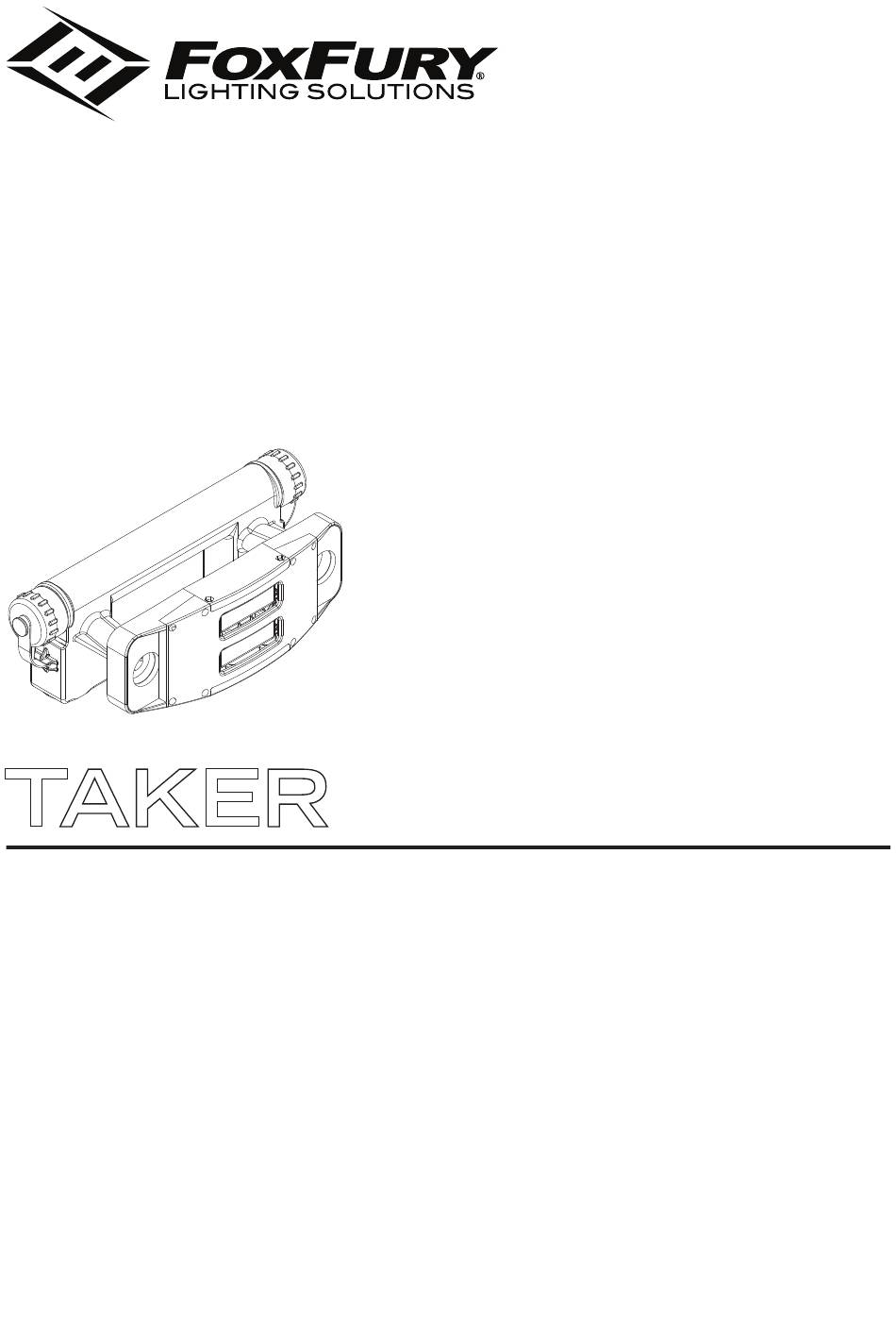

  • Page 1 TAKER B70 480-600 PRODUCT MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Taker B70 Reference Guide Physical Characteristics & Warnings BATTERY Battery Installation and Replacement Battery Life OPERATION Operational Modes FEATURES Ambidextrous Light Activation Pressure Switch Individual LED Rows Dual Settings INSTALLATION Shield Installation Wiring Installation 10-11 WARRANTY 12–13...

  • Page 3: Taker B70 Reference Guide

    TAKER B70 REFERENCE GUIDE SHIELD LIGHT WITH PROTECTIVE COVER ON) LEDs (6) BOLT PROTECTIVE HOLE (2) COVER SCREWS (10) SHIELD LIGHT (WITH PROTECTIVE COVER OFF) WIRE HOLES – – – – PROTECTIVE TERMINAL WIRE LENS (2) BLOCKS (4) THROUGH HOLES (4)

  • Page 4: Physical Characteristics & Warnings

    PHYSICAL CHARACTERISTICS Please read below before using the Taker B70 as it relays beneficial operating and safety information. SHIELD LIGHT (P/N 600-480-300) DIMENSIONS (WxH) 6.3 x 2.5 in (160 x 2.5 mm) WEIGHT 35.2 oz (998 g) HANDLE ONL Y (P/N 60-601) DIMENSIONS (WxH) 5.5 x 4.3 in (127 x 109 mm)

  • Page 5: Battery Installation And Replacement

    BATTERIES The Taker B70 uses three (3) or six (6) CR123 batteries. As long as there are at least three (3) installed, the light will function. Using three (3) CR123 batteries decreases the battery life by half, but does not effect the light intensity .

  • Page 6: Battery Life

    BATTERY LIFE MODE BATTERY LIFE LUMENS MOMENTARY 2 hours 1200 CONTINUOUS ON 2 hours 1200 TURBO-STROBE™ 4 hours 1200 *Battery life may vary according to mode selected, battery quality and prevailing ambient conditions. OPERATIONAL MODES For MOMENTARY mode: Press and hold the Power/Mode Switch. While the Switch is depressed, the light will operate continuously .

  • Page 7: Features

    FEATURES AMBIDEXTROUS LIGHT ACTIVATION The Taker B70 includes two (2) Power/Mode Switches on both the left and right sides of the Handle. This allows users to toggle between modes using either hand. HANDLE (BACK SIDE) POWER/MODE POWER/MODE SWITCH SWITCH PRESSURE SWITCH (INCLUDED) The Taker B70 includes a Pressure Switch that allows the user to place it anywhere on the shield.

  • Page 8: Individual Led Rows

    LEDs to continue functioning if the other row is damaged. DUAL SETTINGS The Taker B70 includes two mode settings: the ON/OFF SETTING and the TACTICAL SETTING. The ON/OFF SETTING simply allows the Light Head to turn ON and OFF . The TACTICAL SETTING allows you to choose from three (3) different Operational Modes: Momentary , Continuous On, and Turbo-Strobe™.

  • Page 9: Shield Installation

    SHIELD INSTALLATION The B70 is intended to be installed as an OEM product, by ballistic shield and armor manufacturers. HANDLE BALLISTIC SHIELD Place the shield in between the Handle and Light Head. (The shield pictured is cut in half for this visual) LIGHT HEAD PROTECTIVE COVER HANDLE...

  • Page 10: Wiring Installation

    WIRING INSTALLATION TERMINAL BLOCK HOLDER – – – – RED WIRE HOLE WIRE SCREWS THROUGH (10) HOLES (4) BLACK WIRE HOLE TERMINAL BLOCK SCREWS...

  • Page 11: Wiring Installation

    Begin with the Light Head and a Phillips Head Screw Driver. There are eight (8) screws located on the front of the Protective Cover, and two (2) screws on the top of the Light Head. Remove all ten (10) screws from the Protective Cover.

  • Page 12: Warranty

    WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY Any FoxFury product should be operated at speeds safe enough to maneuver around surrounding obstacles. Do not use under the influence IPX7 of drugs or alcohol. LIMITED LIFETIME CARE/CLEANING Your FoxFury product is a professional WARRANTY tool.

  • Page 13: Contact Foxfury

    warranty concerns, we encourage the end user to register their FoxFury Product at www.foxfury .com/pages/ warranty-registration. THIS IS THE ONL Y WARRANTY , EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARE EXPRESSL Y DISCLAIMED EXCEPT WHERE SUCH LIMITATION IS PROHIBITED BY LAW.
  • Page 14 FOXFURY .COM 10/2018...
