Summary of Contents for RIKA TOPOII

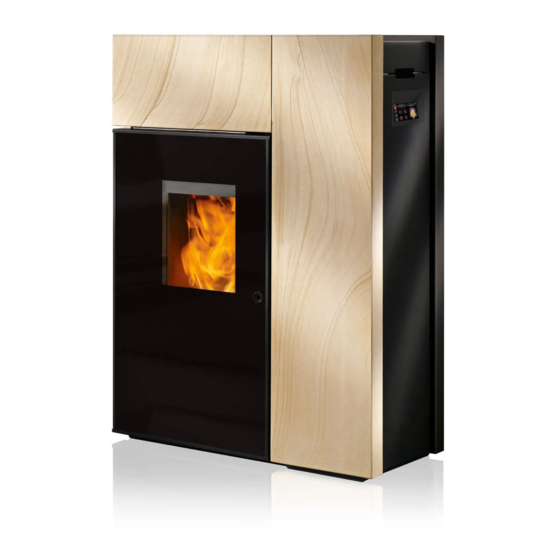

- Page 1 TOPOII/XL Operating Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1. PREFACE Explanations to symbols ...................................3 Spare part overview exploded diagram ..............................4 Spare part overview article numbers .................................6 Dimensions ......................................7 Amount of fuel ......................................7 Technical Data ......................................7 Packaging .........................................7 Electrical connection ....................................7 2. IMPORTANT INFORMATION General warning and safety information ..............................8 First heating......................................8 Safety distances Topo (minimal distance) ..............................8 Safety distances TopoXL (minimal distance) ............................8... -
Page 3: Preface
7. COMFORT OPTIONS Room sensor, Radio room sensor ................................15 GSM Control ......................................15 Interface for various options ...................................15 External room thermostat ..................................15 External connection cable bridge ................................15 Option firenet ......................................15 8. CLEANING AND MAINTENANCE Basic information ....................................16 Open the combustion chamber door ..............................16 Cleaning the fire trough ..................................16 Empty the ash drawer .....................................16 Cleaning the door glass ..................................16... -
Page 4: Spare Part Overview Exploded Diagram
Spare part overview exploded diagram till serial number 260821... -
Page 6: Spare Part Overview Article Numbers
Spare part overview article numbers Nr. Art.Nr. Description Nr. Art.Nr. Description Nr. Art.Nr. Description N108131 Pressure spring Z34401 Shale, top, dark N107887 Fuse holder B15825 Hinge BA1 Z34215 top stone white N110461 Double ball catch Z11915 Lock ring conveyer screw Z33958 Soapstone casing, right B16202... -
Page 7: Dimensions
Dimensions Technical Data Technical data Topo Topo XL Heating power range [kW] 3 - 10 3 - 10 Room heating capacity [m³] 70 - 260 70 - 260 (depending on house insulation) Fuel consumption [kg/h] bis 2,4 bis 2,4 Pellet container capacity* [l/kg] 70/~45 126/~82... -
Page 8: Important Information
2. IMPORTANT INFORMATION General warning and safety information Note CAUTION when filling the supply container. Observance of the introductory general warning information is imperative. The pellet container opening is sufficient to ensure easy filling. Take great care that no pellets drop onto the convection fins and the hot stove body. This Read the entire manual thoroughly before installing and putting the stove into may lead to heavy smoke development. -
Page 9: Prior To Set Up
Prior to set up Stoves type 1 (BA 1): Floor bearing capacity Suitable for multiple occupancy. (Note the different country regulations) Ensure that the substructure is capable of bearing the weight of the stove prior to set-up. These may only be operated with the combustion chamber door closed. Note The combustion chamber door is to be kept closed when the stove is not No modifications may be made to the firing installation. -
Page 10: Brief Information On Fuel Pellets
3. BRIEF INFORMATION ON FUEL PELLETS Your pellet stove is only approved for the burning of pellets of tested quality. What are pellets? Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers. Wood pellets are a standardised fuel. Every manufacturer must adhere to certain conditions in order to enable flawless, energy-efficient heating. -
Page 11: Technology And Safet Y Functions
4. TECHNOLOGY AND SAFET Y FUNCTIONS The technological advances in your new combi stove are the result of years of Automatic cleaning cycle testing and practical experience. The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety. -
Page 12: Installing The Stove
Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). We recommend original flue pipes from RIKA for proper connection. At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range). -
Page 13: Assembly/Dismantling Stone And Options
6. ASSEMBLY/DISMANTLING STONE AND OPTIONS Open the container lid. Note Only work on the unit when the mains plug has been disconnected and the stove has cooled completely. Note During assembly / dismantling do not allow objects (screws etc.) to fall into the pellet container –... -
Page 14: Dismantling The Left Side Trim
Dismantling the left side trim Dismantling the right side trim Open the convection cover so far that the cover securing mechanism locks into Open the container lid. the designated retaining bracket. Remove the hex screw that is used to secure the side panel to the right. Remove the two vertical hexagonal screws which are used to fasten the left side cover. -
Page 15: Comfort Options
7. COMFORT OPTIONS Room sensor, Radio room sensor External room thermostat This option permits control of your stove via room temperature. You can set Your stove has an interface on the rear wall to which you can connect a both the room temperature and the heating times required. A room temperature customary room thermostat. -
Page 16: Cleaning And Maintenance
The number of SERVICE messages is stored in the background. Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer. Note Do not damage the ignition when cleaning with a wire brush. Vacuum out the Only work on the unit when the mains plug has been disconnected. -
Page 17: Cleaning Flue Pipes
Cleaning flue pipes Vacuum the exposed interior space and the side apertures free of any contamination. The flue pipes should be cleaned at least 2 x a year or after approx. 700 kg pellets. The flues are behind the combustion chamber. Open the convection cover so far that the cover securing mechanism locks into the designated retaining bracket. -
Page 18: Cleaning The Flue Blower Casing
Cleaning the flue blower casing To clean the flue pipe connection disconnect the flue pipe from the flue gas fan and vacuum the flue gas fan housing The flue blower should be cleaned at least 2 x a year or after approx. 700 kg pellets. -
Page 19: Problems Possible Solutions
9. PROBLEMS POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame. Pellets heap up in fire trough, window Flue gas discharge when wood is added and during heating phase. soots up. Cause(s) Cause(s) Leaking cleaning openings Insufficient combustion air Chimney draught too low Poor chimney draught Leaking flue pipe connection... -
Page 20: Instructions For Commissioning Protocol
Note points, is a document. Please return 1 completed protocol for putting into service to RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Micheldorf, Austria. Warranty terms Difference between warranty (statutory) and guarantee (voluntary), terms of guarantee, determination of wearing parts, reference to pellet quality to be Electrical periphery used and the consequences of poor quality. - Page 21 Please contact your warranty partner for any warranty questions or claims. This is your dealer or installation company. No warranty claims can be accepted without proper putting into operation, proper operation according to the operating instructions and the supplements in this information sheet. Protocol for putting into operation for RIKA pellet and combi stoves Date:____________________...
-
Page 22: Warrant Y
In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation the claimant is required to file the warranty claim with the RIKA dealer in writing, submitting the invoice and stating the purchase date, model name, serial number and reason for complaint. - Page 24 In case of doubt as well as missing or incorrect translations, the German version is the only valid one. Technical and design changes, as well as typesetting and printing errors reserved. © 2018 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at...
