ADUO
ADUO MULTI AIR
Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for RIKA ANIMO ADUO

Summary of Contents for RIKA ANIMO ADUO

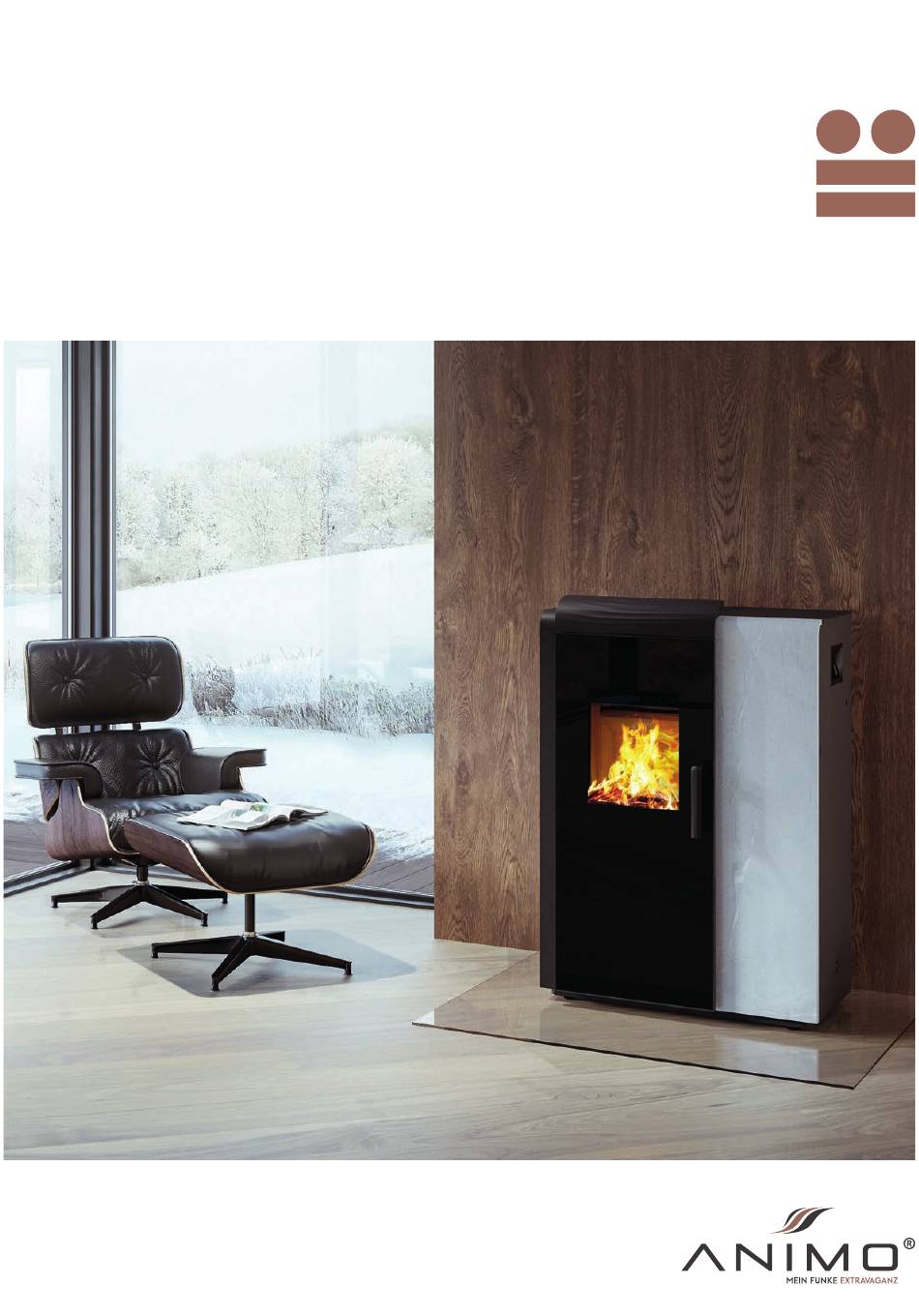

  • Page 1 ADUO ADUO MULTI AIR Operating Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE Explanations to symbols .......................................3 Spare part overview - exploded diagram ...............................4 Spare part overview - article numbers ................................8 Dimensions ADUO ........................................ 10 Amount of fuel ........................................10 Technical data ADUO ......................................10 Packaging ........................................... 10 Electrical connection ......................................

  • Page 3: Preface

    7. DISMANTLING STONE Dismantling stone ........................................18 8. FLUE GAS FLAP Start of operation........................................19 Easy-refilling operation ......................................19 9. FLOW DIAGRAM PELLET - LOG OPERATION 10. MAINTENANCE Cleaning the fire trough - daily ..................................21 Cleaning the flame temperature sensor ............................... 21 Empty the ash drawer ......................................

  • Page 4: Spare Part Overview - Exploded Diagram

    Spare part overview - exploded diagram...
  • Page 5 11 4 11 5...
  • Page 6 14 0 14 1 14 2 14 3 14 4 14 5 14 6 14 8 14 7 14 9 15 9 15 4 15 8 15 5 15 7 15 6 15 3 15 2 15 1 15 0...

  • Page 8: Spare Part Overview - Article Numbers

    Spare part overview - article numbers Art.Nr. Description Art.Nr. Description B12322 Door lock B17282 Cleaning cover assy N111965 Washer M05 N103066 Round sealing strip black D06 N100751 Flat allen screw N112253 Grub screw N105049 Flat washer black Z36840 Baffle plate top N112219 Hexagonal screw Z36841...
  • Page 9 Art.Nr. Description Art.Nr. Description N112082 Self-tapping screw L03298 Lever fluegas flap N112086 Grub screw N109233 Hexagonal nut N106511 Hexagonal screw N112417 Pressure spring N100169 Washer LB00740 Magnet plate LB00851 Side casing panel right assy, for stone front N111733 Magnetic switch bottom part LB00852 Steel front right, assy Z37666...

  • Page 10: Dimensions Aduo

    Dimensions ADUO Technical data ADUO Technical Data Pellets Logs R O - T 3 Heating power range [kW] 2,5 8 R O - S = R - S R O - T 2 Room heating capacity [m ] 50 220 90 220 (depending on house insulation)

  • Page 11: Dimensions Aduo Multi Air

    Dimensions ADUO MULTI AIR Technical data ADUO MULTI AIR Technical Data Pellets Logs R O - T 3 [kW] 2,5 8 Heating power range R O - T 2 R O - S = R - S Room heating capacity (depending on house [m ] 50 220...

  • Page 12: Important Information

    First heating RIKA stoves should only be installed in rooms with normal humidity (dry The stove body, just as various steel parts, cast iron parts and the ue pipes are areas according to VDE 0100 Part 200). The furnaces are not splash water painted with a heat resistant paint.

  • Page 13: Prior To Set Up

    Prior to set up Stoves type 1 (BA 1): Floor bearing capacity These may only be operated with the combustion chamber door closed. Ensure that the substructure is capable of bearing the weight of the stove prior to set-up. Suitable for multiple occupancy. (note the di erent country regulations) Note The combustion chamber door may only be opened to add fuel and must No modi cations may be made to the ring installation.

  • Page 14: Installing The Stove

    Ø 50 mm or Ø 60 mm for pellet stoves. Fix it with a hose clamp (not included!). At pellet stoves with longer intake pipes than 1 m the We recommend original ue pipes from RIKA for proper connection. diameter should be increased to 100 mm. (see RIKA range).

  • Page 15: Technology And Safety Functions

    4. TECHNOLOGY AND SAFETY FUNCTIONS The technological advances in your new combi stove are the result of years of Flue gas flap testing and practical experience. The practical advantages of your pellet/log stove are convincing: If faultless operation is no longer ensured due to a component defect or power cut, the uegas ap is opened.

  • Page 16: Brief Information On Fuel - Pellets

    5. BRIEF INFORMATION ON FUEL - PELLETS Your pellet stove is only approved for the burning of pellets of tested quality. What are pellets? Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers. Wood pellets are a standardised fuel.

  • Page 17: Brief Information On Combustible - Logs

    6. BRIEF INFORMATION ON COMBUSTIBLE - LOGS Suitable fuels and fuel amounts Output controlling Your stove is generally suitable for burning dry rewood. You can also burn The output of your stove is regulated manually or via the Rikatronic-control. combustibles such as wood briquettes. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.

  • Page 18: Dismantling Stone

    7. DISMANTLING STONE Open the door of the combustion chamber. Note Remove the 4 hexagonal screws. Caution, the stone can tilt outwards and Only work on the unit when the mains plug has been disconnected and the break! stove has cooled down completely. Tilt the stone carefully slightly outward and lift it o .

  • Page 19: Flue Gas Flap

    8. FLUE GAS FLAP Start of operation Easy-refilling operation Once the stove has been reconnected to the mains you see the following In order to reduce the discharge of uegas when re lling logs there is a easy- warning on the display. re lling operation available.

  • Page 20: Flow Diagram Pellet - Log Operation

    9. FLOW DIAGRAM PELLET - LOG OPERATION...

  • Page 21: Maintenance

    Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer. Note Ash may contain embers – only place ash in sheet steel containers! Cleaning the fire trough - daily...

  • Page 22: Cleaning

    11. CLEANING Cleaning the flue gas channels Your ANIMO dealer will gladly advise you about their service and The ue gas channels are situated beside the combustion chamber. maintenance o ers. Preparation Aduo Open the combustion chamber door. Depending on pellet consumption, a message prompting cleaning of the stove Remove the convection ns by using the lifting assistance.

  • Page 23: Cleaning The Flue Pipes

    Remove the cleaning lid beneath the fan. Now clean the lateral ues with the supplied brush. Remove the two cleaning lids. Images for cleaning, example Aduo Remove the two cleaning lids. Vacuum the combustion residues o the ue gas duct, especially the areas to the case of the fan.

  • Page 24: Problems - Possible Solutions

    12. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange ame. Pellets heap up in re trough, window Flue gas discharge when wood is added and during heating phase. sooted up. Cause(s) pellet / log operation Cause(s) pellet operation Flue gas ap is not open for refueling Insu cient combustion air...

  • Page 25: Instructions For Commissioning Protocol

    Operating instructions: Handover and reference to the content to the following Note points, is a document. Please return 1 completed protocol for putting into service to RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Micheldorf, Warranty terms Austria. Di erence between warranty (statutory) and guarantee (voluntary), terms of guarantee, determination of wearing parts, reference to pellet quality to be used and the consequences of poor quality.
  • Page 26 Please contact your warranty partner for any warranty questions or claims. This is your dealer or installation company. No warranty claims can be accepted without proper putting into operation, proper operation according to the operating instructions and the supplements in this information sheet. Protocol for putting into operation for RIKA pellet and combi stoves Date:____________________...

  • Page 27: Comfort Options

    In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation the claimant is required to le the warranty claim with the RIKA dealer in writing, submitting the invoice and stating the purchase date, model name, serial number and reason for complaint.
  • Page 28 Eine Marke der RIKA Innovative Ofentechnik GmbH Müllerviertel 20 In case of doubt as well as missing or incorrect translations, 4563 Micheldorf / AUSTRIA the German version is the only valid one. Technical and design Tel.: +43 (0)7582 / 686 - 41, Fax: -43 changes, as well as typesetting and printing errors reserved.
