Summary of Contents for RIKA TURA

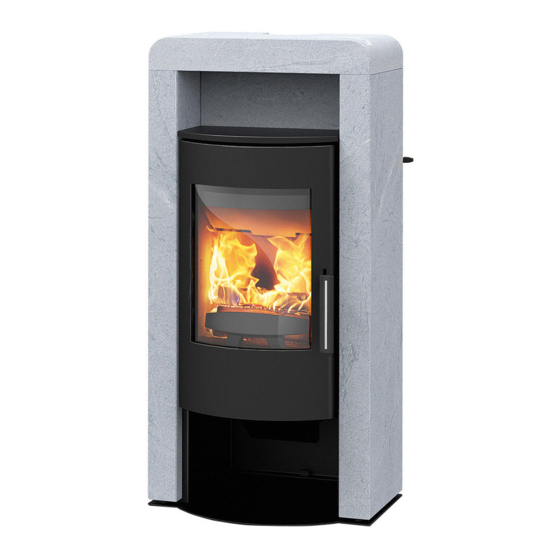

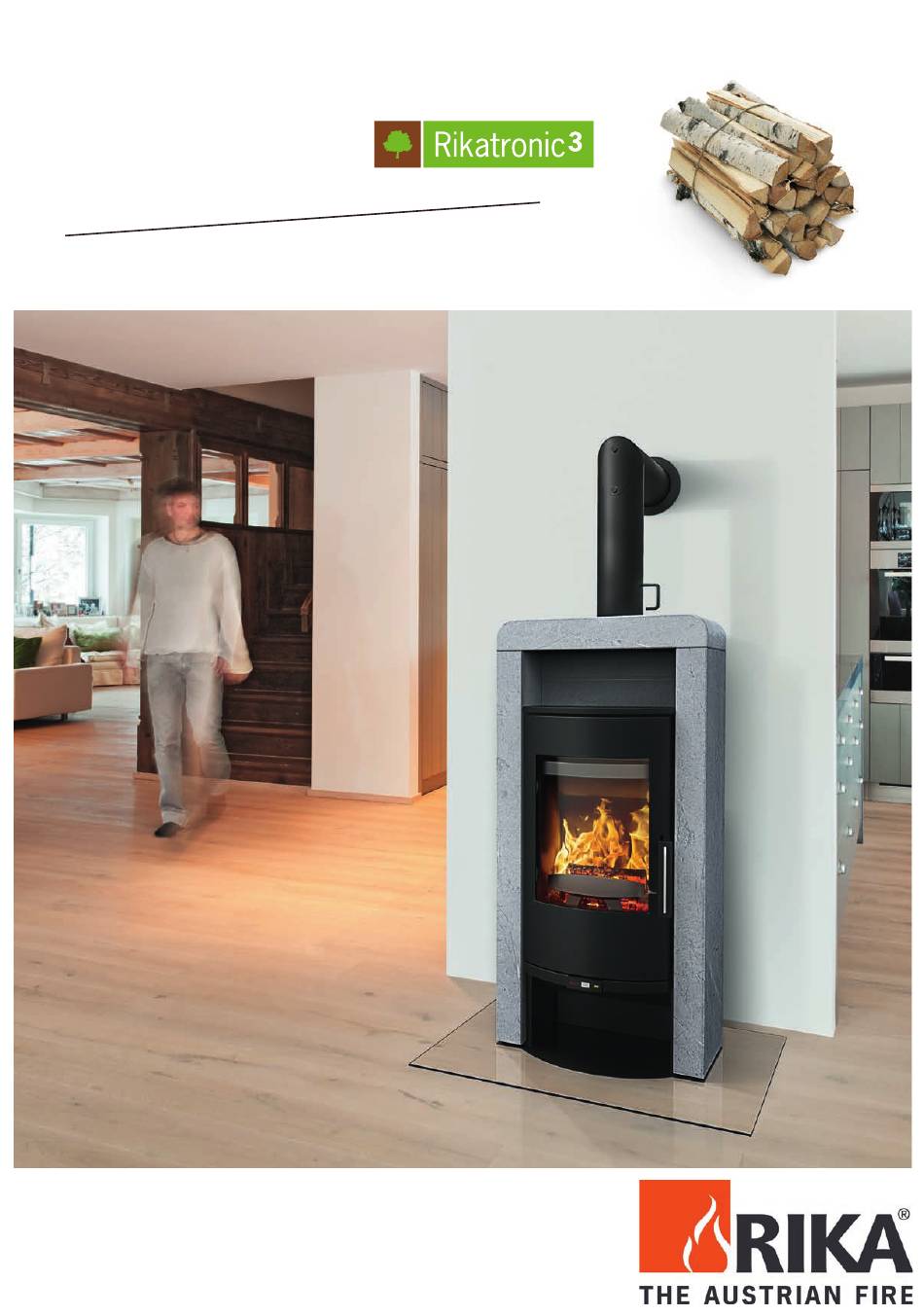

- Page 1 TURA TURA Operating Manual...
-
Page 2: Table Of Contents
CONTENTS 1. PREFACE Explanations to symbols ...................................3 Spare part overview exploded diagram ..............................4 Spare part overview article numbers .................................6 Dimensions ......................................7 Amount of fuel ......................................7 Technical data ......................................7 Packaging .........................................7 Electrical connection ....................................7 2. IMPORTANT INFORMATION General warning and safety information ..............................8 Safety distances ......................................8 Prior to set up ......................................9 3. -
Page 3: Preface
9. OPERATION MANUAL REAR WALL Correct heating up ....................................17 Operating the riddle grate ..................................17 Control knob rear wall ....................................17 10. CLEANING AND MAINTENANCE Basic information ....................................18 Ampty the ash drawer ....................................18 Cleaning the door glass ..................................18 Cleaning the convection air openings ..............................18 Cleaning the flame temperature sensor ..............................18 Checking door seal ....................................18 Checking chimneay connection ................................18... -
Page 4: Spare Part Overview Exploded Diagram
Spare part overview exploded diagram... - Page 5 10 9 11 0 10 0 10 2 10 8 10 1 10 3 10 7 10 6 10 5 10 4...
-
Page 6: Spare Part Overview Article Numbers
Spare part overview article numbers Art.Nr.: Description Art.Nr.: Description Z34377 hinge Z10021 cooking cover N111780 Hexagonal nut Z10020 flue pipe attachments L01909 Door adjustment plate Z32643 bolt Z34319 door glas L02171 mounting plate L00475 glass holder L02251 stone clip top L01413 door hinge ring L02065... -
Page 7: Dimensions
Dimensions Technical data R O - S description measure data heating capacity range [kW] 4 - 8 room heating capacity depending on house R O - T 2 R O - T 3 R - S [m³] 90 - 210 coating fuel consumption [kg/h]... -
Page 8: Important Information
> 80 cm b > 20 cm RIKA stoves should only be installed in rooms with normal humidity (dry areas according to VDE 0100 Part 200). The furnaces are not splash water please observe a minimum distance of 20 cm behind and sideways the stove protected and may not be installed in wet areas. -
Page 9: Prior To Set Up
Prior to set up Stoves type 1 (BA 1): These may only be operated with the combustion chamber door closed. Floor bearing capacity Ensure that the substructure is capable of bearing the weight of the stove prior The combustion chamber door may only be opened to add fuel and must to set-up. -
Page 10: Brief Information On Fuel Logs
3. BRIEF INFORMATION ON FUEL LOGS Suitable fuels and fuel amounts Fuel amounts with nominal heat output Your stove is generally suitable for burning dry firewood. You can also burn fuels Logs - wood briquettes (broken) such as wood briquettes. 3 logs or pieces approx. -
Page 11: Installing The Stove
The stove can also be pushed on this cardboard or carpet. Feeding in external combustion air We recommend original flue pipes from RIKA for proper connection. only for devices which are able to run in romm-air independent operation. Connection to the chimney Combustion air must be fed to the stove from outside via a sealed pipe for operation independent of the room air. -
Page 12: Assembly/ Disassembly Stone And Options
5. ASSEMBLY/ DISASSEMBLY STONE AND OPTIONS Swap the flue connections and the cooking cover. Note Only perform manipulation of the unit when the mains plug of the stove has been disconnected and the stove has cooled down completely. Note Take special care of your fingers and all stove panels and stove attachments during any conversion work. -
Page 13: Operation Rikatronic³
6. OPERATION RIKATRONIC³ Heating instructions Heating up Fill amount for heating up: 2 - 3 logs of max. total 2.5kg Preparation Plug in the mains plug and activate the main switch at the rear of the stove. The As soon as the combustion chamber temperature exceeds 80°C, the display main switch now lights up green. -
Page 14: Complete Closing Of The Air Flaps
Complete closing of the air flaps Manual regulation The Rikatronic³ has a safety device that prevents the air flaps closing completely Note during heating operation (hazard of deflagration). However the air flaps can be Manual operation may only be performed with the unit switched off. Any other closed completely with a sequence of ECO key and opening and closing the procedure than that stated below may cause damage to components and combustion chamber door to stop the existing draught on stove standstill. -
Page 15: Status Displays
7. STATUS DISPLAYS Note Notify customer service immediately if malfunction messages occur in succession. LED display Meaning Action to be taken The stove has just been switched on and the air The stove cannot heat up until the display lamp flaps start the reference run stops flashing The control system starts a reference run again... -
Page 16: Warnings And Malfunction Messages
Check whether dirt or soot has accumulated at the temperature sensor and if required clean the sensor carefully (see Cleaning and Maintenance) Contact RIKA customer service The temperature sensor is defective The display lamp flashes 1x RED and 1x YELLOW The magnetic switch is defective or jammed Check whether an object is blocking the air flaps... -
Page 17: Operation Manual Rear Wall
9. OPERATION MANUAL REAR WALL Correct heating up Operating the riddle grate 1. Press the control knob at the rear wall down completely into “Heating-up The ash is moved from the combustion chamber to the ash drawer by pushing position” – primary and secondary air intakes are open completely in the the riddle grate handle back and forth. -
Page 18: Cleaning And Maintenance
10. CLEANING AND MAINTENANCE Basic information Cleaning the door glass The glass can be cleaned best with a moist cloth. Stubborn dirt can be removed Note with a special cleaner available from your stove dealer. Your stove must be switched off and cooled before any maintenance work is performed. -
Page 19: Problems Possible Solutions
11. PROBLEMS POSSIBLE SOLUTIONS Problem 1 Problem 2 Fire burns with weak, orange flame. Pellets heap up in fire trough, window Stove smells strongly and smokes outside. sooted up. Cause(s) Cause(s) Burning-in phase (taking into service) Poor chimney draught Stove has accumulated dust and/or dirt Too much fuel Possible solution(s) Damp wood... -
Page 21: Guarantee
For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint. - Page 22 Technical and design changes, as well as typesetting and printing errors reserved © 2014 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at RIKA.AT...
