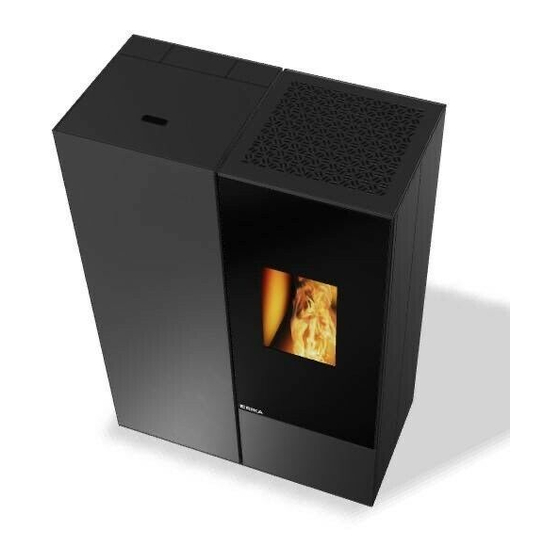

CONNECT PELLET
F22 / F38
Operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONNECT PELLET F22 and is the answer not in the manual?

Questions and answers

Summary of Contents for RIKA CONNECT PELLET F22

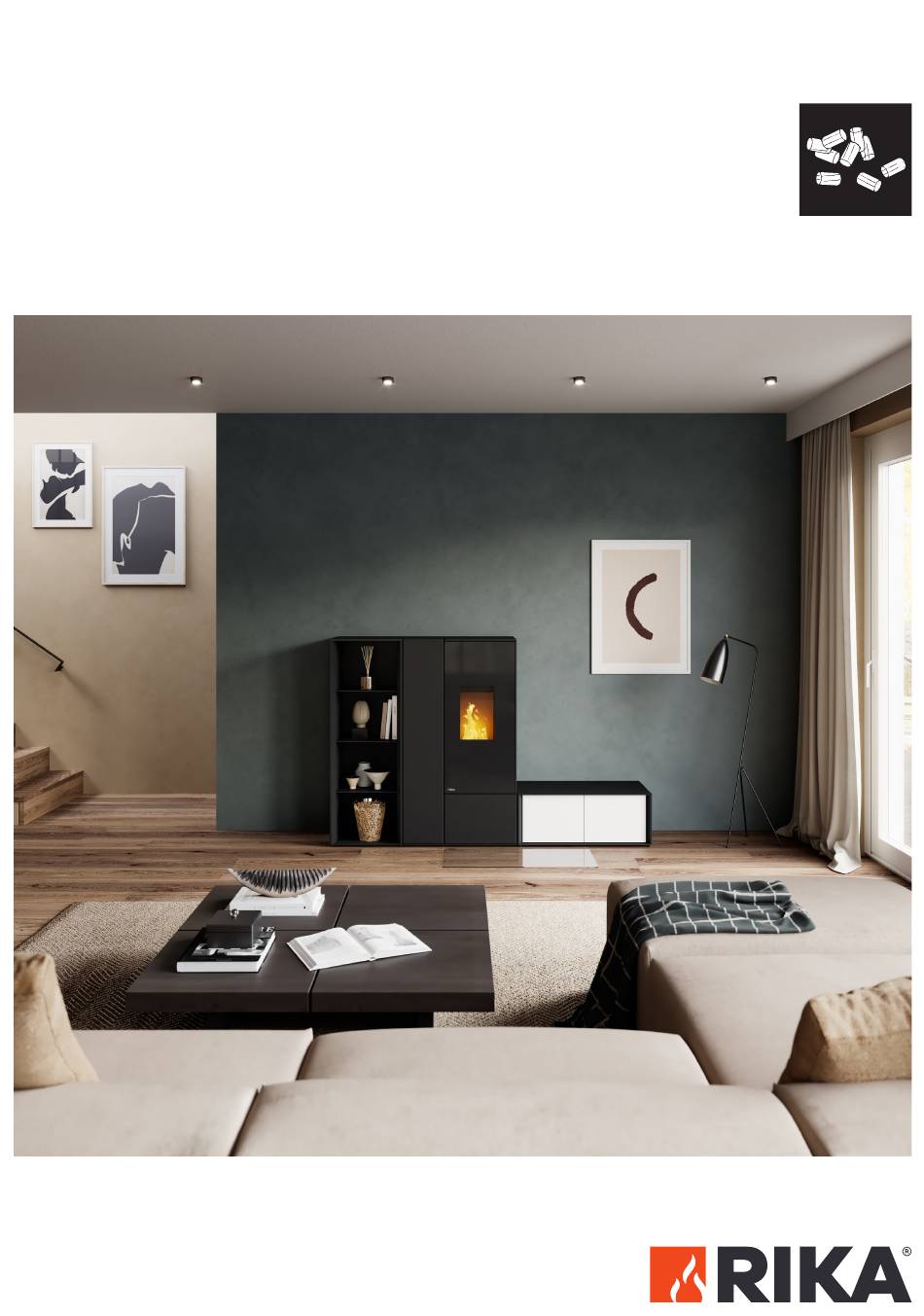

  • Page 1 CONNECT PELLET F22 / F38 Operating manual...
  • Page 2: Table Of Contents

    Component monitoring �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Auger motor monitoring ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Power failure (during heating) ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Power failure (during the initial stage) �������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 8. ASSEMBLY RIKA MULTIAIR Scope of Delivery E15633 ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 20 General information ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������21 Mounting Convection Fan ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������21...
  • Page 3: Explanations To Symbols

    Interface for various options ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24 External room thermostat ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24 External connection cable bridge ������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 24 Option firenet �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24 RIKA VOICE �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24 10. MAINTENANCE Open the combustion chamber door ����������������������������������������������������������������������������������������������������������������������������������������������������������������25 Cleaning the fire trough �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������25 Cleaning the flame temperature sensor ���������������������������������������������������������������������������������������������������������������������������������������������������������25 Empty the ash drawer ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������25...
  • Page 4: Technical Documentation - Ecodesign

    Andreas Bloderer Contact: Address: Müllerviertel 20 4563 Micheldorf Austria Details of the device Model Identifier: CONNECT PELLET F22 / CONNECT PELLET F38 Equivalent models: Technische Universität Wien, Getreidemarkt 9/166, 1060 Notified body: Wien, Austria Notified body no.: 1746 Test report no.:...
  • Page 5 Micheldorf, 07.12.2021 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 6: Technical Data

    3. TECHNICAL DATA Spare part overview exploded diagram...
  • Page 7 CONNECT PELLET/F22...
  • Page 8 CONNECT PELLET/F38...
  • Page 10: Multiair

    MULTIAIR Flue pipe connection top - RAO...
  • Page 11: Spare Part Overview - Article Numbers

    Spare part overview - article numbers Art.Nr. Description Art.Nr. Description B19093 Decorative door assy N112707 Allen screw N111784 Allen screw Z38131 Fire trough N110017 Allen screw N111631 Round sealing cord grey D06 N112240 Self-tapping screw M05x10 Z38132 Turning grid Z38729 Washer L02726 Small plate...
  • Page 12 Art.Nr. Description Art.Nr. Description N112600 Container seal LB00965 Container lid F38 N112082 Self-tapping screw B19220 Container lid assy F38 Z37327 Centre sleeve L04058 Rear wall right F22/F38 Z27423 Ground connection LB00933 Cover display case F38 Z38709 Side casing front left/right N112142 Flange nut Z38711...
  • Page 13 Art.Nr. Description Art.Nr. Description Z38165 Hinge pin N106989 Hexagonal screw L04063 Hinge F38 N112703 Self-tapping screw M04x08 N104971 Hexagonal nut Z38387 IEC mains socket N112071 Wedge retaining ring B16561 Mainboard USB11 L04064 Hinge guidance F38 N112102 Differential pressure switch N111856 Hexagonal countersunk screw M04x12 L03638 Holder plate...
  • Page 14: Dimensions

    170/185 Chimney draft requirement [Pa] Flue pipe connection *with a two meter MULTIAIR line in combination with RIKA design outlet, values may differ in practice� Flue Pipe Outlet [mm] **The capacity in kg may deviate due to different pellet bulk densities�...
  • Page 15: Installing The Stove

    Connect at the air intake either a pipe Ø 125 mm for log wood and combi stoves, or Ø 50 mm or Ø 60 mm for pellet stoves� Fix it with We recommend original flue pipes from RIKA for proper connection� a hose clamp (not included!)� At pellet stoves with longer intake pipes than 1 m the diameter should be increased to 100 mm�...
  • Page 16: Important Information

    The hardening of the paint is finished after the first as well as the regulations and rules applicable locally� heating with high power� RIKA stoves should only be installed in rooms with normal humidity Safety distances (dry areas according to VDE 0100 Part 200)� The furnaces are not splash water protected and may not be installed in wet areas�...
  • Page 17: Prior To Set

    Stoves type 1 (BA 1): Prior to set up Suitable for multiple occupancy� (Note the different country Floor bearing capacity regulations�) Ensure that the substructure is capable of bearing the weight of the These may only be operated with the combustion chamber door stove prior to set-up�...
  • Page 18: Brief Information On Fuel - Pellets

    6. BRIEF INFORMATION ON FUEL - PELLETS Your pellet stove is only approved for the burning of pellets of tested What are pellets? quality� Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers� Wood pellets are a standardised fuel�...
  • Page 19: Technology And Safety Functions

    7. TECHNOLOGY AND SAFETY FUNCTIONS The technological advances in your new combi stove are the result of Automatic cleaning cycle years of testing and practical experience� The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety�...
  • Page 20: Assembly Rika Multiair

    8. ASSEMBLY RIKA MULTIAIR Scope of Delivery E15633 B17527 Convection fan complete 3x N112040 Duo Taptite L02724 Motor cover...
  • Page 21: General Information

    General information Mounting Convection Fan Prepare the following at the stove: The convection air amount and temperature is designed for heating one or, if two fans are installed, two additional rooms� Loosen the 2 hexagonal screws on the rear panel� The rear panel tilts backwards�...
  • Page 22 Loosen the 3 hexagonal screws and remove the sheet covering� Loosen the 2 hexagonal screws on the rear panel� The rear panel tilts backwards� Disconnect the earthing cable� You can then lift it upwards� Screw the B17527 MULTIAIR fan on using the 3 Duo Taptite N112040 Run the MULTIAIR fan cable vertically downwards and then further hexagonal screws�...
  • Page 23: Function Test And Settings

    Attach the condenser (with 2 blowers both capacitors) in the free Function test and settings slots behind the cable channel� Connect the power cord back in and select the Setup menu / Loosen the nut and the ring from the capacitor till the end from the submenu Service.
  • Page 24: Comfort Options

    RIKA Firenet module and Amazon Alexa RIKA VOICE allows you to control your RIKA stove by simply speaking to it� Power on or off, switching between modes or adjusting the preferred heat output or room temperature: a few words is all it takes! More detailed information could be obtained at www.rika.at or from...
  • Page 25: Maintenance

    FIRE RISK! In a cold state, dispose it of in the household waste� Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer� Open the combustion chamber door To open or close the combustion chamber door and the door of the ash-chamber use the included key�...
  • Page 26: Cleaning

    11. CLEANING Cleaning the flue gas channels Your RIKA dealer will be happy to advise you and can offer you a (annually) maintenance contract� Remove the flue pipes� Inspect and clean chimney connection� Brush off any soot and dust deposits in the fire and in the flue pipes and Depending on pellet consumption, a message prompting cleaning of vacuum�...
  • Page 27: Cleaning Flue Gas Paths

    Now clean the flues and baffles with the supplied brush� Vacuum the Cleaning flue gas paths combustion residues with a vacuum cleaner� The flues are lateral the combustion chamber� Open the decorative glass door by pushing the button on the display before you unplug the stove from the power supply�...
  • Page 28: Problems - Possible Solutions

    12. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame� Pellets heap up in fire trough, Flue gas discharge when wood is added and during heating phase� window soots up� Cause(s) Cause(s) Leaking cleaning openings Insufficient combustion air Chimney draught too low Poor chimney draught...
  • Page 29: Instructions For Commissioning Protocol

    Please return 1 completed protocol for putting into service to blockers, lack of cleaning or maintenance and stove malfunctions� RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Thorough instruction can prevent many complaints� Micheldorf, Austria�...
  • Page 30 The client confirms the reception of correct and clear instructions. Our general terms and conditions shall apply. I consent to the collection, saving and use of my personal data (name, address, e-mail) by RIKA Innovative Ofentechnik GmbH for marketing and information purposes.
  • Page 31: Guarantee Conditions

    In cases of doubt, or in the case of missing or incorrect translations, the German version is always the sole valid version. In the interest of ensuring damage limitation in good time, the guarantee claim should be sent in writing to the RIKA specialist or contract dealer.
  • Page 32: Disposal Information

    16. DISPOSAL INFORMATION RIKA Innovative Ofentechnik GmbH is ensuring that its products Extract from the waste code of the are eco-friendly throughout the product life cycle� This is why our European Waste List Regulation commitment for electronic products goes beyond the end of their product life cycle�...
  • Page 36 German version is the only 4563 Micheldorf / AUSTRIA valid one. Subject to technical and visual Tel.: +43 (0)7582/686 - 41, Fax: -43 changes as well as layout and printing errors.. verkauf@rika.at www.rika.at © 2021 | RIKA Innovative Ofentechnik GmbH...
