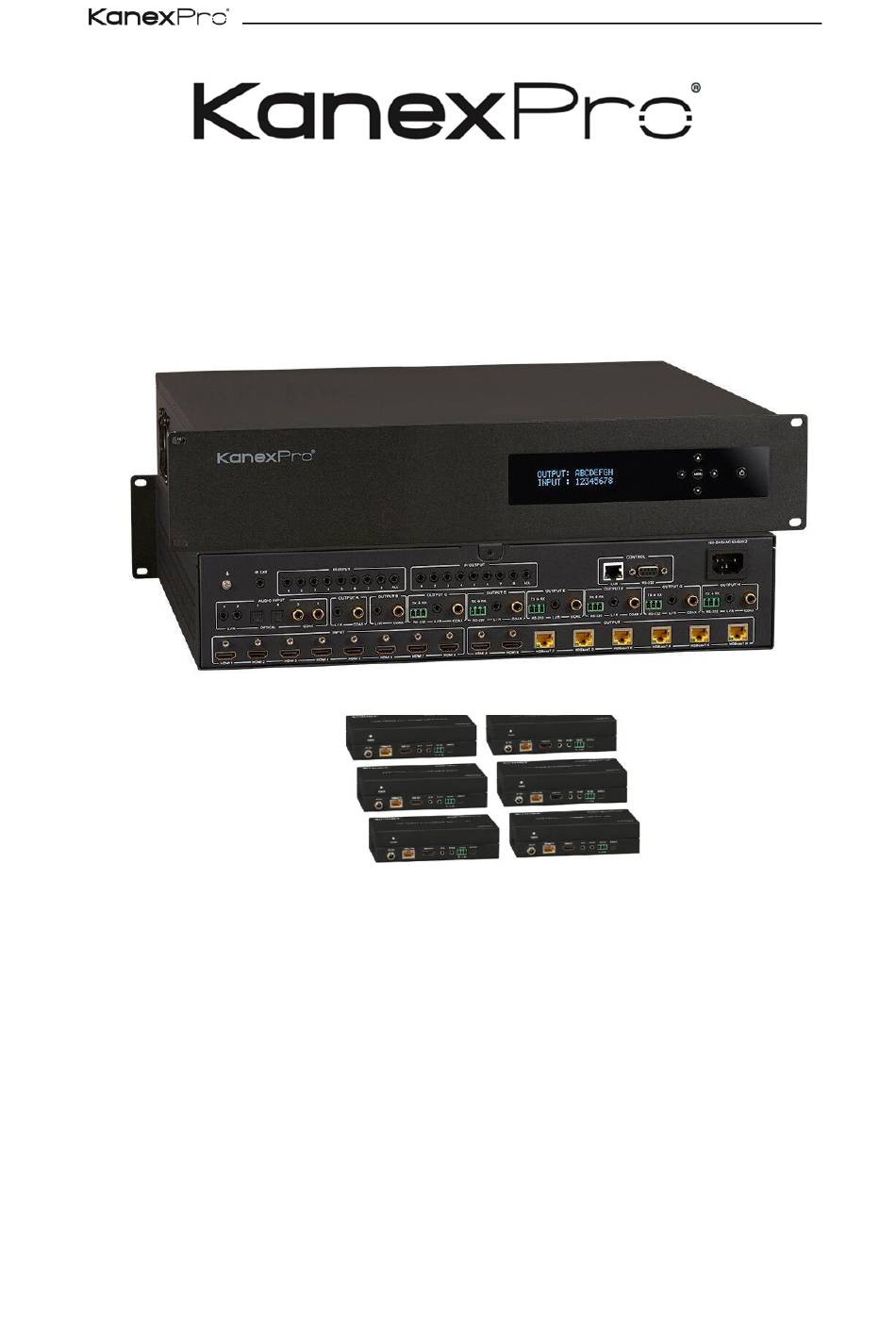

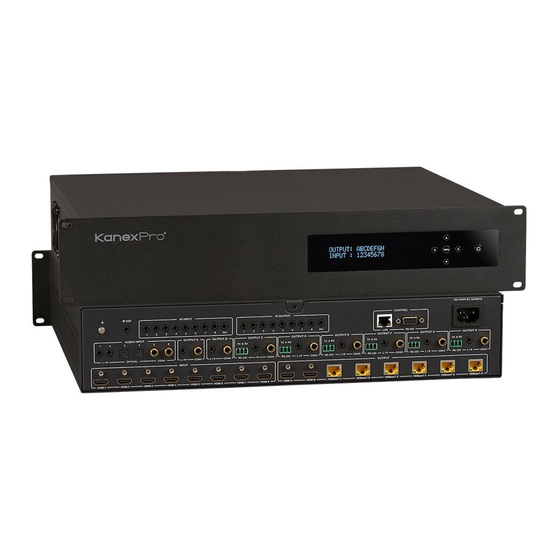

- Page 1 MX-HDBT8X818G MX-HDBT8X818G 4K HDR 8×8 Matrix Switcher with Multi-Zone Audio & Control All Rights Reserved MPN: MX-HDBT8X818G...
- Page 2 MX-HDBT8X818G DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. KanexPro assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. KanexPro assumes no responsibility for any inaccuracies that may be contained in this document. KanexPro also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Table Of Contents
MX-HDBT8X818G • Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it. • To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit. -
Page 4: Introduction
MX-HDBT8X818G 1. INTRODUCTION The HDBaseT™ 8x8 Matrix Switcher supports the transmission of video (up to 4K2K@60Hz YUV4:4:4, 8-bit, 18Gbps, HDCP 2.2) and multi-channel digital audio such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio from 8 HDMI sources to 6 HDBaseT™ outputs and 2 independent HDMI outputs. The HDBaseT™... -
Page 5: Operation Controls And Functions
MX-HDBT8X818G 9×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [Phoenix connector] 1×LAN [RJ45 connector] Output Ports: 2×HDMI Type A [19-pin female] 6×HDBaseT Out [RJ45] 9×IR output [3.5mm Stereo Mini-jack] 1×Optical audio [S/PDIF] 1×Stereo audio [3.5mm Stereo Mini-jack] Input ports: 1×HDBaseT In [RJ45] Receiver 1×IR In [3.5mm Stereo Mini-jack]... -
Page 6: Rear Panel
MX-HDBT8X818G POWER button Device power button. Press the button 3s, the unit will enter standby mode and press again the unit will work. OUTPUT button A~H output channel button. 5.2 Rear Panel Number Name Function description IR INPUT IR INPUT interface. For further details, please refer to the IR control system introduction. -
Page 7: Remote Control
MX-HDBT8X818G 6.REMOTE CONTROL ① Press the key to open the power of the matrix or set it as a standby mode. ② Press the DISPLAY A, B,C, D, E, F, G or H button to select output firstly, then corresponding press the SOURCE 1, 2, 3, 4, 5, 6, 7 or 8 button to select input source. -
Page 8: Ir Control System (Ir Call-Back Of Matrix And Source Devices)
MX-HDBT8X818G 7.IR CONTROL SYSTEM (IR Call-back of Matrix and Source Devices) The matrix is not only a switcher and extender of multiple HDMI signals to multiple HDMI receivers located remotely, it also passes IR control signals through the IR call-back system... -
Page 9: Web Gui User Guide
MX-HDBT8X818G ② At display end: The matrix has two location HDMI outputs and six HDBT outputs. The location HDMI output has not IR control function. The six HDBT outputs connect HDBT receiver. The HDBT IR INPUT and the matrix IR OUPTU is match. - Page 10 MX-HDBT8X818G Then select the “TCP Control Mode” port, click the “Search” button. At this moment, you can get current IP address. You can set the IP address to your PC/laptop/mobile Internet Explorer and click “Search” to enter Web GUI page.
- Page 11 MX-HDBT8X818G GENERAl PAGE ① Display currently the Matrix input and output port status. The “yes” have connected input or output source and “no” represent not connection. ② Power switch. The Matrix will work when open this switch, otherwise, the Matrix will standby.
- Page 12 MX-HDBT8X818G EDID PAGE ① Set EDID mode to input source, then click “Set” button. ② Copy EDID from HDMI output port to input source, then click “Set” button. ③ Open EDID file to input source, then click “Set” button. ④ Click “Refresh” button to refresh currently EDID mode. It will diaplay currently input source EDID mode status.
- Page 13 MX-HDBT8X818G ◆ In DHCP close status: HDCP switch: If the DHCP switch has been closed, user can set IP, Subnet and Gate address. In this moment, click the “Save Change” button to save current status information. (Attention: If user have set the IP address, click the “Save Change”...
-
Page 14: Hdbt Receiver
MX-HDBT8X818G 9. HDBT RECEIVER Number Name Function description POWER This LED illuminates when the device is connected with power supply. DC 24V Plug the 24V DC power supply into the unit. (If the device connect to the matrix, the receiver doesn't need local power supply due to POC from the matrix.) -
Page 15: Application Example
MX-HDBT8X818G 10. APPLICACTION EXAMPLE Brea, California www.kanexpro.com... - Page 16 MX-HDBT8X818G...
