- Page 1 User Manual MP-SC-6E Compact Scaler Switcher 6x1 All Rights Reserved Version: MP-SC-6E_2016V1.0...
- Page 2 Compact Scaler Switcher 6x1 Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. Trademarks Mentioned product model and logo are trademarks.
- Page 3 Compact Scaler Switcher 6x1 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 4: Table Of Contents
Compact Scaler Switcher 6x1 Contents 1. Introduction ......................... 1 1.1 Introduction to MP-SC-6E .................. 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 3 3.1 Usage Precautions .................... -
Page 5: Introduction

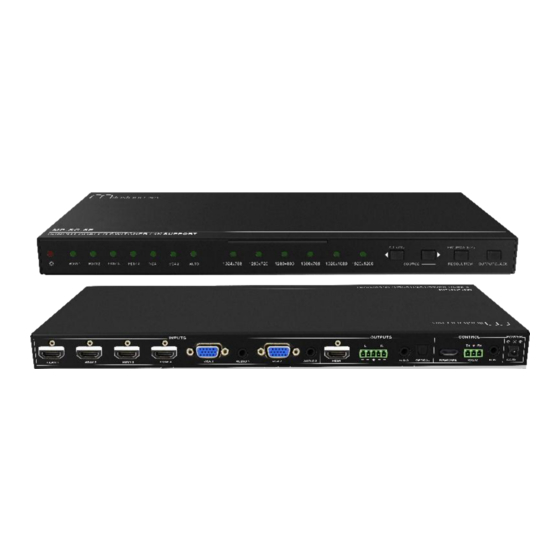

1. Introduction 1.1 Introduction to MP-SC-6E MP-SC-6E is a compact 6x1 mini unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio). -
Page 6: Panel Description
Compact Scaler Switcher 6x1 1 x User manual Notes： Confirm all the accessories are included, if not, please contact with the dealers. 2. Panel Description 2.1 Front Panel AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO... -
Page 7: Rear Panel
FIRMWARE: Type-A USB port for updating firmware. RS232: Serial port, 3-pin pluggable terminal block, connect ③ Control with control terminal (e.g. a PC) to control MP-SC-6E. IR IN: connect to an IR Receiver, to receive IR signal send by corresponding IR remote. ④... -
Page 8: System Diagram
Step1. Connect HDMI/DVI sources (e.g. DVD) to HDMI input ports of MP-SC-6E with HDMI cables. Step2. Connect VGA sources (e.g. DV Camera) to VGA input ports of MP-SC-6E with VGA cables. Step3. Connect sources to the AUDIO input ports of MP-SC-6E with audio cables. - Page 9 Remove the signal of HDMI3, MP-SC-6E will detect from HDMI1 to VGA2. And when it detects that HDMI2 is available, it will choose HDMI2 to output. Cut off the power of MP-SC-6E, then reboot. As the unit is in auto-switching mode, it will choose HDMI2 to output.
-
Page 10: Rs232 Control
Uninstallation Delete all the control software files in corresponding file path. 4.2.2 Basic Settings Firstly, connect MP-SC-6E with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. -
Page 11: Rs232 Communication Commands
Compact Scaler Switcher 6x1 4.2.3 RS232 Communication Commands Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example Switch Commands 50701% Switch to HDMI 1 Input Switch to HDMI 1 50702% Switch to HDMI 2 Input Switch to HDMI 2 50703% Switch to HDMI 3 Input... - Page 12 Compact Scaler Switcher 6x1 Color Temperature: xx Adjust the color temperature for VGA 50607% (xx= Cool/ Medium/ Warm/ input User.) Aspect Ratio: xx Set the aspect ratio for VGA input 50608% (xx= 16:9/ 4:3/ auto/) Picture Mode: xx (xx= Set the picture mode for VGA input dynamic/ standard/ mild/ 50614% user)
- Page 13 Compact Scaler Switcher 6x1 ports:1080P&5.1ch Set the EDID date of all input ports: 50775% EDID:1080P3d&5.1ch 1080P 3D&5.1ch Set the EDID date of all input ports: EDID:1080i&PCM 2ch 50776% 1080i&PCM 2ch Set the EDID date of all input ports: 50777% EDID:4K&PCM 2ch 4K&PCM 2ch EDID:user 50787%...
-
Page 14: Notes
Step1. Copy the file (the file must be named EDID.bin) to the root directory of a USB flash disk. Step2. Plug the USB flash disk to the MP-SC-6E Firmware port on its rear panel. Step3. Send command 50769% to read EDID data from U flash disk, then, send command 50787% to update EDID. -
Page 15: Firmware Updating
The “MERGE.bin” file is provided/ authorized. Step2. Plug the USB flash disk to MP-SC-6E FIRMWARE port on its rear panel. Step3. Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to update the firmware automatically. - Page 16 W347 x H28 x D110 mm Weight 0.63Kg (W*H*D) Reference Temperature 0℃ ~ 50℃ 10% ~ 90% Humidity Transmit 4Kx2K≤15m Distance Note: MP-SC-6E supports 4k&1080p 3D HDMI signal, please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting...
- Page 17 Compact Scaler Switcher 6x1 Supported Input Resolutions Format Resolution 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz, HDMI/DVI 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz, 4096x2160@25Hz, 4096x2160@30Hz,...
-
Page 18: Panel Drawing
Compact Scaler Switcher 6x1 6. Panel Drawing 347 mm AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO 1024x768 1280x720 1280x800 1360x768 1920x1080 1920x1200 SOURCE RESOLUTION OUTPUT BLACK 13.5 mm INPUTS OUTPUTS CONTROL POWER HDMI 1 HDMI 2... -
Page 19: Troubleshooting & Maintenance
Compact Scaler Switcher 6x1 7. Troubleshooting & Maintenance Problems Causes Solutions Fail connection of power Make sure the power cord Power LED doesn’t cord connection is normal work or no response to Power adapter doesn’t Please replace the power any operation suitable adapter with factory default No output image on... -
Page 20: After-Sales Service
Compact Scaler Switcher 6x1 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. 1) Product Limited Warranty: We warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product).
