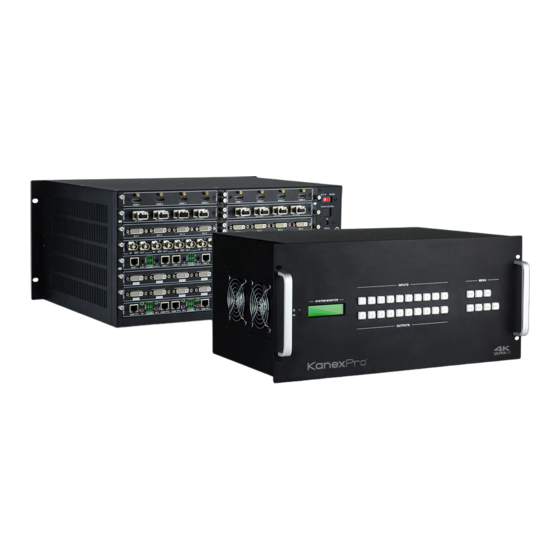

KanexPro HDMMX3232-4K User Manual

Modular matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMMX3232-4K Modular Matrix
Switcher
User Manual
All Rights Reserved
Version: HDMMX88-4K_2015V2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMMX3232-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KanexPro HDMMX3232-4K

Summary of Contents for KanexPro HDMMX3232-4K

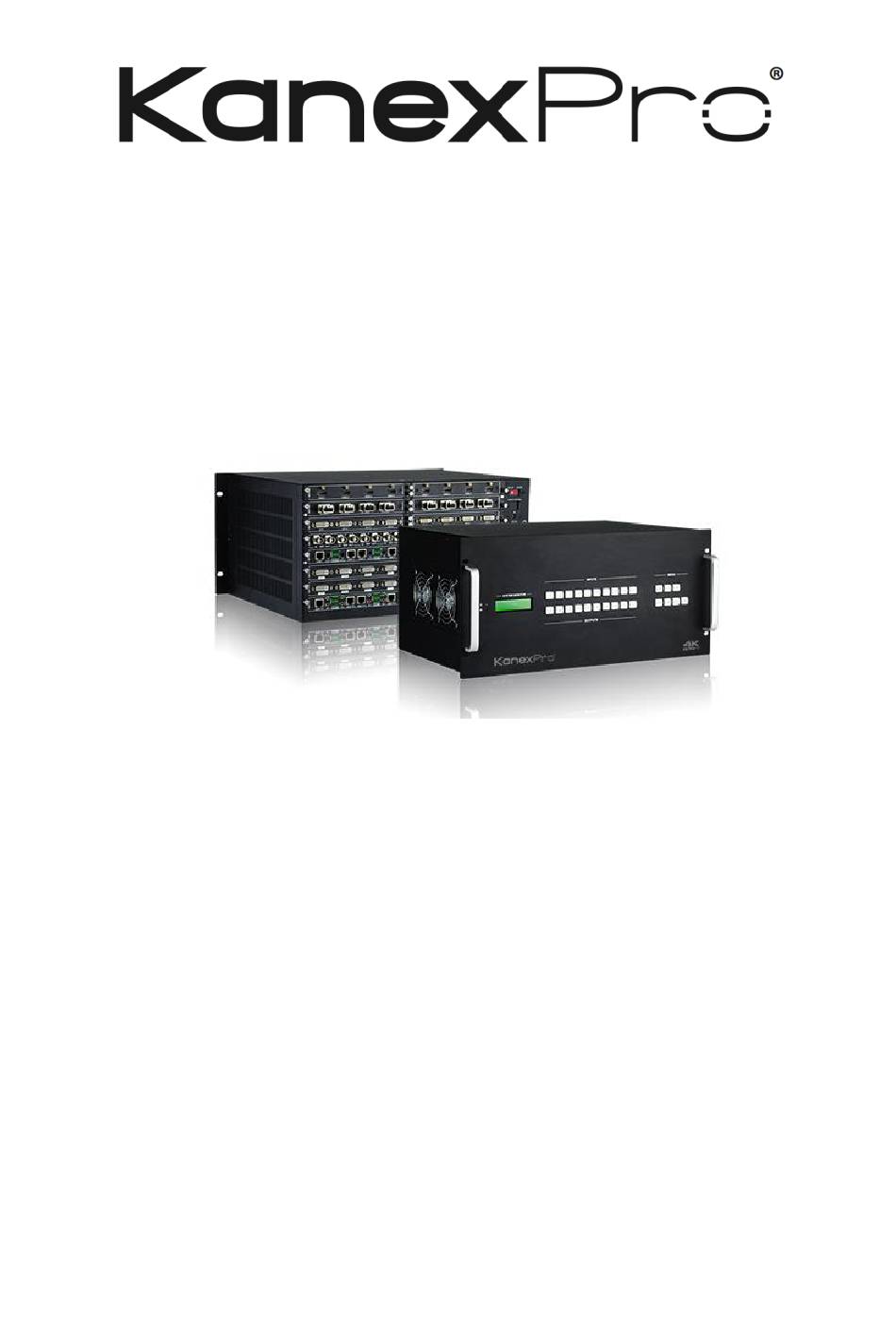

  • Page 1 HDMMX3232-4K Modular Matrix Switcher User Manual All Rights Reserved Version: HDMMX88-4K_2015V2.5...
  • Page 2 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated until August 2015.
  • Page 3 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Contents 1. Introduction ......................... 3 1.1. About The HDMMX3232-4K (with Audio) ............3 1.2. Features ......................3 1.2.1. Modular Matrix Switcher signal card (changeable cards) ....... 4 1.4 Package List ...................... 4 2.
  • Page 5 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 4.3.3. TCP/IP Configuration ................28 5. Specification ......................30 5.1. Main Unit ......................30 5.2. Changeable Cards ..................30 5.2.1. MOD-IN-DVI & MOD-OUT-DVI ............. 30 5.2.2. MOD-IN-SDI & MOD-OUT-SDI ............. 31 5.2.3. MOD-IN-HDTV-4K & MOD-OUT-HDTV-4K ........... 31 5.2.4.

  • Page 6: Introduction

    1. Introduction 1.1. About The HDMMX3232-4K (with Audio) The KanexPro HDMMX88A-4K is an 32 input by 32 output modular matrix switcher chassis with four input slots and four output slots; each modular input or output card supports up to four device connections. As an add-on to front panel control, the HDMMX3232A-4K can be controlled via IR, RS232, or TCP/IP connections.

  • Page 7: Modular Matrix Switcher Signal Card (Changeable Cards)

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) ▪ 2U rack-mountable aluminum enclosure ▪ Dual-Internal power supply (100Volt~240Volt AC, 50/60Hz) 1.2.1. Modular Matrix Switcher signal card (changeable cards) Modular Matrix Switcher 32x32 (with Audio) supports multiple signal cards as listed in...

  • Page 8: Panel Description

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 2. Panel Description 2.1. Modular Matrix Switcher 32x32 (with Audio) 2.1.1. Front Panel Figure 2- 1 Front Panel of Modular Matrix Switcher 32x32 (with Audio) Name Description ① IR sensor Power ②...

  • Page 9: Rear Panel

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 2.1.2. Rear Panel Figure 2- 2 Rear Panel of Modular Matrix Switcher 32x32 (with Audio) Name Description ① INPUTS Audio input slot ② OUTPUTS Audio output slot Input signal card slots, 2 in total, insert necessary input cards here ③...
  • Page 10 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) device through 4O-DV or other kinds of output cards. MOD-OUT-DVI: output card, maximum four output signal, output signals from 4I-DV, or other kinds of input cards. Pin Layout of the DVI-I connector (Dual-Link). (Female)

  • Page 11: Mod-In-Dvi & Mod-Out-Dvi

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 2.2.2. MOD-IN-DVI & MOD-OUT-DVI Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3& HDCP, and supports seamless transmission for high-definition DVI, HDMI, VGA, AV, YPbPr signals. Signal format can be modified via RS232 commands.
  • Page 12 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) DVI- YPbPr: Signal Signal GREEN BLUE Other pins are unused. DVI- VGA (female): Signal Signal Horizontal Sync GREEN Analog Vertical Sync Analog Other pins are unused. MOD-OUT-VGA output card, maximum four VGA output signal and 4 stereo audio outputs, output video signal from 4I-VG, or other kinds of input cards, and output audio signal from the audio of the input signal.

  • Page 13: Mod-In-Vga

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) When connecting to YPbPr or C-VIDEO signal, insert converting cables according to specific pin definitions (see the figures below): VGA- YPbPr: Signal Signal GREEN BLUE Other pins are not used. VGA- C-VIDEO:...

  • Page 14: Mod-In-Cat6-4K & Mod-Out-Cat6-4K

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive) Every port has loop output for local monitoring. MOD-IN-SDI: input card, maximum four input signal. Input signal can pass to output device through MOD-OUT-SDI, or other kinds of output cards.

  • Page 15: Mod-In-Hdtv-4K & Mod-Out-Hdtv-4K

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) resolution to 1080p to enable reliable output. MOD-OUT-CAT6-4K: output card, maximum output four HDBT signal, output signals from MOD-IN-CAT6-4K, or other kinds of input cards, need to work with HDBT receivers. How the indicators work:...

  • Page 16: Mod-In-Fiber & Mod-Out-Fiber

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) audio source (0 is for HDMI embedded audio, 1 is for analog audio) It also boasts embedded EDID management. MOD-IN-HDTV-4K: input card, maximum four input signal. Input signal can pass to output device through MOD-OUT-HDTV-4K, or other kinds of output cards.

  • Page 17: Au88 Stereo Audio (Mmx88A Only)

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Note: Use the MOD-IN-FIBER/ MOD-OUT-FIBER with optical fiber transmitter/ receiver. Multi-mode transmission may include the following cases: Single-mode optical fiber module& Multi-mode optical fiber cable Multi-mode optical fiber module& Multi-mode optical fiber cable Before using MOD-IN-FIBER &...

  • Page 18: System Connection

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 3. System Connection 3.1. Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe.

  • Page 19: Control Operations

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 4. Control Operations 4.1. Front Panel Button control Users can control Modular Matrix Switcher 32x32 (with Audio) rapidly and directly with its front panel buttons. Here is a brief operation guide to front panel buttons.

  • Page 20: Rs232 Control

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 4.2. RS232 Control 4.2.1. Connection of RS232 Communication Port Except the front control panel and IR remote, Modular Matrix Switcher 32x32 (with Audio) can be controlled by far-end control system or through the Ethernet control via the RS-232 communication port.
  • Page 21 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Detailed Information 1080p 2D 5.1CH 1080p 2D 2.0CH 720p 2D 5.1CH 720p 2D 2.0CH 4kx2k 2D 5.1CH 4kx2k 2D 2.0CH Update in-built EDID data by sending command UpgradeIntEDID[x]..
  • Page 22 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Communication protocol: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Description Feedback /*Type; Inquire the models information. MODULAR88A /%Lock; Lock front panel buttons. System Locked! /%Unlock; Unlock front panel buttons.
  • Page 23 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) to 9. Recall From F8 V: 01->001 Recall[Y]. Recall the preset command [Y]. A: 01->001 … … Clear[Y]. Clear the preset command [Y]. Clear F8 PWON. Work normally. PWON PWOFF. Enter in standby mode.
  • Page 24 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) operation status will remain the same. MOD-IN-HDMI Set the brightness of input [x] to xx, USER/I/[x]:02xx%; 02xx% xx=00~99 Set the contrast of input [x] to xx, USER/I/[x]:03xx%; 03xx% xx=00~99 Set the saturation of input [x] to xx, USER/I/[x]:04xx%;...
  • Page 25 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Set the resolution of output [x] to Resolution USER/O/[x]:0826%; 1280x1024 @60Hz Out03 1280x1024 Set the resolution of output [x] to Resolution USER/O/[x]:0837%; 1920x1200 @60Hz Out03 1920x1200 USER/O/[x]:0617%; Restore output [x] to factory default.
  • Page 26 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Set the signal of input channel [x] to USER/I/[x]:0622%; 0622% VGA. Set the signal of input channel [x] to USER/I/[x]:0623%; 0623% YCBCR. Set the signal of input channel [x] to USER/I/[x]:0624%; 0624% SVIDEO.
  • Page 27 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) MOD-OUT-SDI Set the input source of output [x] to USER/O/[x]:0201%; 0201% YPbPr Set the input source of output [x] to USER/O/[x]:0202%; 0202% Set the input source of output [x] to C- USER/O/[x]:0203%;...
  • Page 28 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) It will show the detail switch information when it switch. Example: when switch 1->2, it will feedback “AV01 to 02”. 6、 Transfer signals from an input channel to corresponding output channel: [x]#.

  • Page 29: Tcp/Ip Control (Optional)

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 4.3. TCP/IP Control (Optional) 4.3.1. Control Modes TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is 4001. IP & Gateway can be changed as you need, Serial Port cannot be changed.

  • Page 30: Control Modular Matrix Switcher 32X32 (With Audio) Via Tcp/Ip Communication Software

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Step1. Connect the TCP/IP port of the Modular Matrix Switcher 32x32 (with Audio) to Ethernet port of PC with twisted pair. Step2. Set the PC’s network segment to the same as the Modular Matrix Switcher 32x32 (with Audio).

  • Page 31: Tcp/Ip Configuration

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 2) After connect successfully, we can enter commands to control the Modular Matrix Switcher 32x32 (with Audio), as below: Enter your command here. Commands are the same with RS232 commands listed in 4.3.2 RS232...
  • Page 32 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) In this interface, you can:  Change website display language  Modify network settings: Go to Internet Settings -> WAN  Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select program file ->...

  • Page 33: Specification

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 5. Specification 5.1. Main Unit Control parts Serial control RS232, 9- female D 2 = TX, 3 = RX, 5 = port connector Configurations Front panel Installation Rack Mountable Buttons control Options...

  • Page 34: Mod-In-Sdi & Mod-Out-Sdi

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 5.2.2. MOD-IN-SDI & MOD-OUT-SDI MOD-IN-SDI MOD-OUT-SDI Input 4 SDI Output 4 SDI Input Output Female DB24+5/HDMI Female DB24+5/HDMI Connector Connector Output Input Level T.M.D.S. 2.9V~3.3V T.M.D.S. 2.9V~3.3V Level Input Output 75Ω 75Ω...

  • Page 35: Mod-In-Vga & Mod-Out-Vga

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 5.2.4. MOD-IN-VGA & MOD-OUT-VGA MOD-IN-VGA MOD-OUT-VGA Input 4 VGA Output 4 VGA Input Output Female 15 pin HD Female 15 pin HD Connector Connector Input Level 0.5 ~ 2.0Vp-p Output Level 0.5 ~ 2.0Vp-p...

  • Page 36: Mod-In-Vga

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 5.2.5. MOD-IN-VGA Video Audio Input 4 VGA Input 4 Stereo Audio Input Input 3-pin Pluggable Female 15 pin HD Connector Connector Terminal Block >90dB @20Hz ~ Input Level 0.5 ~ 2.0Vp-p CMRR...

  • Page 37: Mod-In-Cat6-4K & Mod-Out-Cat6-4K

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 5.2.7. MOD-IN-CAT6-4K & MOD-OUT-CAT6-4K MOD-IN-CAT6-4K MOD-OUT-CAT6-4K Input 4 RJ45 Output 4 RJ45 Input Output Female RJ45 Female RJ45 Connector Connector Input Output 75Ω 75Ω Impedance Impedance Video General Transmission 1080p≤70M Bandwidth 6.75Gbps...

  • Page 38: Mod-In-Fiber & Mod-Out-Fiber

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) ≤ Transmission 1080P Switching 200ns (Max.) ≤ Distance 4Kx2K Speed Work Reference 0~50℃ 10%～90% Temperature Humility >70dB@ 100MHz- Return Loss <-30dB@ 5KHz 100M Supported Audio Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD...

  • Page 39: Au88 (Modular Matrix Switcher 32X32 (With Audio) Only)

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Min.～Max. Input 75Ω T.M.D.S 2.9V～3.3V Level Impedance Input Frequency 20Hz～20K Hz 100Ω (Differential) Impedance Response MOD-OUT-CAT6-4K Video Output Audio Output Output 4 HDBT Output 4 Stereo Output 4 Female RJ45 (with Output 3.5mm Stereo audio...
  • Page 40 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Frequency >90dB@20Hz~20KH 20Hz~20KHz, ±0.5dB CMRR Response Stereo 1% @ 1 KHz, 0.3% Channel >80dB@1KHz THD + Noise @ 20 KHz at nominal Separation level...

  • Page 41: Troubleshooting & Maintenance

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 6. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality connecting cable cable Output image with ghost Impropriate image setting Adjust corresponding of the displayer image settings...
  • Page 42 KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) Static becomes stronger Check the grounding and when connecting the Bad grounding make sure it is connected video connectors well. Wrong RS232 Type in correct RS232 communication communication Cannot control the device parameters parameters.

  • Page 43: After-Sales Service

    KanexPro HDMMX3232-4K Series Modular Matrix Switcher (with Audio) 7. After-sales Service If there appear some problems when running Modular Matrix Switcher 32x32 (with Audio), please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty.
