True 4K HDMI 3X1 Switcher with HDCP2.2
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future
reference.

Introduction

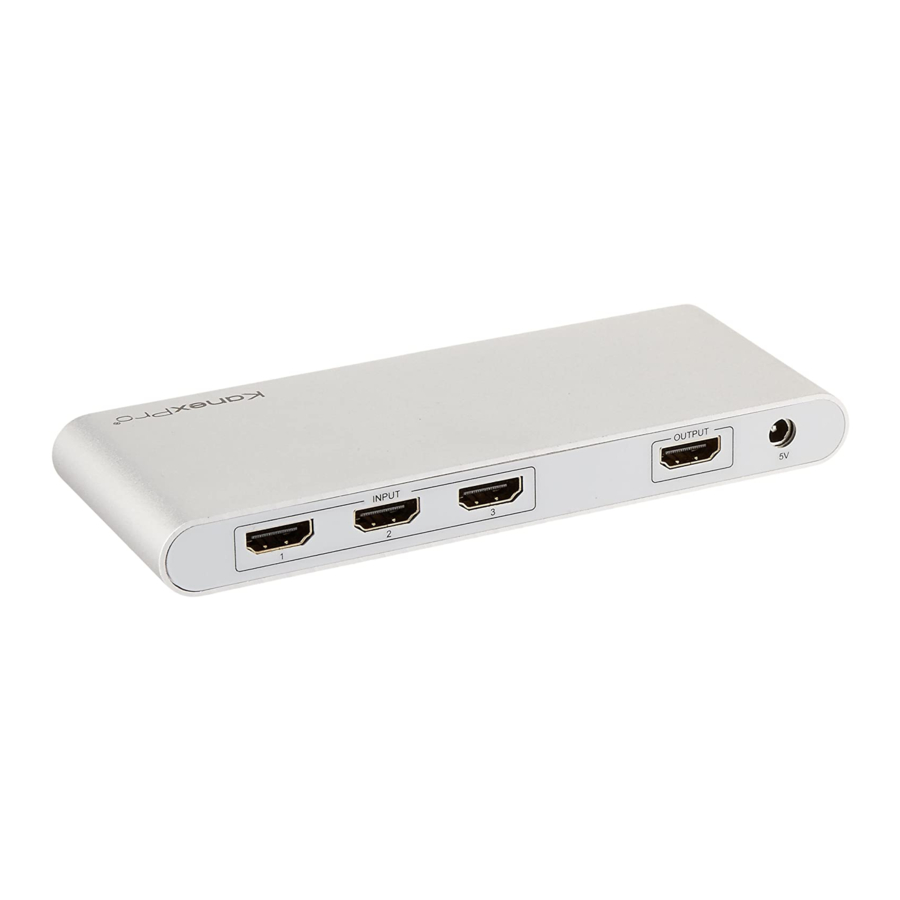

The KanexPro SW-HD20-3X14K is a high-performance, three HDMI input to one
HDMI output switcher engineered to support True4K UHD resolutions up to
4K@60Hz with HDCP2.2 specifications. It also supports all 3D TV formats and Full
HD 1080p resolutions. Instantly switch between your 4K HDMI devices to one
display and control the switch using IR remote included. Perfect for home theater
rooms, small offices and other applications where there is a need to switch three
HDMI sources to one 4K display.

Features

Auto switch three HDMI sources to one 4K display
True 4K@60Hz UHD, 1080p & 3D resolutions
4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.
4Kx2K @60Hz with 12bit YCBCR 4:2:0
Computer resolutions up to QSXGA@60Hz
Supports 3D frame sequential video formats to 1080p @60Hz
HDCP 2.2 compliant
Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master
Audio
High bandwidth for ultimate video experience
Front-panel LED's for input/ output signal presence
Ultra compact design
5V DC external power supply included
Includes IR remote
SW-HD20-3X1 4K
User Manual
True 4K HDMI 3X1 Switcher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-HD20-3X1 4K and is the answer not in the manual?

Questions and answers

Summary of Contents for KanexPro SW-HD20-3X1 4K

  • Page 1 Please keep this manual for future reference. Introduction The KanexPro SW-HD20-3X14K is a high-performance, three HDMI input to one HDMI output switcher engineered to support True4K UHD resolutions up to 4K@60Hz with HDCP2.2 specifications. It also supports all 3D TV formats and Full HD 1080p resolutions.
  • Page 2 Package Includes UHD 3x1 HDMI Switcher--------------------------------- 1Pcs 5V/1A DC power adaptor-------------------------------- 1Pcs Remote Control--------------------------------------------- 1Pcs 38KHz IR Receiver Cable--------------------------------- 1Pcs User manual------------------------------------------------ 1pcs Specifications Video Bandwidth 300MHz/10.2 Gbps Input Ports 3 x HDMI (Female type) Output Ports 1 x HDMI (Female type) Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0,...
  • Page 3 The SW-HD20-3X14K is powered by an external 5VDC power supply included in the packaging. Before connecting any power supplies, be sure all source and sync devices interfacing with the SW-HD20-3X14K are powered down and unplugged. Connect the power supply to the electrical outlet first. Next connect the power jack to the SW-HD20-3X14K.
  • Page 4 5. INPUT BUTTON: Pressing ‘Input button’ will select between different input sources. Press the “Input Button” until the desired input source has been selected. Rear Panel 1. HDMI IN1, IN2, IN3: Using a high-speed HDMI cable, connect media devices to each input port via the HDMI output of your devices (Blu-Ray Player, Gaming Console, PC, etc.).
  • Page 5 Connection Diagram Warranty KanexPro warrants its products will greatly perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service for up three years. more information regarding warranty details, please visit: http://www.kanexpro.com/warranty/.
