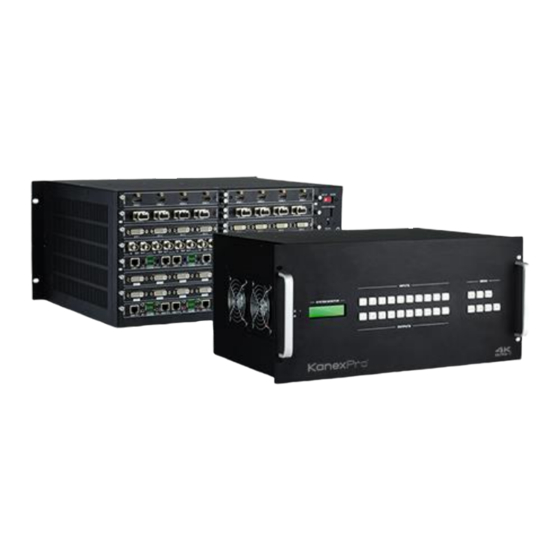

KanexPro HDMMX88-4K User Manual

Modular matrix switcher (with audio)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMMX88-4K Modular Matrix
Switcher
User Manual
All Rights Reserved
Version: HDMMX88-4K_2015V2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMMX88-4K and is the answer not in the manual?

Questions and answers

Related Manuals for KanexPro HDMMX88-4K

Summary of Contents for KanexPro HDMMX88-4K

  • Page 1 HDMMX88-4K Modular Matrix Switcher User Manual All Rights Reserved Version: HDMMX88-4K_2015V2.5...

  • Page 2: Fcc Statement

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated until August 2015.

  • Page 3: Safety Precautions

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Contents 1. Introduction ......................... 3 1.1. About Modular Matrix Switcher 8x8 (with Audio) ..........3 1.2. Features ......................3 1.2.1. Modular Matrix Switcher signal card (changeable cards) ....... 4 1.4 Package List ...................... 4 2.
  • Page 5 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 4.3.1. Connection of RS232 Communication Port .......... 21 4.3.2. RS232 Communication Commands ............. 22 4.4. TCP/IP Control (Optional) ................31 4.4.1. Control Modes ..................31 4.4.2. Control Modular Matrix Switcher 8x8 (with Audio) via TCP/IP communication software .................

  • Page 6: Introduction

    1. Introduction 1.1. About The HDMMX88-4K (with Audio) The KanexPro HDMMX88A-4K is an eight input by eight output modular matrix switcher chassis with two input slots and two output slots; each modular input or output card supports up to four device connections. As an add-on to front panel control, the HDMMX88A-4K can be controlled via IR, RS232, or TCP/IP connections.

  • Page 7: Modular Matrix Switcher Signal Card (Changeable Cards)

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) ▪ 2U rack-mountable aluminum enclosure ▪ Dual-Internal power supply (100Volt~240Volt AC, 50/60Hz) 1.2.1. Modular Matrix Switcher signal card (changeable cards) Modular Matrix Switcher 8x8 (with Audio) supports multiple signal cards as listed in the...
  • Page 8 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio)  1 x RS232 cable  1 x User manual Notes: Confirm all the accessories are included, if not, please contact with the dealers.

  • Page 9: Panel Description

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 2. Panel Description 2.1. Modular Matrix Switcher 8x8 (with Audio) 2.1.1. Front Panel Figure 2- 1 Front Panel of Modular Matrix Switcher 8x8 (with Audio) Name Description ① IR sensor, receive IR signal sent from IR remote Power ②...

  • Page 10: Rear Panel

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 2.1.2. Rear Panel Figure 2- 2 Rear Panel of Modular Matrix Switcher 8x8 (with Audio) Name Description ① INPUTS Audio input slot ② OUTPUTS Audio output slot Input signal card slots, 2 in total, insert necessary input cards here ③...
  • Page 11 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 4O-DV: output card, maximum four output signal, output signals from 4I-DV, or other kinds of input cards. Pin Layout of the DVI-I connector (Dual-Link). (Female) Function Function T.M.D.S.Data2- T.M.D.S.Data3+ T.M.D.S.Data2+ +5V Power Ground (return for T.M.D.S.

  • Page 12: Ds& 4O-Ds

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 2.2.2. 4I-DS& 4O-DS Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3& HDCP, and supports seamless transmission for high-definition DVI, HDMI, VGA, AV, YPbPr signals. Signal format can be modified via RS232 commands.

  • Page 13: Hd & 4O-Hd

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) DVI- YPbPr: Signal Signal GREEN BLUE Other pins are unused. DVI- VGA (female): Signal Signal Horizontal Sync GREEN Analog Vertical Sync Analog Other pins are unused. 2.2.3. 4I-HD & 4O-HD HDMI signal card. (Please check the specification from 5.2.3) It boasts embedded EDID management, and supports DDC.

  • Page 14: Hs & 4O-Hs

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) TMDS Data 0+ No Connect TMDS Data 0 Shield TMDS Data 0- TMDS Clock- TMDS Clock TMDS Clock+ Shield 2.2.4. 4I-HS & 4O-HS Seamless HDMI signal card with auxiliary audio port (Please check the specification from 5.2.4)
  • Page 15 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) C-video& CVBS. Input signal can pass to output device through any kinds of output cards. 4O-VG: output card, maximum four VGA output signal and 4 stereo audio outputs, output video signal from 4I-VG, or other kinds of input cards, and output audio signal from the audio of the input signal.

  • Page 16: Sd & 4O-Sd

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) VGA- C-VIDEO: Signal Signal Other pins are not used. 2.2.6. MOD-IN-VGA VGA signal card. (Please check the specification from 5.2.6) Scale all inputs to 1080p or 1920x1200; Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS;...

  • Page 17: Tp & 4O-Tp

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) The BNC connector is shown as the figure below. Tip (+) Sleeve ( ) BNC Connector 2.2.8. 4I-SS Seamless SDI signal card (Please check the specification from 5.2.8) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive), support seamless transmission for high-definition signal up to 1080p;...

  • Page 18: Uh & 4O-Uh

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) How the indicators work: Color Definition Status Blink once powered on; Yellow Power Indicator Turn off when there is no power. Light when the port is connected with Green Link Indicator CAT5e/6;...

  • Page 19: Uf & 4O-Uf

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Note: When matching with output cards that do not support 4kx2k, adjust the input resolution to 1080p to enable reliable output. 4O-UH: output card, maximum four output signal, output signals from 4I-UH, or other kinds of input cards, HDCP compliant status settable via RS232 command The HDMI connector is same with 4I-HD&...

  • Page 20: Bt & 4O-Bt

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Multi-mode transmission may include the following cases: Single-mode optical fiber module& Multi-mode optical fiber cable Multi-mode optical fiber module& Multi-mode optical fiber cable Before using 4I-UF & 4O-UF, upgrade the front-board and backboard of MMX88A.
  • Page 21 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Balanced Audio Connection: Unbalanced Audio Connection:...

  • Page 22: System Connection

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 3. System Connection 3.1. Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe.

  • Page 23: Control Operations

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 4. Control Operations 4.1. Front Panel Button control Users can control Modular Matrix Switcher 8x8 (with Audio) rapidly and directly with its front panel buttons. Here is a brief operation guide to front panel buttons.

  • Page 24: Ir Remote Control

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 4.2. IR Remote control With the IR remote, Modular Matrix Switcher 8x8 (with Audio) could be controlled remotely. As the function buttons on the IR remote are the same with the ones on the front panel, the IR remote shares the same operations and commands with the control panel.

  • Page 25: Rs232 Communication Commands

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Function Unused Transmit Receive Unused Ground Unused Unused Unused Unused When Modular Matrix Switcher 8x8 (with Audio) connects to the RS232 port of a computer with control software, users can control it by that computer. To control the switcher, users need to use RS232 control software.
  • Page 26 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Communication protocol: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Description Feedback /*Type; Inquire the models information. MODULAR88A /%Lock; Lock front panel buttons. System Locked! /%Unlock; Unlock front panel buttons.
  • Page 27 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Save the present operation to the Save[Y]. preset command [Y]. [Y] ranges from 0 Save To F8 to 9. Recall From F8 V: 01->001 Recall[Y]. Recall the preset command [Y]. A: 01->001 …...
  • Page 28 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Restore factory default. All I/O connection will be restored to 0911%. straight through: 1->1, 2->2,…; saved operation status will remain the same. 4I-HS Set the brightness of input [x] to xx, USER/I/[x]:02xx%;...
  • Page 29 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Set the resolution of output [x] to Resolution USER/O/[x]:0813%; 1280x1080P @60Hz Out03 1920x1080P Set the resolution of output [x] to Resolution USER/O/[x]:0824%; 1024x768 @60Hz Out03 1024x768 Set the resolution of output [x] to Resolution USER/O/[x]:0826%;...
  • Page 30 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) USER/I/[x]:0617%; Restore input [x] to factory default. 0617% USER/I/[x]:0606%; Auto-adjust VGA signal 0606% USER/I/[x]:0698%; Update software 0698% 4I-VG Set the signal of input channel [x] to USER/I/[x]:0622%; 0622% VGA. Set the signal of input channel [x] to USER/I/[x]:0623%;...
  • Page 31 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Set the resolution of input [x] to USER/I/[x]:0629%; 0629% 1920x1080, 1080P Set the resolution of input [x] to USER/I/[x]:0620%; 0620% 1920x1200, WUXGA Set the resolution of input [x] to USER/I/[x]:0621%; 0621% 1600x1200, UXGA USER/I/[x]:0698%;...
  • Page 32 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Set the input source of output [x] to USER/O/[x]:0201%; 0201% YPbPr Set the input source of output [x] to USER/O/[x]:0202%; 0202% Set the input source of output [x] to USER/O/[x]:0203%; 0203% C-VIDEO...
  • Page 33 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) It will show the detail switch information when it switch. Example: when switch 1->2, it will feedback “AV01 to 02”. 6、 Transfer signals from an input channel to corresponding output channel: [x]#.

  • Page 34: Tcp/Ip Control (Optional)

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 4.4. TCP/IP Control (Optional) 4.4.1. Control Modes TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is 4001. IP & Gateway can be changed as you need, Serial Port cannot be changed.

  • Page 35: Control Modular Matrix Switcher 8X8 (With Audio) Via Tcp/Ip Communication Software

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Step1. Connect the TCP/IP port of the Modular Matrix Switcher 8x8 (with Audio) to Ethernet port of PC with twisted pair. Step2. Set the PC’s network segment to the same as the Modular Matrix Switcher 8x8 (with Audio).

  • Page 36: Tcp/Ip Configuration

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 2) After connect successfully, we can enter commands to control the Modular Matrix Switcher 8x8 (with Audio), as below: Enter your command here. Commands are the same with RS232 commands listed in 4.3.2 RS232...
  • Page 37 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) In this interface, you can:  Change website display language  Modify network settings: Go to Internet Settings -> WAN  Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select program file ->...

  • Page 38: Specification

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 5. Specification 5.1. Main Unit Control parts Serial control RS232, 9- female D 2 = TX, 3 = RX, 5 = port connector Configurations Front panel Installation Rack Mountable Buttons control Options...

  • Page 39: Ds & 4O-Ds

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 5.2.2. 4I-DS & 4O-DS 4I-DS 4O-DS Input 4 DVI Output 4 DVI Input Output Female DB24+5/HDMI Female DB24+5/HDMI Connector Connector Output Input Level T.M.D.S. 2.9V~3.3V T.M.D.S. 2.9V~3.3V Level Input Output 75Ω 75Ω...

  • Page 40: Hs & 4O-Hs

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 5.2.4. 4I-HS & 4O-HS 4I-HS 4O-HS 4 HDMI 4 HDMI Input Output 4 Analog Audio 4 Analog Audio 19-pin Type-A 19-pin Type-A Female Input Output Female 3-pin pluggable Connector Connector 3-pin pluggable...

  • Page 41: Sd & 4O-Sd

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 5.2.6. 4I-VA Video Audio Input 4 VGA Input 4 Stereo Audio Input Input 3-pin Pluggable Female 15 pin HD Connector Connector Terminal Block Input Level 0.5 ~ 2.0Vp-p CMRR >90dB @20Hz ~ 20KHz...

  • Page 42: Tp & 4O-Tp

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 5.2.8. 4I-SS Input Output Input 4 SDI Output 4 SDI Input Output Female BNC Female BNC Connector Connector General 8, 10, 12 bit Audio Signal SDI, HD-SDI, 3G-SDI Color Depth Transmission 1080p≤100M...

  • Page 43: Uf & 4O-Uf

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Frequency 20Hz～20K Hz Input Impedance 100Ω (Differential) Response 4O-UH Video Output Audio Output Output 4 HDMI Output 4 Stereo Output Output 3.5mm Stereo audio Female HDMI Connector Connector connector Min.～Max. Output 75Ω...

  • Page 44: Bt & 4O-Bt

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 1km (Single mode transmission, using Single Mode Optical Transmission Module and OM3 Single Mode Fiber Cable) Distance 300m (Multi-mode transmission, using Single/ Multi mode Optical Module and OM3 Multi-Mode Fiber Cable) Data Rate 10.2Gbit/s...

  • Page 45: Au88 (Modular Matrix Switcher 8X8 (With Audio) Only)

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) Standard EDID& HDCP Compliant with HDCP 1.4; Support manual EDID management Management 5.2.13. AU88 (Modular Matrix Switcher 8x8 (with Audio) Only) Input Output Input 8 stereo Output 8 stereo Input 5-pin pluggable...

  • Page 46: Troubleshooting & Maintenance

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 6. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality connecting cable cable Output image with ghost Impropriate image setting Adjust corresponding of the displayer image settings...
  • Page 47 KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) connectors well. Type in correct RS232 Wrong RS232 communication Cannot control the device communication parameters parameters. by control device (e.g. a PC) through RS232 port Send it to authorized Broken RS232 port dealer for checking.

  • Page 48: After-Sales Service

    KanexPro HDMMX88-4K Series Modular Matrix Switcher (with Audio) 7. After-sales Service If there appear some problems when running Modular Matrix Switcher 8x8 (with Audio), please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty.
