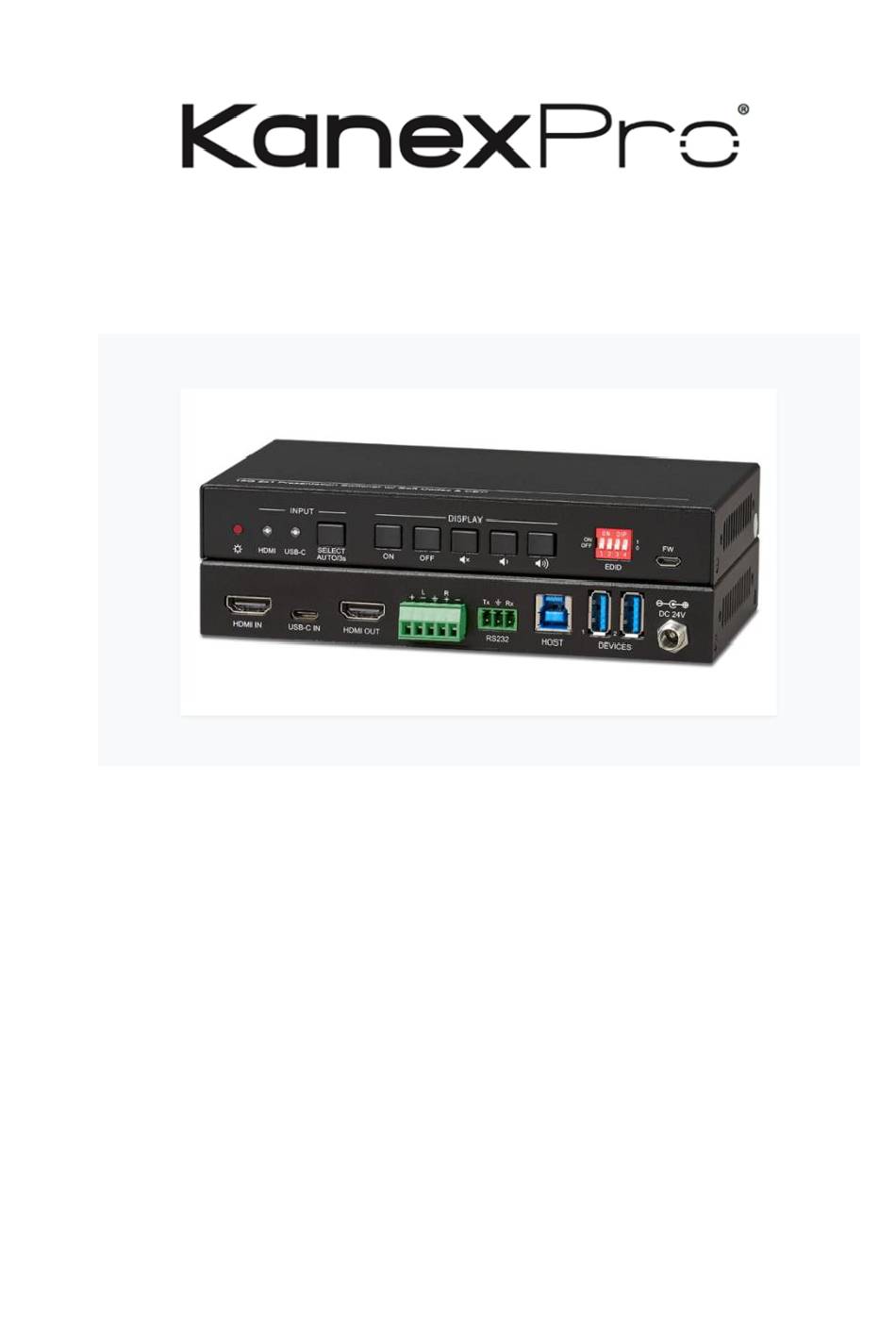

- Page 1 SW-2X14KUSBC 2x1 USB-C & HDMI Auto switcher with Video Conferencing & CEC Switch and Collaborate One USB-C & One HDMI Input with USB 3.0 for VTC's All Rights Reserved Version: SW-2X14KUSBC_2019V1.0...
- Page 2 This manual is only for operation instruction, please contact the local distributor or KanexPro for maintenance assistance. The functions described in this version were updated as of Jan 24 , 2019. For a constant effort to improve the product, we reserve the right to make functions or parameters changes without notice or obligation.
- Page 3 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
-
Page 4: Table Of Contents
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ....................... 2 2. Specification ........................ 4 3. Panel Description ......................6 3.1 Front Panel ......................6 3.2 Rear Panel ......................7 4. -
Page 5: Product Introduction

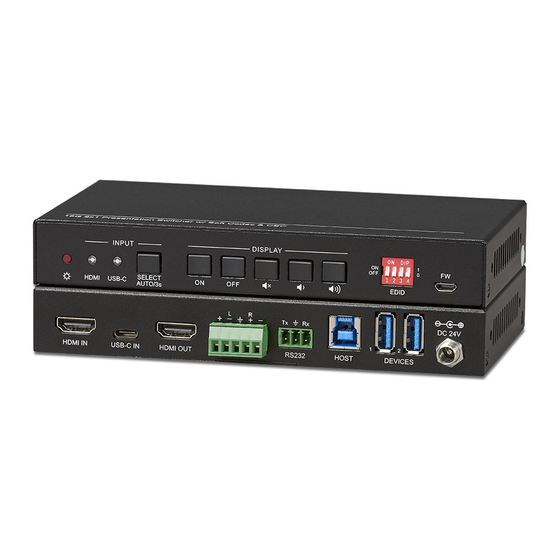

SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 1. Product Introduction The KanexPro SW-2X1USBC switcher. Intelligently designed to auto-switch between two devices with simultaneous audio. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8 bit and 1080p/60. USB-C Charging while you Connect The 2X1 switcher allows USB-C charging on the input port up to 60 Watts for MacBook Pros and iPads while you collaborate in huddle rooms. -
Page 6: Package List
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher ▪ Built-in EDID management ▪ 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision & HDCP 2.2. ▪ Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port. ▪ DIP switch based EDID management ▪... - Page 7 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher Note: Please contact us immediately at support@kanexpro.com if any damage or defect in the components found. Or call us at (888)975-1368 x 219...
-
Page 8: Specification
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 2. Specification Video Video Input (1) HDMI, (1) USB-C Video Input Connector (1) Type-A female HDMI, (1) Type-C USB HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit USB-C Input Resolution Up to 4Kx2K@30Hz 4:4:4... - Page 9 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher < 0.3dB, 1KHz sine at 0dBFS level (or max level L-R Level Deviation before clipping) Frequency Response <±0.5dB 20Hz ~ 20KHz Deviation 1KΩ and higher (supports 10x paralleled 10KΩ loads) Output Load Capability Stereo Channel Separation >70dB@1KHz...
-
Page 10: Panel Description
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 3. Panel Description 3.1 Front Panel INPUT DISPLAY 1 2 3 4 SELECT HDMI USB-C EDID AUTO/3s ① Power LED: The LED illuminates red when the device is power on. ② INPUT: A. -
Page 11: Rear Panel
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 3.2 Rear Panel DC 24V HDMI IN USB-C IN HDMI OUT AUDIO OUT RS232 HOST DEVICES ① HDMI IN: Type-A female HDMI input port to connect HDMI video source. ② USB-C IN: Type-C USB with charging capability to connect the MacBook or other device with USB-C output. -
Page 12: System Connection
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ⚫... -
Page 13: Button Control
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, press the SELECT AUTO/3s button repeatedly to cycle through the two video inputs, and the corresponding source LED illuminates orange immediately. -
Page 14: Edid Setting
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 5.4 EDID Setting The Extended Display Identification Data (EDID) is used for the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the switcher, the 4-pin DIP switch on the front panel can be used to set the EDID to a built-in fixed value. -
Page 15: Rs232 Control
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 6. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. 6.1 RS232 Control Software Installation: Copy the control software file to the control PC. - Page 16 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity...
-
Page 17: Rs232 Command
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 6.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: All commands needs to end with “<CR><LF>”. ⚫ In the commands, “[”and “]” are symbols for easy reading and do not need to be ⚫... -
Page 18: Source Switching
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 6.2.2 Source Switching Command Function Feedback Example Switch to HDMI input. @AV H #SET_AV H Switch to USB-C input. #SET_AV C @AV C @AV H Get the current input source. #GET_AV @AV C Enable auto switching mode. -
Page 19: Display Control
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 6.2.4 Display Control Command Function Feedback Example Mute/unmute the display audio through #SET_AUDIO_MUTE @AUDIO_MUTE_UNMUTE CEC and RS232 channels. Increase the display audio through CEC #SET_VOL + @VOL - and RS232 channels. Decrease the display audio through CEC... -
Page 20: Third-Party Device Control
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 6.2.6 Third-party Device Control Connect a third-party device (e.g. projector) to the RS232 port of switcher, the third- party device can be controlled simultaneously by the below RS232 commands while press the front panel button (ON, OFF, MUTE, VOLUME + or VOLUME -). - Page 21 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher The “XXXX” represents the ⚫ specific command (ASCII, up to 48 byte). Send the command "XXXX" to the third-party device while the VOLUME MUTE key is pressed. Command: The “[B]” represents the baud ⚫...
- Page 22 SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher The “XXXX” represents the ⚫ specific command (ASCII, up to 48 byte). Send the command "XXXX" to the third-party device while the VOLUME - key is pressed. Command: The “[B]” represents the baud ⚫...
-
Page 23: Panel Drawing
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 7. Panel Drawing DC 24V USB-C IN HDMI OUT AUDIO OUT RS232 HOST DEVICES HDMI IN 18G 2x1 Presentation Switcher w/ Soft Codec & CEC 168.0 mm INPUT DISPLAY 1 2 3 4... -
Page 24: Troubleshooting & Maintenance
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable. cable. Output image with snowflake Make sure the connection Fail or loose connection. is good... -
Page 25: Customer Service
SW-2X14KUSBC – 2x1 USB-C & HDMI Auto switcher 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice.
