- Page 1 HDSC12D HDSC12D 12-Input Presentation Switcher & Scaler with Audio & PIP & HDBaseT Output...
-
Page 2: Table Of Contents
HDSC12D Contents 1. Function ................4 2. Front Panel ................. 6 3. Real Panel ................6 4. Specification ............... 7 5. Video/Audio Description ........... 8 6. OSD Operation (On-Screen-Display) ......11 ... -
Page 3: Operation Notice
HDSC12D Operation Notice Equipment In order to ensure the credibility use of the product and the user’s safety, please comply with the following items during installation and maintenance: The system must be earthed properly. Please do not use two blades plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz. -
Page 4: Function
HDSC12D 1. Function HDSC12D is a presentation scaler switcher with digital amplifier, it is designed for multi-signal processing, signals of C-Video, S-Video, YPbPr, VGA and HDMI can be scaled to high-resolution HDMI & VGA format and switched out. And it can support firmware updating via USB. - Page 5 HDSC12D HD(1360×768), 1080P(1920×1080). 17: TCP/IP control available, using for network controlling.
-
Page 6: Front Panel

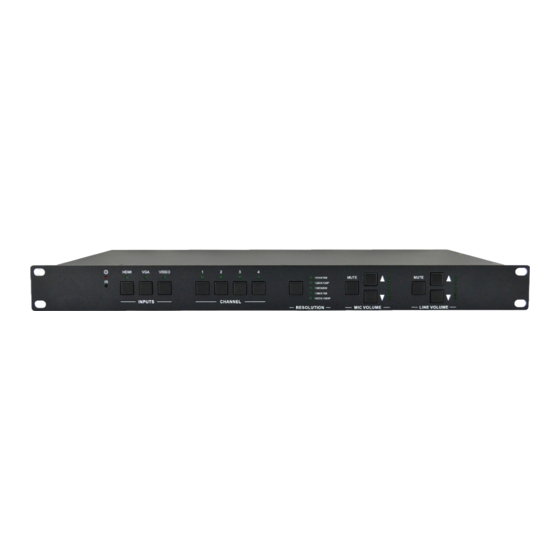

HDSC12D 2. Front Panel Front Panel description. ƒ … ‡ † ˆ „ ‚ 1. Power indicating LED. It will keep on red when the unit is connected with power. IR sensor. It is for IR remote controlling, receiving the signal of IR remote. -
Page 7: Specification
HDSC12D ⑨ Connector for POWER. ⑩ Grounding protection. 4. Specification Video Input Video Output 4 HDMI 4 VGA 1 HDMI Input 1 YPbPr Output 1 VGA 2 C-Video 1 HDMI TP 1 S-Video HDMI female connector HDMI female connector VGA(15 pin HD), female connector... -
Page 8: Video/Audio Description
HDSC12D Stereo Channel >80dB @1KHz CMRR >90dB @20Hz to 20K Hz Separation Frequency Response 20Hz~20K Hz Control Parts IR remote, Buttons & RS-232, Control/Remote Pin Configurations 2 = TX, 3 = RX, 5 = GND TCP/IP(Optional) General Temperature -20 ~ +70 ℃... - Page 9 HDSC12D...
- Page 10 HDSC12D 5.3 VGA input The VGA resolution is VESA standard, supporting: Resolution Resolution 720×400@70 Hz 1024×768@70 Hz 640×480@60 Hz 1024×768@75 Hz 640×480@72 Hz 1280×768 800×600@60 Hz 1280×1024@75 Hz 800×600@72 Hz 1360×768@60Hz 800×600@75 Hz 1920×1080 1024×768@60 Hz The bandwidth is up to 375MHz.
-
Page 11: Osd Operation (On-Screen-Display)
HDSC12D 6. OSD Operation (On-Screen-Display) The HDSC12D provides a nice OSD operation menu, with various functions and language. The operation introduction is: 6.1 Picture Setting The first icon from left of OSD menu is to set the picture parameter. It includes the pictures mode preset;... - Page 12 HDSC12D 6.3 System Setting The Third icon from left of OSD menu is the system setting. It includes the OSD language setting, audio listen only, and freeze output picture etc. Please check the picture below:...
-
Page 13: Ir Remote Description
HDSC12D 7. IR Remote Description Source select area, channels for inputs, including: 4 HDMI 4 VGA 2 C-VIDEO 1 S-Video 1 YPbPr Line volume control area, can Menu/ work when not in MENU mode. Volume control Direction and OK buttons area,... -
Page 14: Rs-232 Control Command Introduction
HDSC12D 8. RS-232 Control Command Introduction Communication protocol: Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Feed back (ASCII) Function Description (example) (ASCII) 0600% MUTE Line LINE Mute On 0601% UnMute Line LINE Mute Off... - Page 15 HDSC12D 0632% Check the output resolution Resolution: XXXXXXXX 0633% Check the image mode Picture Mode : XX 0634% Check the audio mode Sound Mode: XX 0635% Check the image aspect ratio Aspect Ratio: XX 0636% Check the brightness Brightness: XX...
-
Page 16: Firmware Updating
“OK” on the remote or send RS232 command 0609% to confirm update. The HDSC12D will capture the new firmware from USB flash disk. After updating finish, reboot and send the command “0617%” to reset to factory settings. -
Page 17: Troubleshooting & Maintenance
HDSC12D Troubleshooting & Maintenance 1. When images of terminal unit output with ghost, such as the projector output with ghost, please check the projector’s setting or try another high quality connection cord. 2. When there is a color losing or no video signal output, please check the input and output end connection of VGA cable.
