Summary of Contents for KanexPro SW-HD3X14K

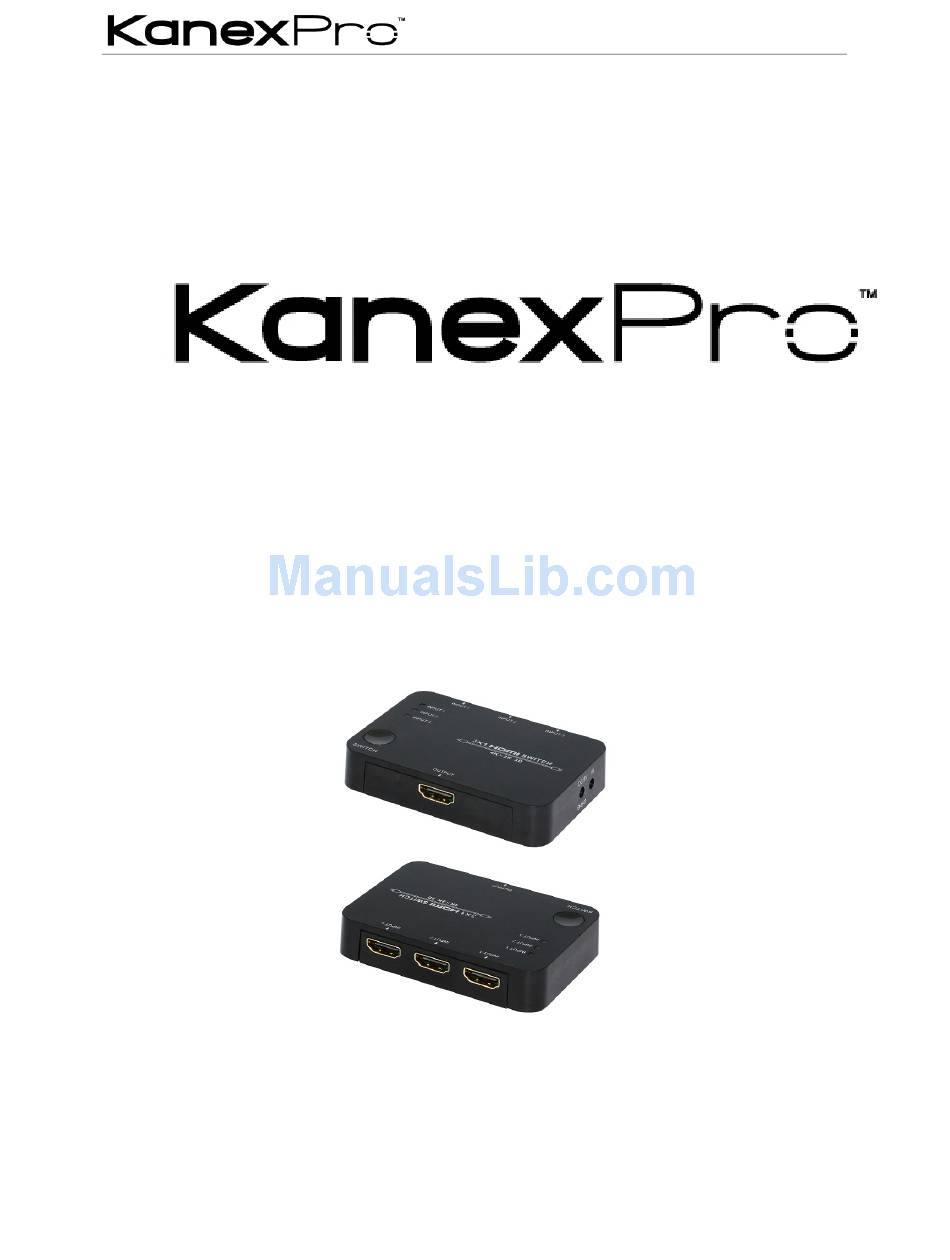

  • Page 1     SW-HD3X14K   SW-HD3X14K 3x1 HDMI Switcher with 4K Support...
  • Page 2: Table Of Contents

      SW-HD3X14K   Table of Contents   1. Introduction ..........................1 1.1. Introduction to SW-HD3X14K ..................1 1.2. Features ........................1 1.3. Package Contents ....................... 1 1.4. Specifications ......................2 1.5. 3X1 Switch Operation controls and functions .............. 3 1.6. Application Example ....................5 1.7.
  • Page 3: Introduction

    1. Introduction 1.1. Introduction to SW-HD3X14K The KanexPro 3x1 HDMI Switcher is a compact three input to one output switch providing 4K ultra-HD resolutions. It is a simple switcher designed to connect five HDMI sources such as Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV.
  • Page 4: Specifications

        SW-HD3X14K   1.4. Specifications Signal Input/Outputs: ▪ Input DDC Signal: 5 Volts p-p (TTL) ▪ Input & Output Signal: High Speed HDMI Spec 1.4a Operating Frequency: Vertical Frequency Range: 50/60Hz Video Amplifier Bandwidth: 2.95 Gbps per Channel Resolutions: ▪...
  • Page 5: 3X1 Switch Operation Controls And Functions

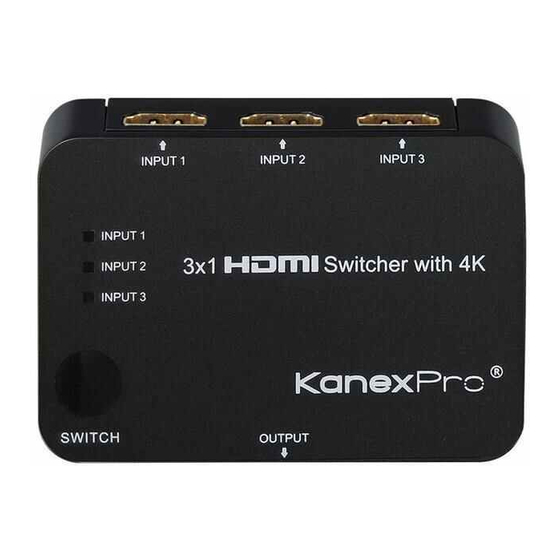

        SW-HD3X14K   1.5. 3X1 Switch Operation controls and functions ① Face Panel: Switch button, press this button to switch the input source ②③④ LED indicator, Indicates the HDMI input port selected corresponding to the LED light    ...
  • Page 6     SW-HD3X14K   Rear Panel: HDMI input port, connect with Blu-ray Player, PS4, Cable Box, Laptop, and Xbox One with HDMI cable                 ① ② Right Panel: DC 5V input port; IR receiver port: connect an IR extension cable and receive the IR Remote signal  ...
  • Page 7: Application Example

        SW-HD3X14K     1.6. Application Example (3X1 Switch)       5  ...
  • Page 8: Remote Control Functions

        SW-HD3X14K   1.7. Remote Control Functions ① IN1, IN2, IN3, IN4, & IN5: Press any of these buttons to force switch the input port. The LED light will indicate the corresponding input source. *Note: IN4, IN5 in 3X1 Switch product has not function* : Press this button to cycle switch between the input source(s).
  • Page 9: Warranty

    Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
