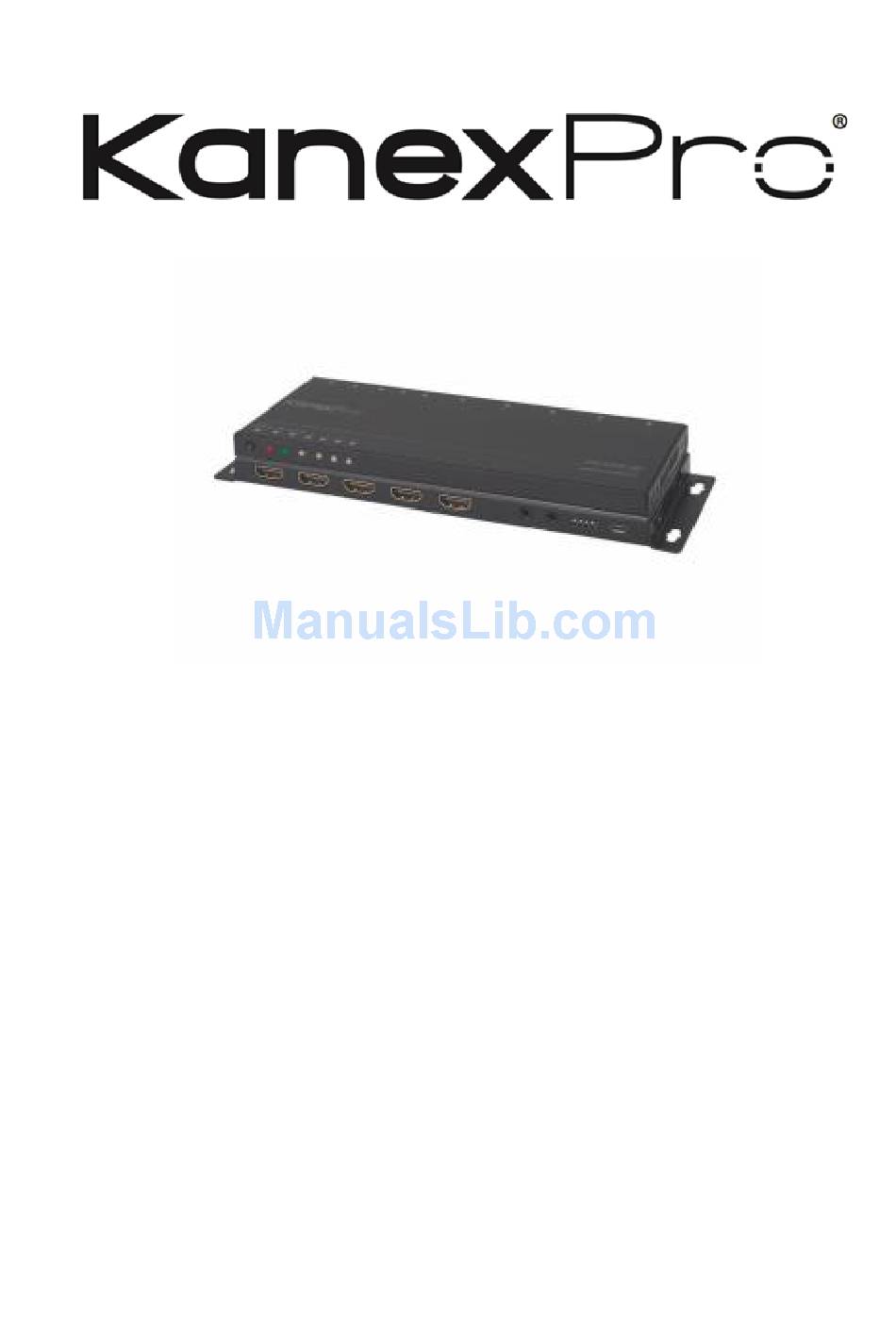

Page 1: User Manual
SW-4X1SL18G USER MANUAL Switch with 4K UHD, ARC, IR, RS-232 All Rights Reserved Version: SW-4X1SL18G_2016V1.0... -
Page 2: Fcc Statement
KANEXPRO SW-4X1SL18G Preface Read this user manual carefully before using this product. Pictures displayed in this manual are for reference only. Different models and specifications are subject to the actual product. This manual is only for operational instruction, not for any maintenance usage. The functions described in this version are updated till December 14, 2016. -
Page 3: Safety Precautions
KANEXPRO SW-4X1SL18G SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 4: Table Of Contents
KANEXPRO SW-4X1SL18G Table of Contents 1. Introduction ........................5 1.1 Introduction to SW-4X1SL18G ................5 1.2 Features ......................5 1.3 Package List ....................... 6 2. Panel Description ......................6 2.1 Front Panel ......................6 2.2 Rear Panel ......................7 3. System Connection ..................... 8 3.1 Usage Precautions ..................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to SW-4X1SL18G The KanexPro SW-4X1SL18G is an UltraSlim auto-switcher with 4–input and 1-output which auto-identifies input resolutions of up to four HDMI devices to one 4K display supporting full 4:4:4 YUV color space and 18 Gbps of bandwidth. -
Page 6: Package List
KANEXPRO SW-4X1SL18G 1.3 Package List 4x1 HDMI Switcher 5V power supply IR remote 3.5mm IR receiver Operation Manual NOTE: If there are defective parts or parts are missing, please contact your local dealer(s). 2. Panel Description 2.1 Front Panel... -
Page 7: Rear Panel
KANEXPRO SW-4X1SL18G NOTE: Output HDCP compliant status depends on input signal. When the input signal is with HDCP, then output signal is with HDCP and vice versa. 2.2 Rear Panel IN 1 IN 2 IN 3 IN 4 RS232 IR IN... -
Page 8: System Connection
NOTE: All the ports support hot-plug. 3.3 Application The SW-4X1SL18G is ideal for residential AV and corporate applications, such as under the conference room table. From here, you can run up to four HDMI cables to different points on the table, and then connect your devices (e.g. -
Page 9: Panel Control
“MODE” LED will light up. The auto-switching mode abides by the following principles: New input Once a new input signal is connected, the SW-4X1SL18G will switch to the new signal automatically. Power Rebooting The SW-4X1SL18G supports “power off” memory function. If the last selected signal is still available, the switcher will output said signal. -
Page 10: Embedded Edid Invoking
KANEXPRO SW-4X1SL18G 4.2 Embedded EDID invoking The rear panel contains a 4-pin DIP switcher to invoke embedded EDID. The embedded EDID data and their corresponding DIP switcher status are shown in the below list. Status EDID 0000 Pass through (default) -
Page 11: Ir Control
SW-4X1SL18G 5. IR Control Connect an IR receiver to the IR IN port. The SW-4X1SL18G can be controlled via the included IR Remote. As CEC function, it is able to use the IR Remote to control the source or display device. Here is a brief introduction about the IR Remote:... -
Page 12: Rs232 Control
SW-4X1SL18G 6. RS232 Control The SW-4X1SL18G provides an RS232 port for serial port control. Connect the switcher to the control device (e.g. PC) with an RS232 cable and set the parameters in the right manner. The control device can control the switcher via designed software. -
Page 13: Rs232 Commands
KANEXPRO SW-4X1SL18G Parameter Configuration area Monitoring area, indicates Monitoring area, indicates whether the command whether the command sent works. sent works. Command Sending area Command Sending area 6.3 RS232 Commands 6.3.1 Switching Commands Function Command Feedback Example Switch to HDMI input 1. -
Page 14: Edid Customizing
KANEXPRO SW-4X1SL18G 6.3.2 EDID Customizing Function Command Feedback Example Query the current EDID EDIDInfo% Customize EDID. EDIDSxx% Remove all customized EDID. EDIDR% Besides the 6 embedded EDID, there are 9 EDIDs that can be customized as needed. Firstly, send the command “EDIDSxx%” (XX=ID=07~15), and then click “Load File” on the RS232 control software to load the customized EDID file (.bin). -
Page 15: Display Device Control
KANEXPRO SW-4X1SL18G Back [CMD]: blue ray back. SRCBack% Confirm (OK) [CMD]: blue ray OK. SRCOk% Exit [CMD]: blue ray Exit. SRCExit% Up direction [CMD]: blue ray up. SRCUp% Down direction [CMD]: blue ray down. SRCDown% Left direction [CMD]: blue ray left. -
Page 16: Firmware Upgrade
KANEXPRO SW-4X1SL18G 7. Firmware Upgrade This switcher contains a USB port for online firmware upgrade on the rear panel. Follow these steps to upgrade firmware: Connect control PC to the USB port of this switcher with USB cable. Step1. Open “My Computer”, and then find the new disk named BOOTDISK. -
Page 17: Specification
KANEXPRO SW-4X1SL18G 8. Specification Input Signal 4 HDMI Input Connector Female Type-A HDMI Output Signal 1 HDMI Output Connector Female Type-A HDMI Control Signal 1 IR IN; 1 RS232 Control Connector 2 3.5mm mini jacks Video Signal HDMI2.0& HDCP2.2 Audio Signal... -
Page 18: Troubleshooting & Maintenance
KANEXPRO SW-4X1SL18G 9. Troubleshooting & Maintenance Problems Causes Solutions Color losing or no video signal output in HDMI The connecting cables Check whether the cables display may not be connected are connected correctly No HDMI signal output in correctly or it may be and in working condition. -
Page 19: After-Sales Service
Detailed failure situations. The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor or contact kanexpro.com or call us at 888-975-1368 for further support. 19 | P a g e... - Page 20 KanexPro has been advised of the possibility of such damages.
- Page 21 KANEXPRO SW-4X1SL18G 1405 Pioneer Street Brea, CA 92821 22 | P a g e...
