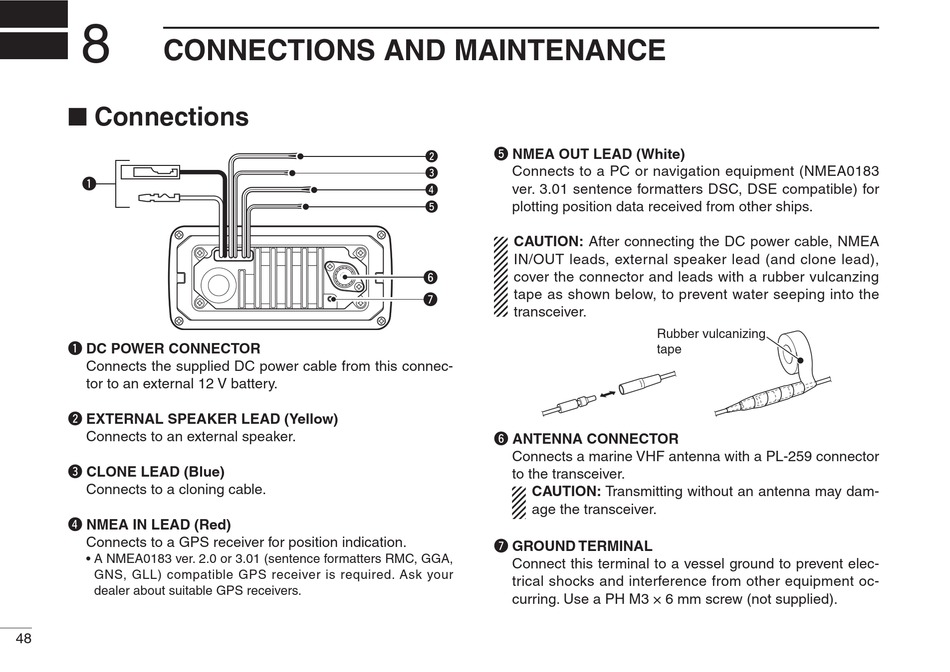

CONNECTIONS AND MAINTENANCE

n Connections
q
q DC POWER CONNECTOR
Connects the supplied DC power cable from this connec-
tor to an external 12 V battery.
w EXTERNAL SPEAKER LEAD (Yellow)
Connects to an external speaker.
e CLONE LEAD (Blue)
Connects to a cloning cable.
r NMEA IN LEAD (Red)
Connects to a GPS receiver for position indication.
• A NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC, GGA,
GNS, GLL) compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
48
t NMEA OUT LEAD (White)
w
Connects to a PC or navigation equipment (NMEA0183
e
ver. 3.01 sentence formatters DSC, DSE compatible) for
r
plotting position data received from other ships.
t
CAUTION: After connecting the DC power cable, NMEA
IN/OUT leads, external speaker lead (and clone lead),
cover the connector and leads with a rubber vulcanzing
y
tape as shown below, to prevent water seeping into the
u
transceiver.
y ANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connector
to the transceiver.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
u GROUND TERMINAL
Connect this terminal to a vessel ground to prevent elec-
trical shocks and interference from other equipment oc-
curring. Use a PH M3 × 6 mm screw (not supplied).
Rubber vulcanizing
tape
