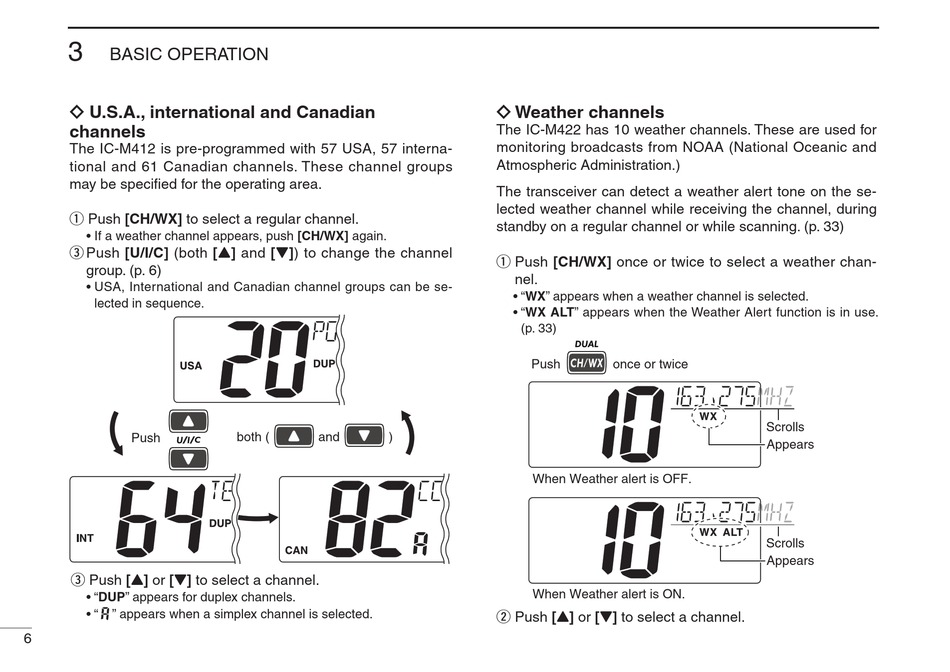

Icom IC-M412 Instruction Manual page 12

3
BASIC OPERATION
ï U.S.A., international and Canadian
channels
The IC-M412 is pre-programmed with 57 USA, 57 interna-
tional and 61 Canadian channels. These channel groups
may be specified for the operating area.
q Push [CH/WX] to select a regular channel.
• If a weather channel appears, push [CH/WX] again.
e Push [U/I/C] (both [Y] and [Z]) to change the channel
group. (p. 6)
• USA, International and Canadian channel groups can be se-
lected in sequence.
Push
e Push [Y] or [Z] to select a channel.
• "DUP" appears for duplex channels.
• " " appears when a simplex channel is selected.
6
both ( and )
ï Weather channels
The IC-M422 has 10 weather channels. These are used for
monitoring broadcasts from NOAA (National Oceanic and
Atmospheric Administration.)
The transceiver can detect a weather alert tone on the se-
lected weather channel while receiving the channel, during
standby on a regular channel or while scanning. (p. 33)
q Push [CH/WX] once or twice to select a weather chan-
nel.
• "WX" appears when a weather channel is selected.
• "WX ALT" appears when the Weather Alert function is in use.
(p. 33)
Push once or twice
When Weather alert is OFF.
When Weather alert is ON.
w Push [Y] or [Z] to select a channel.
Scrolls
Appears
Scrolls
Appears
