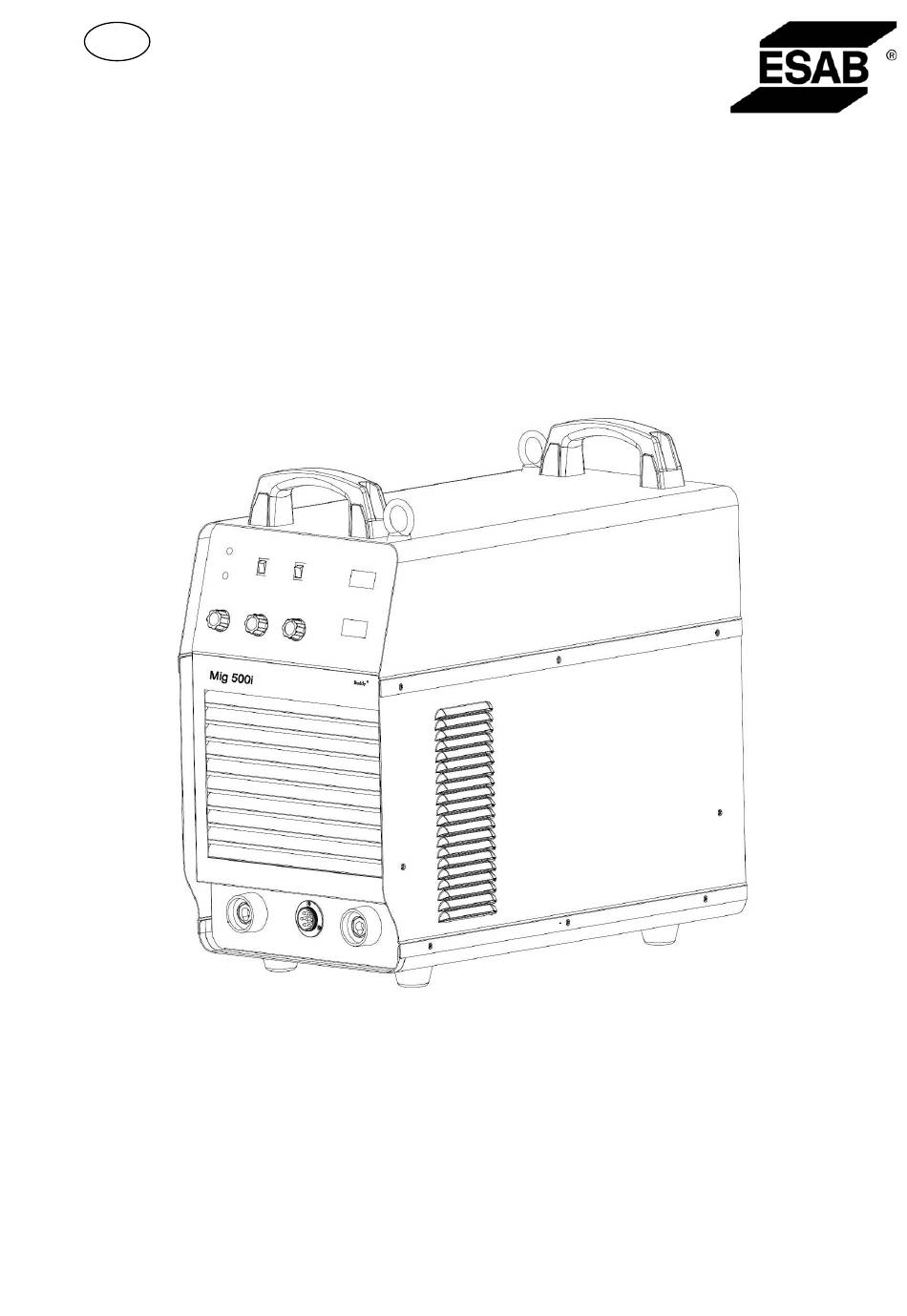

- Page 1 ™ Buddy Mig 500i Instruction manual 0463 335 074 GB 20120507 Valid for serial no. 209-xxx-xxxx...
-
Page 2: Table Of Contents
Welding leads and clamps.……………………………………………………..…. 10 7 FAULT TRACING ..………………………………………………………… 11 8 ORDERING OF SPARE PARTS .………………………………………… 11 DIAGRAM …………………………………………………………….……..… 12 ORDERING NUMBERS ………………………………………….……..…… 13 ACCESSORIES ……..………………………………………………………… 14 Rights reserved to alter specifications without notice. - 2 - © ESAB AB2012... -
Page 3: Safety
SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 4 Do not use the power source for thawing frozen pipes. CAUTION! Read and understand the instruction manual before installing or operating. CAUTION! This product is solely intended for arc welding only. ESAB can provide you with all necessary welding protection and accessories. - 4 - © ESAB AB2012...
-
Page 5: Introduction
(FCAW-S) when coupled with Feed 402 wire feeder and associated accessories. ESAB's accessories for the product can be found on page 14. Equipment The power source is supplied with an instruction manual, 3m mains cable and 5m return cable with clamp. -
Page 6: Installation
(see technical data). In this case it is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected. - 6 - © ESAB AB2012... - Page 7 Mains cable area mm 4 G 6 Phase current I 1eff Fuse Anti-surge Type C MCB Note! Use the welding power source in accordance with the relevant national regulations. (Check with relevant national regulations) - 7 - © ESAB AB2012...
-
Page 8: Operation
Fault indication would need to be reset manually by turning the main switch to off and then back on again. 3) Internal machine fault - operates if there are faults in the machine. Please contact ESAB Service technician for assistance. -
Page 9: Gas Check / Weld Mode
Connect the return cable to the other output on the power source. Secure the return cable’s contact clamp to the work piece and ensure that there is good contact between the work piece and the output for the return cable on the power source. - 9 - © ESAB AB2012... -
Page 10: Connection Of Welding And Return Cable
Clogged or blocked air inlets and outlets otherwise result in overheating. Welding gun and clamp Wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding. - 10 - © ESAB AB2012... -
Page 11: Fault Tracing
To find the required spare part, please refer to the Spare Parts List as shown on page 13. Spare parts may be ordered through your nearest ESAB dealer. See the last page of this publication to find the nearest ESAB office or dealers. -
Page 12: Diagram
Mig 500i Diagram - 12 - © ESAB AB2012... -
Page 13: Ordering Numbers
Type ™ 0700 301 000 Welding power source Buddy Mig 500i, 400V ™ 0459 839 079 Spare parts list Buddy Mig 500i, 400V The spare parts list is available on the internet at www.esab.com - 13 - © ESAB AB2012... -
Page 14: Accessories
Wheel Kit, 10m ..... . . 0700 301 010 Comprises of 2 fixed & 2 swivel castor wheels Trolley with Gas Tray....0700 301 011 - 14 - © ESAB AB2012... - Page 15 Notes - 15 - © ESAB AB2012...
