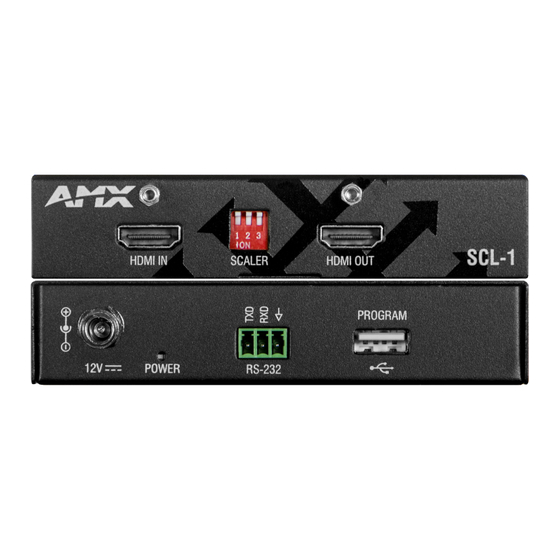

INSTRUCTION MANUAL
4K/60 SCALER
SCL-1
A V FOR AN IT WORLD
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCL-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMX SCL-1

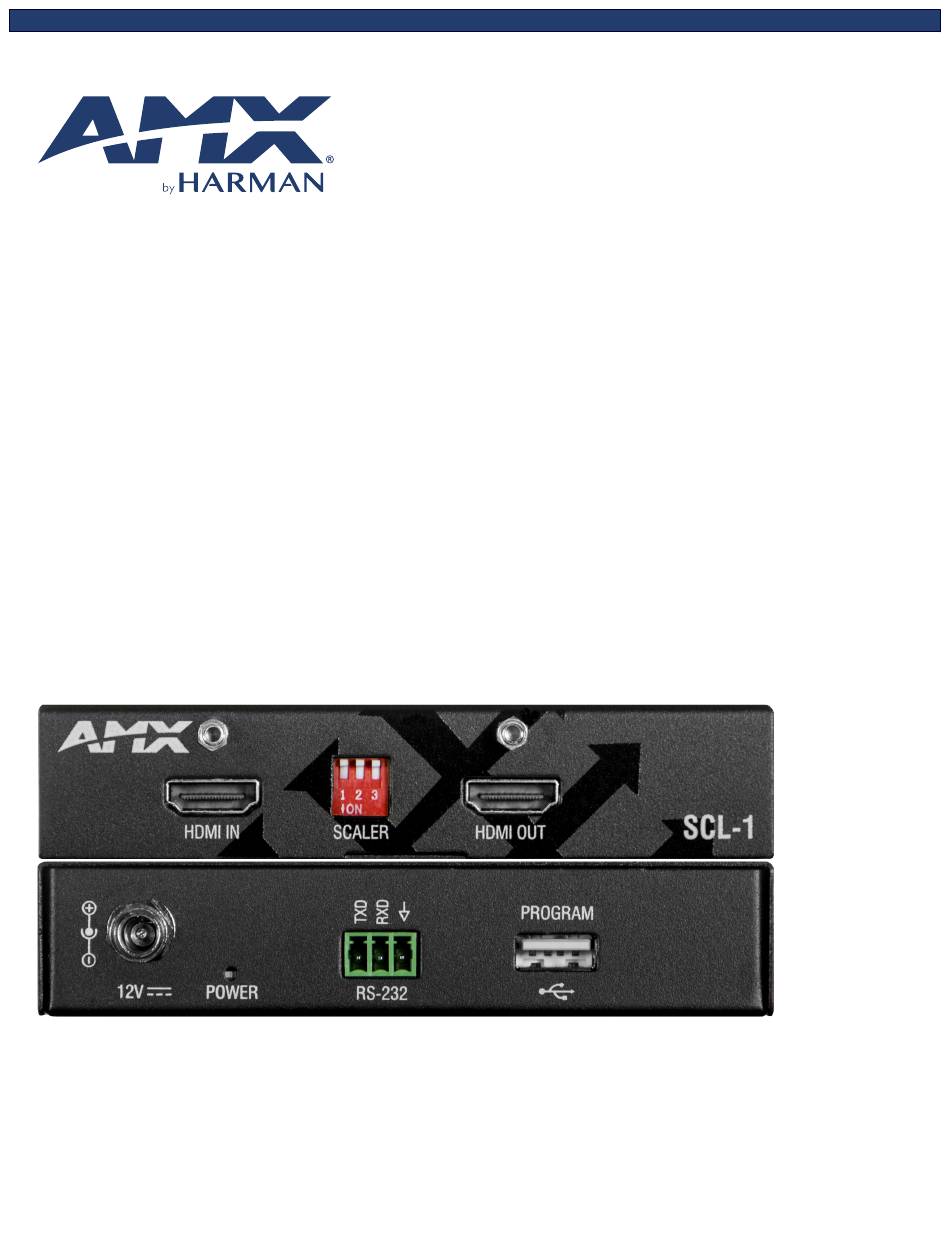

  • Page 1 INSTRUCTION MANUAL 4K/60 SCALER SCL-1 A V FOR AN IT WORLD ®...
  • Page 2: Safety Instructions

    COPYRIGHT NOTICE AMX© 2018, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed...
  • Page 3: Esd Warning

    Anyone performing field maintenance on AMX equipment should use an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord.
  • Page 4: Table Of Contents

    Table of Contents Table of Contents Safety Instructions ......................2 ESD Warning ........................3 Table of Contents ......................4 Overview ..........................5 Features ........................5 Package Contents ...................... 5 Specifications ........................6 Front Panel Description ....................8 Rear Panel Description ...................... 9 SCALER DIP Switch ......................
  • Page 5: Overview

    It was designed to be used in combination with products such as the local HDMI outputs on the AMX Precis 8x8 that do not have built-in scaling.
  • Page 6: Specifications

    Specifications Specifications SCL-1 Specifications General Dimensions 5.91 in (15.01 cm) depth 4.33” (11 cm) width .98” (25 mm) height) Weight Approx. 1.1 lb (0.50 kg) Shipping Weight Approx. 2.2 lb (1.00 kg) Mounting Options Includes V-Style surface mount brackets MTBF...
  • Page 7 Specifications Specifications SCL-1 Specifications (cont.) HDMI Compatible Formats HDMI, HDCP Signal Type Support HDMI, DisplayPort++ (input only with HDMI cable adapter) Output Signal Type HDMI, HDCP Output Connector HDMI Type A Female Output Scaling Yes, Auto or Manual Output Scaling...
  • Page 8: Front Panel Description

    Front Panel Description Front Panel Description Name Description HDMI IN Connects to HDMI source device or PR01-0808 matrix switcher HDMI OUT. SCALER Adjusts the output scaling. HDMI OUT Connects to HDMI display device. Instruction Manual - 4K/60 Scaler...
  • Page 9: Rear Panel Description

    Rear Panel Description Name Description DC 12V Connects the included 12V power adapter. POWER LED On: SCL-1 is powered on. Off: SCL-1 is powered off. RS232 For serial communication or firmware update. PROGRAM Connect to flash drive for upgrading Instruction Manual - 4K/60 Scaler...
  • Page 10: Scaler Dip Switch

    Scaling output adjustment by DIP switch. The default setting is Auto Scaler (Position: 000). Refer to the following table to reset. Note: When set to position 000, the SCL-1 also can be set through API commands. 1 2 3 Function...
  • Page 11: Installation

    Connect HDMI sources (Blu-ray player, games console, Satellite/cable media server etc.) to the HDMI IN port via an HDMI cable. Connect a PR01-0808 matrix switcher or an HDMI display device to the HDMI OUT port of SCL-1. Connect a PC to the RS232 port for API control.
  • Page 12: Wiring

    Installation & Wiring Wiring HDMI IN Display PR01-0808 HDMI IN HDMI OUT Power RS232 Upgrade Flash Drive Instruction Manual - 4K/60 Scaler...
  • Page 13: Connection Modes

    The SCL-1 will change to Standalone mode when it cannot detect the presence of PR01-0808. Standalone mode takes effect immediately. A reboot is not needed. Standalone Mode Settings: 1. EDID controlled by API commands through RS232 on SCL-1, copy EDID is default setting (always change EDID audio to 2CH): • 3840 x 2160@60_2ch •...
  • Page 14: Troubleshooting

    Check that the source input device has no problems, such as snow, mosaic or a damaged disc. If so, replace it with a normal input source. • Check that no compatibility issues exist between the SCL-1 and the display. If so, replace the display with other models. Instruction Manual - 4K/60 Scaler...
  • Page 15: Api Command List Instructions

    API Command List Instructions API Command List Instructions General rules for using BCS commands • Command strings typically are not case-sensitive. • All command strings must end with the Take command “T” which tells the system ot execute the command. •...
  • Page 16 API Command List Instructions API Command List Instructions (cont.) Function Description Syntax Example Command: Command: To execute a sink power by CEC CSP#T CSP1T[CR/LF] Return: Return: CSP#T CSP1T[CR/LF] Description: Description: CECPWR_ONOFF will control sink power on Executes the sink power on. or off SP#: #={0, 1} 0 : OFF...
  • Page 17 API Command List Instructions API Command List Instructions (cont.) Function Description Syntax Example Command: Command: To set output resolution CR#T CR1T Return: Return: CR#T CR1T Description: Description: R#: # = {1~27} Set Output resolution is Fixed 4096x2160@60. 1 : 4096x2160@60 2 : 4096x2160@30 3 : 4096x2160@25 4 : 4096x2160@24...
  • Page 18 API Command List Instructions API Command List Instructions (cont.) Function Description Syntax Example Command: Command: To determine the system’s Application ~VER! ~VER! Code version Return: Return: ~VER!( # ) ~VER!( 1.0 ) Description: Description: Get system’s version. The system’s version is 1.0. To upgrade the MCU Command: Command:...
  • Page 19 The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com. 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153 AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/...
