AMX CB-MSA-43 Quick Start Manual

Overview

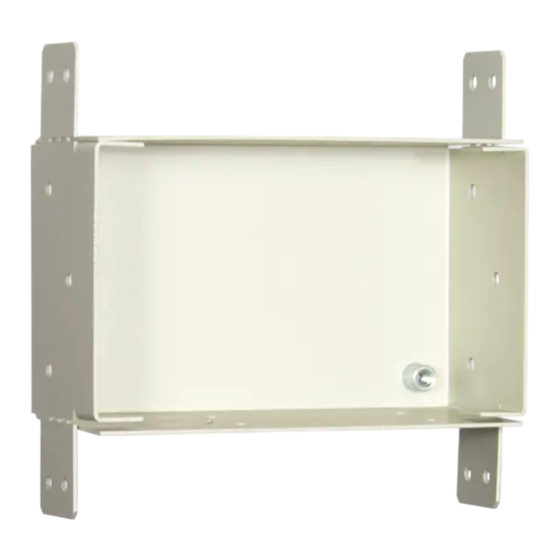

The CB-MSA-43 Rough-In Box (FG2265-10) is an optional accessory for the Modero
®
S Series 4.3" Wall Mount Touch Panel. It allows the panel to be mounted directly to
the studs/pre-wall.
The back of the Modero S Series 4.3" Wall Mount Touch Panel is contained within a
plastic outer housing or back box, and the back box attaches to the Rough-In Box. The
Rough-In Box kit includes a wall box and cover and mounting screws.
2.79"
(7.08 cm)
Rough-In Box With Cover
FIG. 1 CB-MSA-43 Rough-In Box - with front cover
WARNING: In order to guarantee a stable installation of the touch panel, the distance
between the CB-MSA-43 and the outer wall surface must be a minimum of .50 inches
(1.27cm) and a maximum of .1.50 inches (3.81cm).
• Refer to the 95-2265-10 diagram for detailed installation dimensions.
2.65"
(6.73 cm)
CB-MSA-43
Rough-In Box
Mounting Tabs
4.64"
(11.78 cm)
Mounting Tabs
4.61"
(11.70 cm)
B
Stud Mounting Tabs
Stud Mounting Tabs
Rough-In Box and Cover Plate for Modero S Series
Specifications
CB-MSA-43 (FG2265-10) Specifications
Dimensions (HWD) • Rough-In Box: 4.64" x 4.61" x 2.37" 
Weight
A
Certifications
Included 
Accessories:
Pre-Wall Installation of the CB-MSA-43 Rough-In Box
1. Remove the rough-in box cover (B in FIG. 1) before installation of the Rough-In
Box (A). Note: the cover MUST be removed before drywall installation. The
cover may be reinstalled after drywall installation using 4-40 screws (not
included). The mounting tabs on the front of the rough-in box (A) are intended to
allow additional anchoring of the rough-in box to its wall, but these can be
removed if necessary.
2. Fasten the CB-MSA-43 rough-in box to the stud through the holes on the Stud
Mounting tabs, using either nails or screws (not provided).
Remove the appropriate wiring knockouts from the rough-in box to 
3.
accommodate the cables being threaded through to the 7" Wall Mount Touch
Panel.
4. Thread the incoming Ethernet and USB wiring through the bottom knockout.
Leave enough slack in the wiring to accommodate installation of the touch panel.
5. Install the drywall/sheetrock before inserting the back box for the CB-MSA-43.
6. Cut out the opening for the Wall Mount Touch Panel back box where the wall has
Cover been placed over the Rough-In Box. Cutting out the surface slightly smaller than
what is outlined in the installation drawings, so that you can make any necessary
cutout adjustments, is very highly recommended.
NOTE: The front cover of the CB-MSA-43 (B in FIG. 1) should be installed after the
appropriate wiring is pulled to the Rough-In Box. The cover should then be removed
prior to the installation of the touch panel back box and discarded. Do NOT discard the
cover screws, as they are used to secure the Back Box.
7. Remove the matching knockouts on the touch panel's Back Box. Install the touch
panel's Back Box into the opening, allowing the stand-ups for the cover screws
to pass through the back of the Back Box. Secure the Back Box to the Rough-In
Box with the cover screws, pass the touch panel's wiring through the Back Box
knockouts, and install the touch panel.
4.50"
(11.43 cm)
Recommended
Wall Cutout
for the CB-MSA-43
Quick Start Guide
(11.78 cm x 11.70 cm x 5.60 cm)
• Rough-In Box Cover Plate: 2.79" x 4.61" x 0.47" 
(7.08 cm x 11.70 cm x 1.19 mm)
• With cover: 0.60 lbs (0.27 kg)
• Without cover: 0.40 lbs (0.18 kg)
• cTUVus Listed
• UL Listed
• Cover Plate for Rough-in Box (62-2265-22)
• Cover Plate to Rough-In Box Mounting Screws (2) 
(80-2265-01)
®
4.3" Panel
