AMX Video Encoder MAX-CSE Installation Manual

Video encoder
Hide thumbs

Advertisement

Quick Links

MAX-CSE Video Encoder
This unit (FG2178-70) allows audio and video signals to be delivered in real-time
across any IP network for broadcast to a virtually limitless number of destinations –
classrooms, boardrooms, training facilities, retail store branches, and other
commercial settings.
The MAX-CSE provides real-time encoding of both analog audio or video content into
both MPEG-2 and MPEG-4 formats for delivery across these same IP networks
directly to either a MAX-CSD10 Decoder, Modero VG-Series Touch Panel, or
computer (for immediate playback via a third-party streaming MPEG player).
The rear Ethernet port provides both 10/100 Ethernet connectivity and IEEE 802.3af
Power-over-Ethernet (PoE) which enables DC power to be supplied to this device over
the unused pairs of wires on the connected Ethernet cable. FIG. 1 shows the front and
rear views.
ID button
Status LED
Composite IN
(BNC)
S-Video IN
Ethernet
12 VDC
Power
Ethernet Speed and
Link Activity LEDs

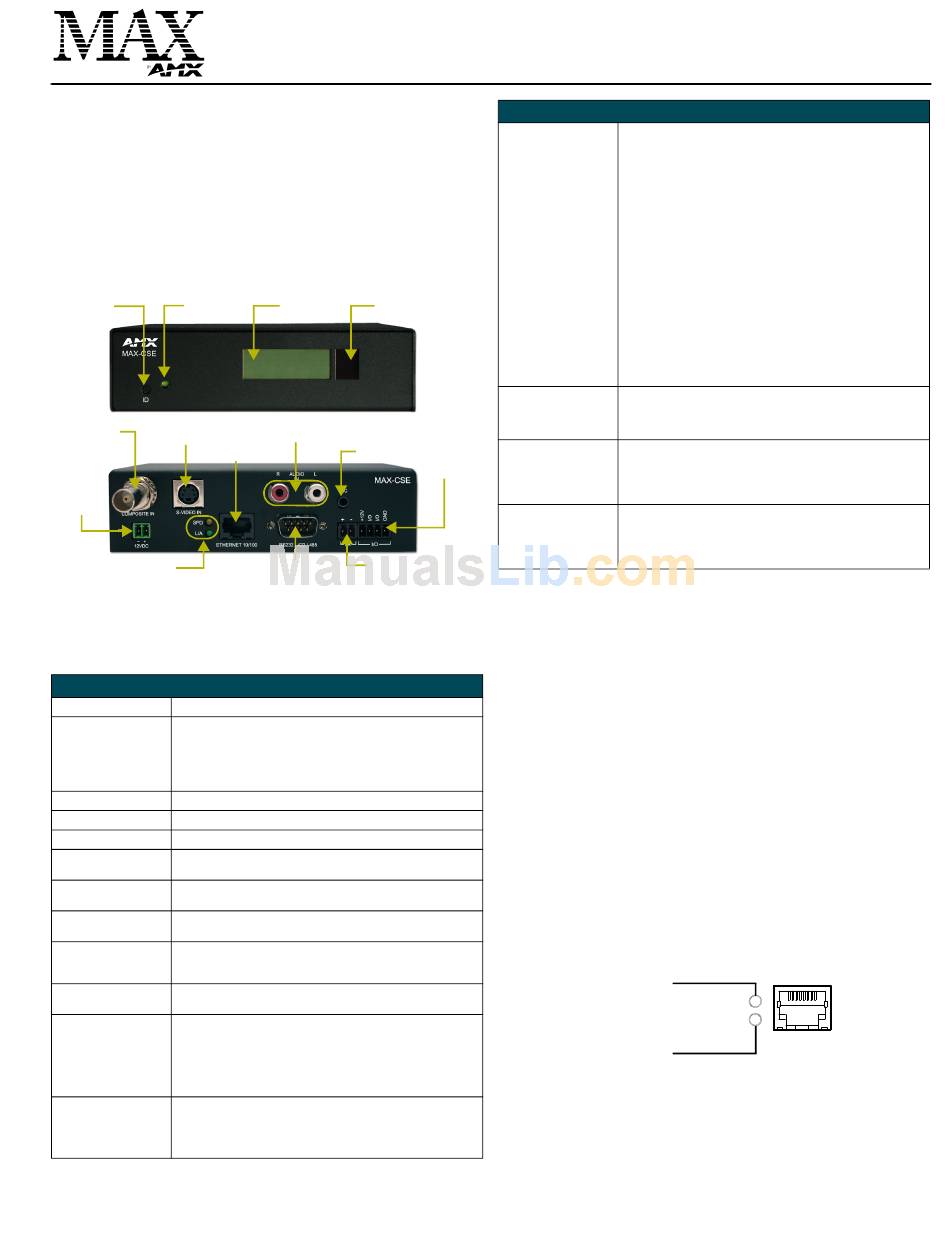

FIG. 1
MAX-CSE Video Encoder (front and rear views)
Note: This unit can be mounted onto either a flat surface or into an equipment rack by
first removing the front screws and then attaching it to an AC-RK.
Product Specifications
MAX-CSE Specifications
Dimensions (HWD):
1.58" x 5.54" x 6.95" (4.01 cm x 14.07 cm x 17.65 cm)
Power Requirements:
• 500mA @ 12VDC (6W)
• Optional 12VDC power input overrides PoE when used.
• Power requirements are usage dependant.
• Power Over Ethernet (PoE) is available.
• This product is intended to be supplied by a Listed external power
supply rated from 10 to 18 VDC, minimum 500 mA or equivalent.
Weight:
• 2.02 lbs (0.92 kg)
Enclosure:
• Metal with black matte finish
Certifications:
• FCC Part 15 Class B, CE, and UL listed
Video Inputs:
• Composite Video (via BNC).
• S-Video (via female S-Video connector)
Audio Inputs:
• Analog Stereo RCA connectors
• Microphone (1/8" stereo)
Supported Resolutions: • NTSC (480i)
• PAL (576i)
Supported Video
• MPEG-2 (2 Mbps - 6 Mbps)
Codecs:
• MPEG-4 (500Kbps - 3 Mbps)
• Adjustable Bit Rate: up to 6 Mbps
Supported Audio
• MPEG Audio Level 2 (MP2)
Codecs:
• MPEG Audio Level 3 (MP3)
Front Panel
• ID Pushbutton: Used to set the NetLinx ID (Device only)
assignment, and reset the unit to factory defaults.
Components:
• Status LED: Green LED blinks to indicate both the system and
communication status with the target Master.
• LCD Display: Provides system information such as the currently
used IP Address.
• IR Receiver: Receives 38KHz AMX IR codes.
Rear Panel Connectors: • COMPOSITE IN: BNC connector (female) supports Composite
Video Input (NTSC/PAL).
• 12VDC PWR: 2-pin 3.5mm mini-Phoenix (male) captive-wire
connector from an optional 12 VDC power supply (overrides PoE).
• S-VIDEO IN: Mini-Din4 port for composite S-Video input.
LCD Display
IR Receiver
Analog stereo audio
Microphone
Input/Output
port
IR/Serial port
RS232/422/485
port
MAX-CSE Video Encoder
MAX-CSE Specifications (Cont.)
Rear Panel Connectors
(Cont.):
(front)
Operating/Storage
Environment:
Included
Accessories:
Other AMX Equipment:
(rear)
Wiring Installation Procedures
The wiring parameters for the PWR, Serial, and Ethernet ports are described in detail
within the following sections.
Wiring the power connector
Use an external power supply, described in the Specifications table, to provide power
to the MAX-CSE through the rear 2-pin 3.5 mm mini-Phoenix connector (FIG. 1). The
incoming PWR and GND wires from the power supply must be connected to the
corresponding locations within the PWR connector.
Power-over-Ethernet connection
Caution: When using PoE, you must FIRST ground the unit to provide ESD
protection. Install a single wire into the (-) GND side of the rear green 2-pin PWR
connector, and then connect the terminal-end of this wire to a grounded source.
It is recommended that the length of this wire NOT exceed 6 ft. (1.83 m).
Any 802.3af-compliant PoE switch (such as the NXA-ENET24 PoE) can automatically
detect the 802.3af-compliant MAX device by its authenticated PoE signature and
sense its required load before applying power to the PoE Ethernet port.
Note: PoE connections work with all existing Category (CAT) 3, 4, 5, 5e or 6 network
cabling (including patch cables and patch-panels, outlets, and other connecting
hardware) without requiring modification.
Reading the Ethernet LEDs
The MAX-CSE uses a standard CAT5 Ethernet cable to provide 10/100 network
connectivity to the network (FIG. 2). LEDs indicate communication activity, connection
status, speeds, and mode information.
SPD - Speed LED lights (yellow) when
the connection speed is 100 Mbps
and turns Off when the speed
is 10 Mbps.
L/A - Link/Activity LED lights
(green) when the Ethernet
cables are connected and terminated
correctly. Blinks when receiving
Ethernet data packets.
FIG. 2
Ethernet LEDs

Installation Guide

• ETHERNET 10/100: RJ-45 port provides 10/100 Mbps network
communication and PoE. LEDs show communication activity,
connection status, speeds, and mode information (FIG. 2).
• AUDIO R/L: Two RCA connectors support line-level stereo input for
analog stereo signals.
• RS-232/422/485: 9-pin (DB9) port supports
RS-232/RS-422/RS-485 data output including:
- 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, and
115,200 Baud rates
- 8 or 9 Data bits
- 1 or 2 Stop bits
- Even, Odd, Mark, Space, and None parity settings
- CTS and RTS handshaking
- XON/XOFF handshaking
• MIC: 1/8" mini-stereo input jack.
• IR/Serial: 2-pin 3.5mm mini-Phoenix (male) captive-wire connector
provides IR/Serial control output by generating IR with the use of an
IR emitter (while in IR mode). This port supports high-frequency
carriers of up to 1.142 MHz and can also generate IR with no carrier
frequency.
• I/O: Two digital 4-channel binary I/O ports for contact closure
(accepts a 4-pin 3.5mm mini-Phoenix captive-wire connector).
Each input is capable of voltage sensing. Input format is software
selectable with interactive power sensing for IR ports.
• Operating Temperature: 0° to 45° C (32° to 113° F)
• Storage Temperature: -30º to 70º C (-22º to 158° F)
• Operating Relative Humidity: 5% to 85% (non-condensing)
• Operation intended for indoor use only.
• 2-pin 3.5 mm mini-Phoenix female PWR connector (41-5025)
• 4-pin 3.5 mm mini-Phoenix female I/O connector (41-5047)
• BNC to RCA Adapter (41-1074)
• CC-NIRC IR Emitter cable
• MAX-CSE Quick Start Guide
• AC-RK Accessory Rack Kit (FG515)
• CSB Cable Support Bracket (FG517)
• PMB Pole Mount Bracket (FG531)
• STS, Serial To Screw Terminal (FG959)
• Surface Mount Bracket Accessory (FG525)
SPD
L/A
ETHERNET 10/100
