Frymaster 47 Series Service & Parts Manual

Frymaster 47 Series Service & Parts Manual

Gas fryers
Hide thumbs Also See for 47 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
Price: $12.00
24-Hour Service Hotline 1-800-551-8633
819-5384
MAY 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Frymaster 47 Series

Summary of Contents for Frymaster 47 Series

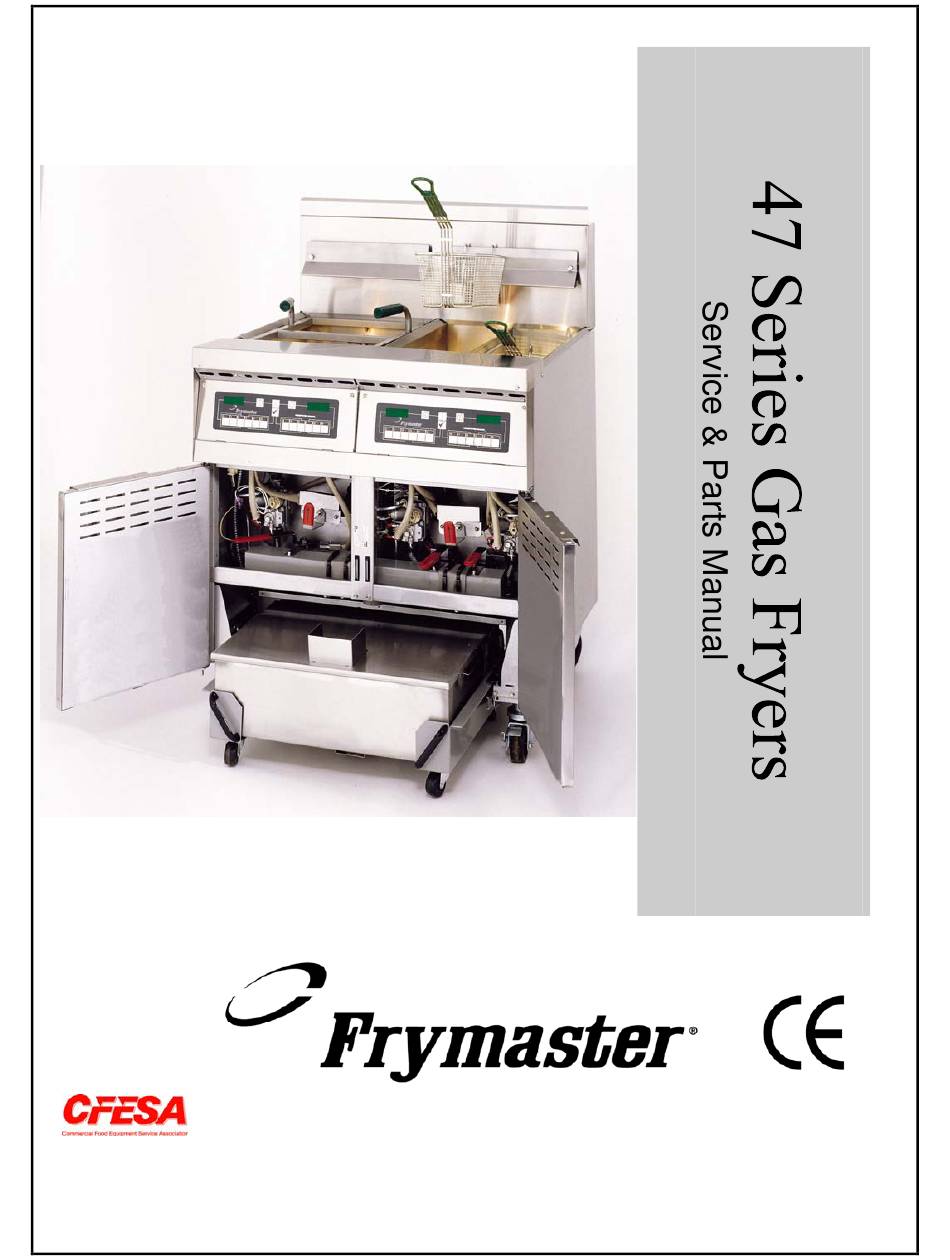

  • Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. Price: $12.00 24-Hour Service Hotline 1-800-551-8633 819-5384 MAY 2003...
  • Page 2 DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
  • Page 3 WARNING No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a hood. Questions? Call the Frymaster/Dean Service Hotline at 1-800-551-8633. CAUTION The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day.

  • Page 4: Table Of Contents

    47 SERIES GAS FRYERS TABLE OF CONTENTS CHAPTER 1: Service Procedures....................1-1 Functional Description......................... 1-1 Pilot System Configuration ......................1-1 Electronic Ignition Configuration..................... 1-2 Control Options..........................1-3 Interface Boards ..........................1-3 Thermostats............................ 1-8 Accessing Fryers for Servicing ....................1-8 Cleaning the Gas Valve Vent Tube ..................... 1-9 Adjusting the Burner Manifold Gas Pressure................
  • Page 5 47 SERIES GAS FRYERS TABLE OF CONTENTS CHAPTER 2: Parts List ......................2-1 Accessories ...........................2-1 Burner Manifold Assemblies and Component Parts..............2-2 Burner Ignition System Components ..................2-3 Gas Valve Assemblies and Connection Components ..............2-4 Gas Manifold Assemblies ......................2-5 Cabinet Assemblies and Component Parts ................2-6 2.6.1...

  • Page 6: Chapter 1: Service Procedures

    CHAPTER 1: SERVICE PROCEDURES 1.1 Functional Description 47 Series fryers contain a welded stainless steel frypot that is directly heated by gas flames that are diffused evenly over its lower surface by ceramic targets. In full-vat configurations, the flames originate from orifices in a U-shaped burner manifold positioned beneath the frypot.

  • Page 7: Electronic Ignition Configuration

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.1 Functional Description (cont.) Electronic Ignition Configuration In units configured for electronic ignition, an ignition module connected to an ignitor assembly replaces the pilot system. The ignition module performs four important functions: it provides fuse protection for the 24-volt circuit, provides an ignition spark, supplies voltage to the gas valve, and proofs the pilot flame.

  • Page 8: Control Options

    The interface board provides a link between the controller/computer and the fryer’s individual components without requiring excessive wiring, and allows the controller to execute commands from one central point. Two types of interface boards may be used in 47 Series fryers; the type used depends on the fryer configuration.
  • Page 9 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 806-5857: The electronic ignition board contains two types of relays. Heat relays (K1 and K3) operate at 12 VDC output from the controller. They switch 24 VAC to the main gas circuit when the unit calls for heat.
  • Page 10 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES The following table identifies the meaning associated with each of the LEDs arranged across the top of the interface board. NOTE: In full vat units, ignore the left-side LEDs. 806-5857 INTERFACE BOARD...
  • Page 11 LATER DESIGN INTERFACE BOARDS P/N 806-3398 and 106-0386 These standard interface boards are also used in a number of fryer types besides the 47 Series. The information contained in this section applies to 47 Series applications ONLY. Earlier design 806-3398 boards (used from June 1996 through July 1999) contain two heat relays (K1 and K2) that switch 24VAC to the ignition and gas valve circuits when the computer/controller heat logic circuit calls for heat.
  • Page 12 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES FREQUENTLY USED TEST POINTS FOR INTERFACE BOARDS P/N 806-3398 and 106-0386 Meter Test Test Setting Pins Results 12VAC Power to Controller 50VAC Scale 1 and 3 on J3 12-18 24VAC Power to Right Module...

  • Page 13: Thermostats

    Indicates 24 VAC to PWR via K1 (L) or K2 (R or F) " " Indicates open Drain Safety Switch (if installed) Not Applicable to 47 Series Fryers Thermostats Different types of thermostats are used in 47 Series fryers, depending on the fryers’ configuration.

  • Page 14: Accessing Fryers For Servicing

    (setpoints). The temperatures are programmed by means of a keypad on the face of the controller. All 47 Series fryers are equipped with a high-limit thermostat. In the event that the fryer fails to properly control the oil temperature, the high-limit thermostat prevents the fryer from overheating to the flash point.

  • Page 15: Adjusting The Burner Manifold Gas Pressure

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 2. Carefully unscrew the vent tube from the gas valve. NOTE: The vent tube may be straightened for ease in removal. 3. Pass a piece of ordinary binding wire (.052 inch diameter) through the tube to remove any obstruction.
  • Page 16 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Non-CE Standard Burner Manifold Gas Pressures Pressure 3.5" W.C. Natural 0.8 kPa 8.25" W.C. 2.5 kPa CE Standard Burner Manifold Gas Pressures Pressure (mbar) Natural Gas Lacq (G20) under 20 mbar Natural Gas Gronique *...

  • Page 17: Adjusting Ceramic Burner Target Spacing And Alignment

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.5 Adjusting Ceramic Burner Target Spacing and Alignment DANGER Drain the frypot or remove the handle from the drain valve before proceeding further. Proper spacing of the top edge of the ceramic burner targets is ¾-inch (13 mm) from the frypot side.

  • Page 18: Calibrating The Thermostat Control

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7 Calibrating the Thermostat Control NOTE: The fryer control panel must be hinged down from the control panel mounting-frame to perform thermostat calibration. In order to hinge the control panel down, the thermostat knob must be removed from its shaft.

  • Page 19: Replacing Fryer Components

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7 Calibrating the Thermostat Control (cont.) CAUTION The thermostat adjusting screw must not be moved while installing the flexible extension shaft. 13. Install the solid metal extension shaft on the end of the flexible shaft with the stop pin at the 12 o’clock position.

  • Page 20: Replacing The Temperature Probe

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.2 Replacing the Thermostat (cont.) 6. Remove the solid extension shaft from the end of the flexible shaft using an appropriately sized Allen wrench. Remove the flexible shaft from the thermostat shaft screw.

  • Page 21: Replacing The High-Limit Thermostat In Fryers With Thermostat Controls

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.4 Replacing the High-Limit Thermostat in Fryers with Thermostat Controls 1. Disconnect the fryer from the electrical supply. 2. Drain cooking oil/shortening below the level of the thermostat. 3. Remove the thermostat knob. Remove the screws from the upper left and right corners of the control panel.

  • Page 22: Replacing Control Panel Power Indicator Light In Fryers With Thermostat Controls

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.5 Replacing the High-Limit Thermostat in Fryers with Temperature Probes (cont.) 10. Apply Loctite™ PST567 thread sealant or equivalent to new thermostat threads. 11. Reverse steps 1 through 9 to install the replacement thermostat.

  • Page 23: Replacing Ceramic Burner Targets

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.8 Replacing Ceramic Burner Targets DANGER Drain the frypot or remove the handle from the drain valve before proceeding further. 1. Disconnect fryer from electrical and gas supplies. 2. Disconnect the wires from the gas valve terminal block, marking each wire to facilitate reconnections.

  • Page 24: Replacing The Gas Valve

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.9 Replacing the Gas Valve DANGER Drain the frypot or remove the handle from the drain valve before proceeding further. Disconnect fryer from electrical and gas supplies. Disconnect the wires from the gas valve terminal block, marking each wire to facilitate reconnections.

  • Page 25: Replacing Gas Valve High-Limit Thermostat Wire Adapter

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.11 Replacing Gas Valve High-Limit Thermostat Wire Adapter 1. Remove the pilot electrical fitting from the gas valve pilot coil. 2. Lift the molded plastic wire adapter assembly and wires out of the pilot coil.
  • Page 26 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.12 Replacing the Frypot (cont.) 13. Lay the interface board and bracket on top of the control shield with wires still connected. 14. Remove the louvered frame above the control panel opening.

  • Page 27: Troubleshooting And Problem Isolation

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES CAUTION Before installing thermostat/temperature probe, high-limit thermostat, and drain valve on replacement frypot, clean their threads and apply Loctite™ PST567 thread sealant or equivalent to the threads. 1.9 Troubleshooting and Problem Isolation This section is intended to provide technicians with a general knowledge of the broad problem categories associated with this equipment, and the probable causes of each.

  • Page 28: Improper Burner Functioning

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Problems Related to the Gas and/or Electrical Power Supplies The main indicators of this are that an entire battery of fryers fails to light and/or there are no indicator lights illuminated on the fryer experiencing ignition failure.
  • Page 29 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.2 Improper Burner Functioning (cont.) If popping occurs only during peak operating hours, the problem may be incorrect or fluctuating gas pressure. Verify that the incoming gas pressure (pressure to the gas valve) is in accordance with the appropriate CE or Non-CE Standard found in Section 1.3 of this manual, and that the pressure...

  • Page 30: Improper Temperature Control

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.2 Improper Burner Functioning (cont.) Fluctuating flame intensity is normally caused by either improper or fluctuating incoming gas pressure, but may also be the result of variations in the kitchen atmosphere. Verify incoming gas pressure in the same way as for "popping", discussed in the preceding paragraphs.

  • Page 31: Computer-Related Problems

    300°F (149°C) point by pressing the button and entering the code 1652. The test results will be displayed in the computer’s LED panel in minutes and seconds. The acceptable recovery time for the 47 Series of fryers is 2 minutes. 1-26...

  • Page 32: Filtration Problems

    Cause: Computer is compensating for oil temperature via the sensitivity setting. Corrective Action: Reprogram sensitivity setting for each product in accordance with programming instructions in the 47 Series Installation & Operation manual. 1.9.5 Filtration Problems The majority of filtration problems arise from operator error. One of the most common errors is placing the filter paper on the bottom of the filter pan rather than over the filter screen.
  • Page 33 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.5 Filtration Problems (cont.) • Shortening was solidified in the pan or filter lines. • The operator attempted to filter oil or shortening that was not heated. Cold oil and shortening are thicker and cause the pump motor to work harder and overheat.
  • Page 34 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.5 Filtration Problems (cont.) Blockage removal can be accomplished by forcing the item out with an auger or drain snake. Compressed air or other pressurized gases should not be used to force out the blockage.

  • Page 35: Leaking

    1.9.7 Modular Basket Lift Malfunctions 47 Series fryers may optionally be equipped with automatic basket lifts to ensure uniform cooking times. The lifts may be configured for manual control or for control via a Basket Lift Timer or Computer Magic III computer. Basket lifts come in pairs, although each operates independently.
  • Page 36 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.7 Modular Basket Lift Malfunctions (cont.) Computer/Controller Manual (Push-Button) Modular Basket Lift Simplified Schematic Modular Basket Lift Simplified Schematic 2-Pole Mech Timer N.O. Upper Limit Microswitch N.O. Upper Limit Microswitch 1 or 5...

  • Page 37: Interpretation Of Digital Controller Lights

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.7 Modular Basket Lift Malfunctions (cont.) Motor and Gear Problems The most likely problem to be encountered in this category is erratic motion of the lift due to a worn drive gear. Failure to keep the lift rod and bushings properly lubricated will cause unnecessary wear of the gear.

  • Page 38: Troubleshooting Guides

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.9.8 Interpretation of Digital Controller Lights (cont.) Power light on, heat light off, trouble light on, and melt light off: ● If the fryer oil temperature is below 410°F (210°C), the lights indicate one of the following: a.
  • Page 39 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.1 Initial Troubleshooting (cont.) PROBLEM PROBABLE CAUSES CORRECTIVE ACTION A. Pilot does not stay lit (fryer is on and A. Check high-limit switch. Switch thermopile output is approximately continuity should be "0". If not, high- 400 millivolts.

  • Page 40: Troubleshooting The 24 Vac Circuit: Electronic Ignition

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.2 Troubleshooting the 24 VAC Circuit: Electronic Ignition Units VERIFY DRAIN VALVE(S) IS/ ARE FULLY CLOSED Place ON/OFF switch in "ON" position (analog controllers) or press ON/OFF button to activate computer. Malfunctioning gas valve.
  • Page 41 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.2 Troubleshooting the 24 VAC Circuit: Electronic Ignition Units (cont.) Start here from preceeding page. Probable cause is failed Is 24 VAC present on Probable cause is failed pilot ignition module. Check...
  • Page 42 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.2 Troubleshooting the 24 VAC Circuit: Electronic Ignition Units (cont.) 24 VAC Transformer J4 PIN 4 LED 3 PILOT RELAY J1 PIN 4 J5 PIN 4 Left Ignition Right Ignition Module/Fuse Module/Fuse...

  • Page 43: Troubleshooting The 24 Vac Circuit: Non-Electronic Ignition

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.3 Troubleshooting the 24 VAC Circuit: Non-Electronic Ignition Units (With Computer Controls) Verify that drain valve(s) are fully closed, then turn controller on. Which LEDs are lit? Either or both 24V GV LED (with or...
  • Page 44 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.3 Troubleshooting the 24 VAC Circuit: Non-Electronic Ignition Units (With Computer Controls- cont.) 24 VAC Transformer J3 PIN 8 J1 PIN 8 LED 3 LED 2 LED 4 NOTE: If a Drain Safety...

  • Page 45: Troubleshooting The Temperature Probe

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.4 Troubleshooting the Temperature Probe (With Computer Controls) While still in frypot, inspect probe bulb for damage. Remove and replace if bent, dented or cracked. Inspect leads for fraying, burning, breaks and/or kinks.

  • Page 46: Probe Resistance Charts

    47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10.5 Probe Resistance Chart Probe Resistance Chart For use with H50 Series fryers manufactured with Minco Thermistor probes only. OHMS OHMS OHMS OHMS OHMS 1059 1204 1350 1493 1634 1070 1216 1361...
  • Page 47 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11.1 Standard Controls With Pilot Ignition 24 VAC 1-42...
  • Page 48 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11.2 Computer/Controller with Pilot Ignition 24VAC 12VAC 1-43...
  • Page 49 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11.3 Computer/Controller with Electronic Ignition– 240V-No Basket Lifts 1-44...
  • Page 50 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11.4 Filter Box Wiring- FootPrint III 1-45...
  • Page 51 47 SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11.5 Modular Basket Lift Wiring LEFT RIGHT SIDE SIDE 13-Ohm Resitors 12.5 µF 12.5 µF SEE NOTE BELOW. UPPER UPPER SWITCH SWITCH LOWER LOWER SWITCH SWITCH LEFT SIDE RIGHT SIDE NOTE: 208-250V units have...

  • Page 52: Chapter 2: Parts List

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.1 Accessories ITEM PART # COMPONENT 803-0209 Brush, Frypot Clean-out 803-0022 Basket, Twin 803-0099 Basket, Full 806-5518 Frypot Cover, Full-Vat 806-3232 Frypot Cover, Split-Vat 826-0993SP Handle Kit, Frypot Cover (Full- and Split-Vat) 803-0197 Frypot Clean-out Rod (Fryer’s Friend)

  • Page 53: Burner Manifold Assemblies And Component Parts

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.2 Burner Manifold Assemblies and Component Parts ITEM PART # COMPONENT 806-5927SP Burner Manifold Assembly, Full Vat, Complete 806-5928SP Burner Manifold Assembly, Dual Vat, Complete 910-2027 Standoff, Target- Rear 910-2031 Support, Target, Back Plate 809-0499 U-bolt &...

  • Page 54: Burner Ignition System Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.3 Burner Ignition System Components Red dot here indicates LP gas only. ITEM PART # COMPONENT Pilot Assembly w/Thermopile (for use w/Non-CE Pilot Ignition Systems) 810-0615 Natural Gas 810-0616 Propane Gas 810-1873...

  • Page 55: Gas Valve Assemblies And Connection Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.4 Gas Valve Assemblies and Connection Components ITEM PART # COMPONENT Gas Valve Assembly (for use w/CE Pilot Ignition Systems) 807-2091 Natural Gas 807-2127 Propane Gas 810-1155 CE Accessory Kit- (Converts Inlet/Outlet Flanges to ½" NPT)

  • Page 56: Gas Manifold Assemblies

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.5 Gas Manifold Assemblies Gas valves can be found in Section 2.4 ITEM PART # COMPONENT Gas Manifold 810-0995 FP247 810-0997 FP247-2L 810-0996 FP247-2R 810-0950 FP247-4 810-0960 FP347 810-0994 FP347-2L 810-0947 FP347-2R...

  • Page 57: Cabinet Assemblies And Component Parts

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.6 Cabinet Assemblies and Component Parts Cabinet Assembly (FP347 Illustrated)
  • Page 58 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 900-1959 Bracket, Filter Lock 809-0422 Screw, FootPrint III Cover 900-1957 Lock, Filter 809-0189 Washer, ¼ Flat 826-1372 Nut, Hex- ¼-20 Nickel Plated (Qty:10) 910-5244 Rail, Lower- Unitary (Left or Right)
  • Page 59 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 900-9415 Back, Upper- FP & MJ347 900-7658 Back, Upper- FP & MJ247 809-0266 Screw, #10-1/2 Phillips Head, Zinc Plated 824-0406 Top Cap, Triple 824-0407 Top Cap, Quad 824-0404...

  • Page 60: Door Assemblies And Component Parts

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.6.1 Door Assemblies and Component Parts ITEM PART # COMPONENT Door Assembly, Left 806-7383SP Door Assembly, Right 806-7384SP 900-2815 Liner, Door, Left or Right 824-0580SP Panel, Door, Left or Right 809-0545 Clip, Nylon Arrow...

  • Page 61: Component Box/Shield Component Parts

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST Component Box/Shield Component Parts 2-10...
  • Page 62 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT Board, Interface (Without Electronic Ignition) (also replaces 806-3398) 106-0386 807-0833 Relay, Heat (For 806-3398) 807-0834 Relay, Basket Lift- 12V 15A (For 806-3398) 806-5857 Board, Interface (With Electronic Ignition)

  • Page 63: Probes, High-Limits And Basketlift Timers

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.8 Probes, High-Limits and Basketlift Timers ITEM PART # COMPONENT 806-4206 Probe, Temperature Control (not for use with Thermostat Controllers) 210-0681 Probe Guard 806-7550 Thermostat, High-Limit (CE) 826-1177 Thermostat, High-Limit (Non-CE) Timer, Basket Lift, Electric...

  • Page 64: Operating Thermostat And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.9 Operating Thermostat and Related Components ITEM PART # COMPONENT 806-0183 Thermostat, Operating (for use with Thermostat Controller only) 810-0999 Shaft, Flexible 809-0157 Set Screw 809-0050 Nut, Hex 826-1361 Screw, Stop (Qty: 25)

  • Page 65: Computers And Controllers

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.10 Computers and Controllers ITEM PART # COMPONENT Computer Magic III 106-1149SP Full Vat 106-1184SP Dual Vat 106-1199SP Full Vat (CE) 106-1203SP Dual Vat (CE) Computer, Basket Lift Timer 106-2079SP Full Vat...

  • Page 66: Filter Base Assembly- Footprint Iii Series

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.11 Filter Base Assembly- FootPrint III Series ITEM PART # COMPONENT 900-1953 Bracket, Filter Pan Lock 900-5396 Support, Motor 826-1374 Screw, #10-½ Hex Head (Qty: 25) 823-2289 Support, Filter Pan 201-0755 Frame, Base, Left Side...

  • Page 67: Filter Motors, Pumps And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.12 Filter Motors, Pumps and Related Components Standard FP III Configuration (Prior to August 1997) Standard FP III Configuration (August 1997 and Later) 2-16...
  • Page 68 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT Motor and Gasket Kits 826-1712 100-115VAC 826-1266 208VAC 826-1270 230-250VAC 900-7558 Cover, Motor 826-1261 Pump, 4GPM (15LPM) (includes gasket 816-0093) 816-0093 Gasket, Pump/Motor 900-1958 Support, Oil Return 813-0062 Elbow, ½", 90°...

  • Page 69: Filter Pan Assembly- Footprint Iii Series

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.13 Filter Pan Assembly- FootPrint III Series ITEM PART # COMPONENT 823-2027 Cover, Filter Pan 810-1408 Ring, Hold-Down 900-8819 Screen 823-1979SP 810-1387 Retainer, Check Valve 900-5448 Strain Plate, Check Valve 810-0946 Spring, Check Valve...

  • Page 70: Oil Return Manifolds And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.14 Oil Return Manifolds and Related Components FP347 (Typical) ITEM PART # COMPONENT 807-2484 Valve, Vent, Solenoid, ¼" NPT (for use on manifold and pump) 810-1003 Valve, Ball 3-Way, 180° 810-1067 Flexline, Dormont ½ x 8-½"...

  • Page 71: Oil Return Valve Assembly

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.15 Oil Return Valve Assembly ITEM PART # COMPONENT 900-2110 Cover, Microswitch 807-2104 Microswitch 806-9385 Support, Microswitch 900-1950 Handle, Oil Return 900-2111SP Support, Oil Return Valve 810-1003 Valve, 180° 3-Way Ball 813-0463 Plug, Pipe, ½"...

  • Page 72: Drain Manifold Assembly And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.16 Drain Manifold Assembly and Related Components FP247 Configuration FP247-2R Configuration FP447-2L Configuration FP447-4R Configuration ITEM PART # COMPONENT 806-6374SP Clamp Assembly 816-0420 Seal (Connection Gasket) Drain Sections 823-2585 End, Left, Long for Full Vat- Vented...

  • Page 73: Filter Component Box Assemblies

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.17 Filter Component Box Assemblies ITEM PART # COMPONENT Complete Assemblies 806-8358SP 100-120V Replacement Filter Box Assembly 806-8359SP 208-250V Replacement Filter Box Assembly Components 806-8021SP Plug Assembly, FP III Non-Reversing (Upper Plug)

  • Page 74: Flue Assemblies And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.18 Flue Assemblies and Related Components The flue comes as a welded assembly. It is shown separated into two parts for clarification purposes. Rear Combustion Chamber Panel Assembly 2-23...
  • Page 75 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 823-2018 Flue Weld Assembly (No Insulation, Retainers, etc.) 806-5567SP Flue Assembly (Includes Insulation, Retainers, etc.) 900-4253 Strip, Flue Cap Retainer 816-0175 Insulation, Flue- Front 816-0174 Insulation, Flue- Rear...

  • Page 76: Frypot Assemblies And Related Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.19 Frypot Assemblies and Related Components 2.19.1 Frypot Components — Full-Vat 2-25...
  • Page 77 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 106-1625SP Frypot Assembly, Full Vat, Power Shower, Complete 823-3462SP Frypot, Full Vat (Insulation and Flue Assembly NOT INCLUDED) Front Combustion Chamber Components 930-3419 Baffle, Outer Front 812-0246 Insulation, Inner Layer...

  • Page 78: Frypot Components: Dual-Vat

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.19.2 Frypot Components — Dual-Vat 2-27...
  • Page 79 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 106-1624SP Frypot Assembly, Dual Vat, Power Shower, Complete 823-3460SP Frypot, Dual Vat, (Insulation and Flue Assembly NOT INCLUDED) 823-2016 Divider, Upper Combustion Chamber 900-4675 Panel, Front Combustion Chamber...

  • Page 80: Power Shower Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.20 Power Shower Components ITEM PART # COMPONENT 806-6302SP Power Shower Assembly, Dual Vat, Complete Power Shower Assembly, Full Vat, Complete 806-4503SP 809-0415 Screw, Cleanout 814-0001 Grip, Handle 826-1344 O-Ring (Qty: 5) 826-1390 Seal (Gasket—...

  • Page 81: Drain Valve Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.21 Drain Valve Components 2.21.1 Full-Vat Drain Valve Components ITEM PART # COMPONENT 806-7508SP Drain Valve Assembly, Full Vat, 1 ¼", Complete, Filter Units 810-1018 Valve, w/o Handle 806-8137 Bracket, Drain Safety Microswitch...

  • Page 82: Dual-Vat Drain Valve Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.21.2 Dual-Vat Drain Valve Components Compression Washers Flat Washer Right Side Left Side 2-31...
  • Page 83 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT 806-7507SP Drain Valve Assembly, Dual Vat, Left, 1", Complete, Filter Units Drain Valve Assembly, Dual Vat, Right, 1", Complete, Filter Units 806-7506SP 810-1114 Valve, Without Handle 806-8194 Bracket, Drain Safety Microswitch- Left Side...

  • Page 84: Modular Basket Lift Components

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.22 Modular Basket Lift Components 2-33...
  • Page 85 47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST ITEM PART # COMPONENT Mount, Modular Basket Lift** 200-2942 For use on units with 12-pin connectors 900-7655 For use on units with 6-pin connectors 806-5964SP Motor Assembly, Modular Basket Lift Capacitor, 12.5 µFarad, 250VAC Motor Run...

  • Page 86: Gas Conversion Kits

    47 SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.23 Gas Conversion Kits ITEM PART # COMPONENT 826-1143 Natural Gas to Propane, Honeywell (Non-CE) 826-1144 Propane to Natural Gas, Honeywell (Non-CE) 826-0962 Natural Gas to Propane, Robert Shaw (Non-CE) 826-0963 Propane to Natural Gas, Robert Shaw (Non-CE)
  • Page 87 Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135 Price: $12.00 SERVICE HOTLINE 819-5384 PRINTED IN THE UNITED STATES 1-800-551-8633 MAY 2003...
