3. Start Modem-TPS. On the Connection dialog box, select the
computer serial port your receiver is connected to and click
Connect (Figure 2-28).

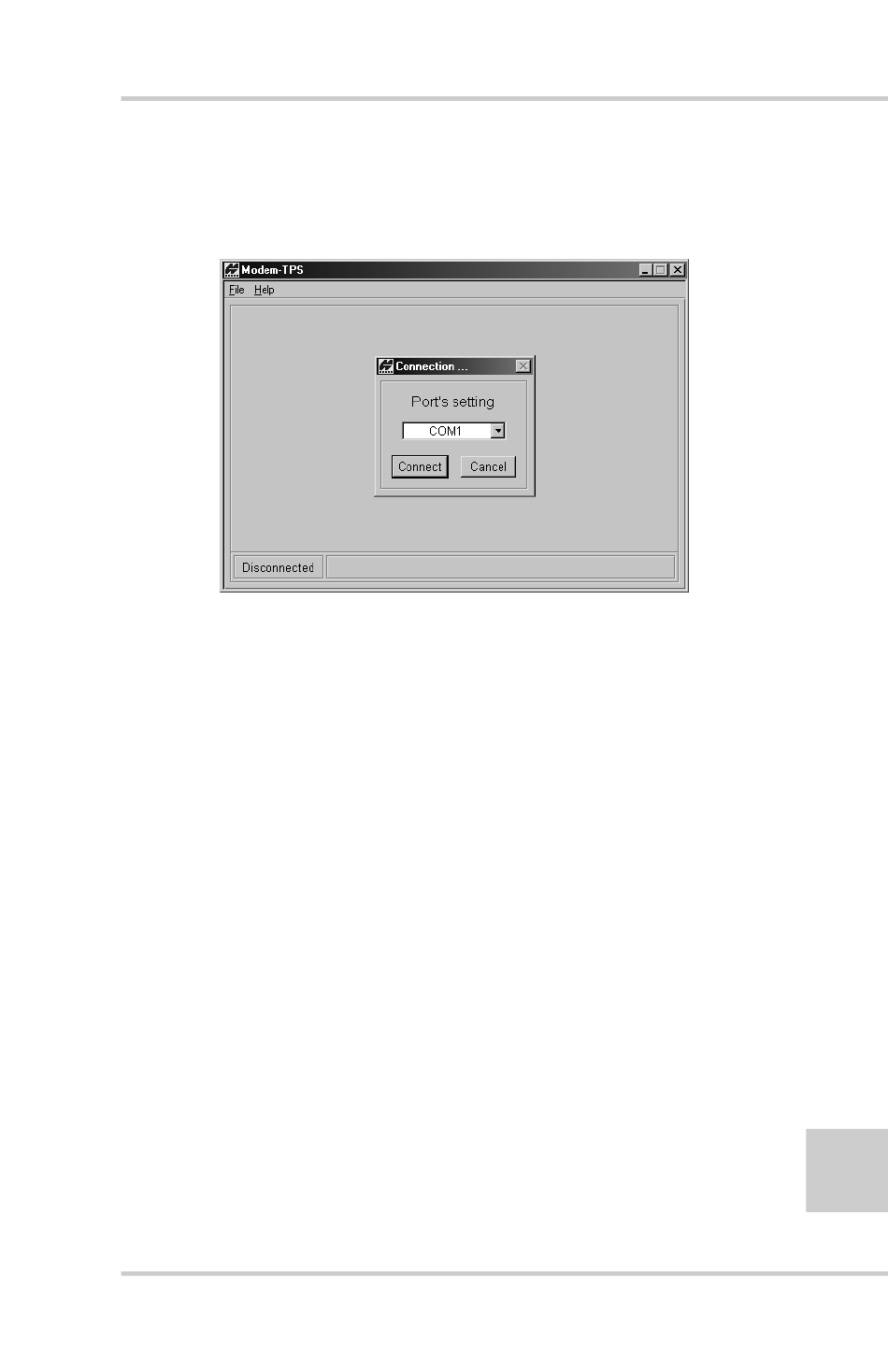

Figure 2-28. Modem-TPS Connection Dialog Box
Once a connection has been established, the COM port and
baud rate will be displayed in the lower-left corner of the main
window of Modem-TPS. A timer begins to count up in the
lower-right corner, indicating how long Modem-TPS has been
activated. The status bar next to the timer displays error
messages.
4. On the Radio Link tab, enter the following information and
click Apply (Figure 2-29 on page 2-32).
• Operation mode – select Receiver for Rover stations; select
Off if the radio is turned off; select Transmitter for Base
stations.
• Output power – enabled only when Transmitter selected,
this field adjusts the transmission power of the Base
station's radio modem.
• Link Rate – select the data transmission baud rate; either
9600, 17000, 24000, or 57600 baud.
