12. INSTALLATION

12.1 MECHANICAL INSTALLATION

LogBox Wi-Fi has a high-quality casing, built in ABS + PC and with IP40 protection index.
To streamline the LogBox Wi-Fi attachment, the device comes with a fixing bracket, indicated and developed for any type of wall, which has three
oblong holes, arranged in a triangle, made to fix it using screws. Optionally, to facilitate the fixation on metal surfaces, it is possible to purchase the
device model that comes with a fixing bracket with magnetic inserts.
To assist in the installation aesthetics, two openings in the lower part of the fixing bracket can be used to pass the sensors that are connected to
the device. In addition to that, this bracket has a ring that allows the placement of a padlock preventing LogBox Wi-Fi from being removed from the
installation location.
With the help of two screwdrivers and through two lateral fittings, it is possible to fix or remove the LogBox Wi-Fi from the bracket.

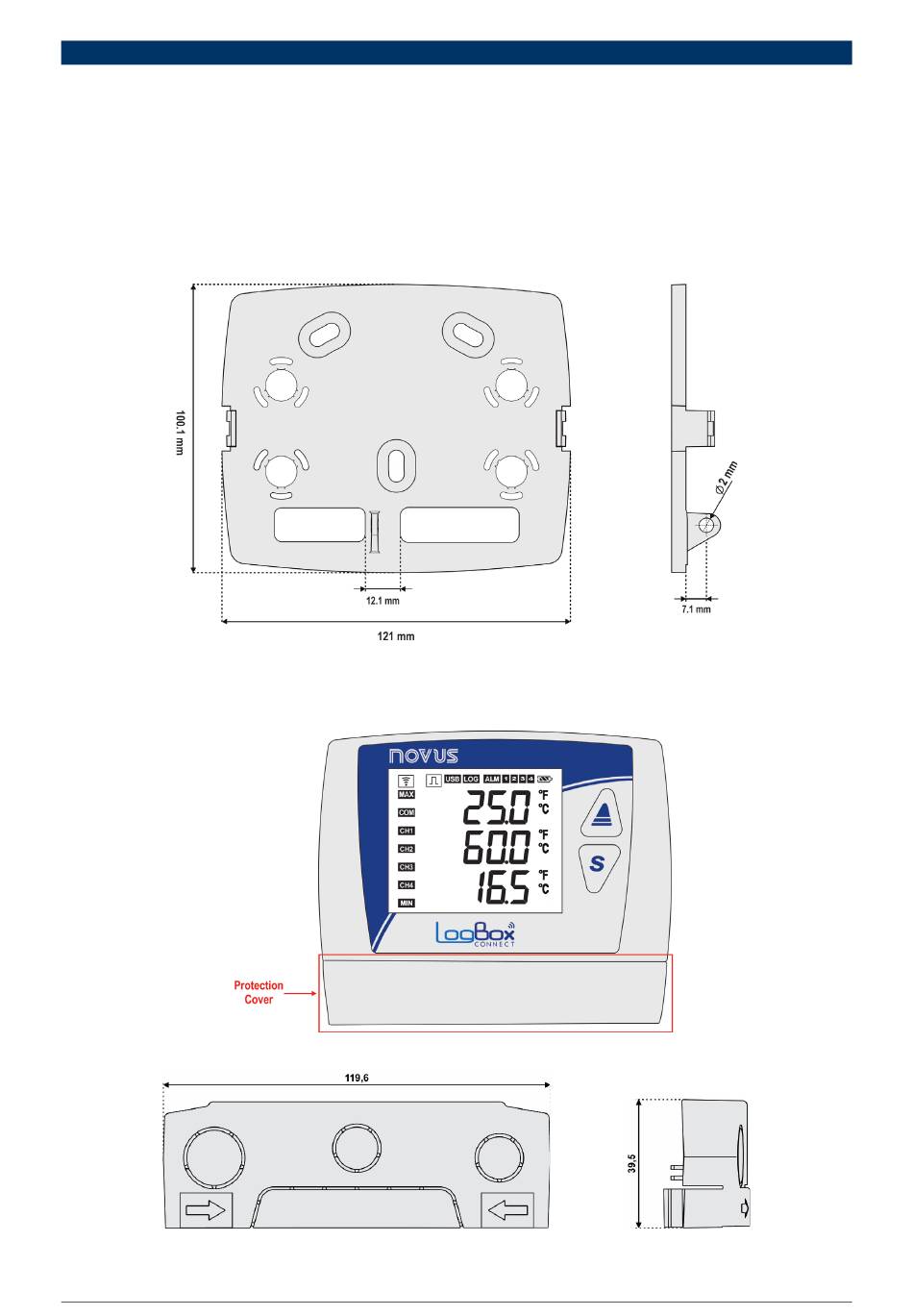

Fig. 16 – Mounting bracket
To improve the device installation aesthetics, the LogBox Wi-Fi comes with a protection cover for the connections, which is dockable in the bottom
of the device and that hides its sensors. This protection cover has four detachable cavities to facilitate sensor installation.
Fig. 17 – Connections' Protection Cover
Fig. 18 – Dimensions of protection cover detachable connections and cavities
