12.2.3.2 DIGITAL OUTPUT

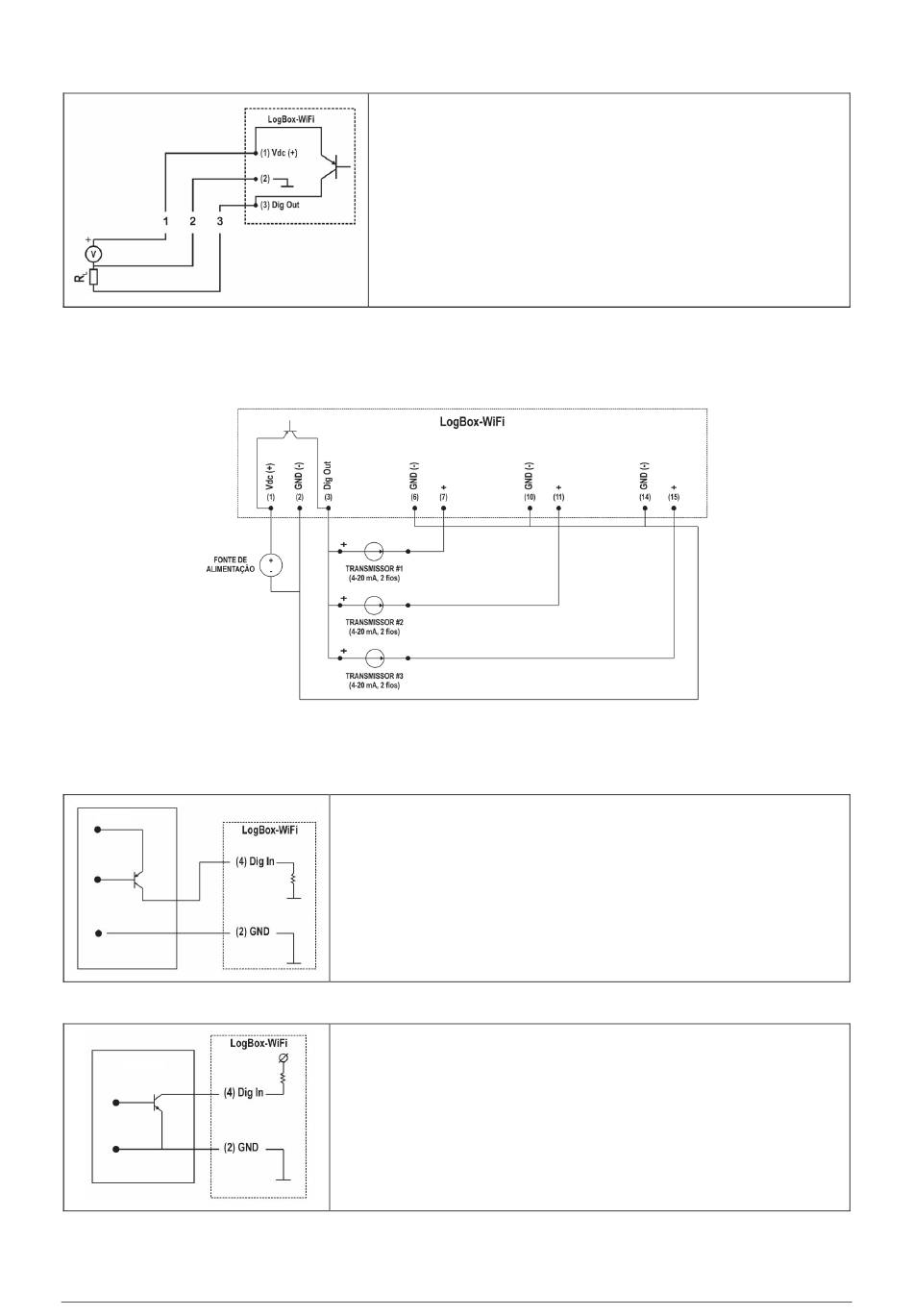

Alarm Status Mode Connection
Connection in "Auxiliary Electronic Switch" Mode
The connection to the Digital Output in the "Auxiliary Electronic Switch" mode, used to power current transmitters, is made at the terminals
according to the figure on the side. To use the Digital Output, you must power the device with an external power supply. The source used must be
able to provide current compatible with the number of transmitters used.

12.2.3.3 DIGITAL INPUT

PNP Connection
Sensor
NPN Connection
Sensor
NOVUS AUTOMATION
The connection to the Digital Output in the "Alarm Status" mode is made at the
terminals according to the following image. To use the Digital Output, you must power
the device with an external power supply. The power supply used must be capable of
supplying current compatible with the load used in the Digital Output.
Fig. 24 – Connection in "Auxiliary Electronic Switch" Mode
The connection to the Digital Input with a PNP-type sensor is made at the terminals according
to the following image.
The connection to the Digital Input with a NNP-type sensor is made at the terminals according
to the following image.
