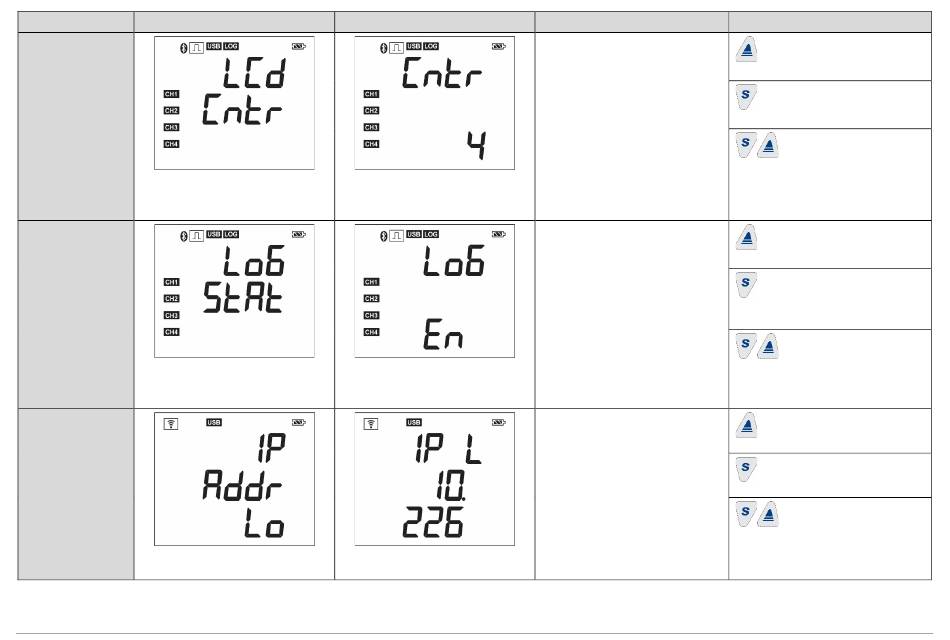

6. Display Contrast
Adjustment
Displayed for two seconds before accessing
the "Display Contrast Adjustment" screen.
7. Log Status
Displayed for two seconds before accessing
the "Log Status" screen.
8. IP Low
Displayed for two seconds before accessing
the "IP Low" screen.
NOVUS AUTOMATION
MNEMONIC
This screen will be updated whenever the
display contrast is adjusted.
This screen will be updated whenever the
current log status is changed.
This screen will be updated whenever the IP
is changed.
INFORMATION
Displays the contrast level configured for
the display and allows adjustment of the
display.
Line 3: Current contrast value. Can be
adjusted from 0 to 7.
Displays the current log status and allows
them to be started and/or paused if the
device is configured to allow keyboard start
and/or end.
En – Enabled logs.
Dis – Disabled logs.
Displays the last two octets of the
configured IP address.
DESCRIPTION
Key held down or long touch: Increases
contrast (maximum of 7).
Key held down or long touch:
Decreases contrast (minimum of 0).
Key held down or long touch: Initiates
logs if "By Keyboard" start mode is enabled.
Key held down or long touch: Pause
records if the "By Keyboard" end mode is
enabled.
Key held down or long touch: No action.
Key held down or long touch: No action.
