11.1.5 DATA LOGGING CONFIGURATION

11.1.5.1 LOGS

Log Data: Enables or disables the device data logging.
•
Log Interval: Allows you to select the frequency, in seconds, with which an acquisition must be made and logged in the memory.
•
○ Minimum Range:
■ 1 second - if no channel is configured to operate on average;
■ 10 seconds - if a channel is configured to operate on average.
○ Maximum Range: 18 hours.

11.1.5.2 START MODE

Immediate Start: Allows logs to be started shortly after the device is reconfigured.
•
Date/Time: Allows you to set the date/time when the logs are to be started.
•
By Keyboard: In a screen in the display, you can change the logs status to enabled, which start the logs (in case they had not been started
•
yet).
By Digital Input: Allows logs to be initiated from the digital input. This parameter is available if the digital input is enabled and configured in the
•
"Logs Control" mode. This way, the logs will be started the moment the digital input is triggered. The log edge shall be configured in the digital
input parameters.
By Software: Allows logs to be started using an NXperience command.
•
Daily: It allows the logs to be started every day and at the configured time. The "Daily" log start mode also requires "Daily" log end mode.
•

11.1.5.3 STOP MODE

Never: Allows logs to continue indefinitely. When filling the memory, the oldest data will be deleted so that the most recent ones can be saved.
•
Date/Time: Allows you to set the date/time when the logs are to be ended.
•
By Keyboard: Allows you to change logs status to disabled on a screen in the display by instantly closing the logs.
•
By Digital Input: Allows logs to be paused from the digital input. This parameter is available if the digital input is enabled and configured in the
•
"Logs Control" mode. This way, the logs will be paused the moment the digital input is triggered. The log edge shall be configured in the digital
input parameters.
By Software: Allows logs to be ended using an NXperience command.
•
Daily: It allows the logs to be ended every day and at the configured time. The "Daily" log start mode also requires "Daily" log end mode.
•
The combinations allowed for starting and ending logs are as follows:
Start Mode
Immediate
Date/Time
Digital Input
Keyboard
Software
Daily
NOVUS AUTOMATION

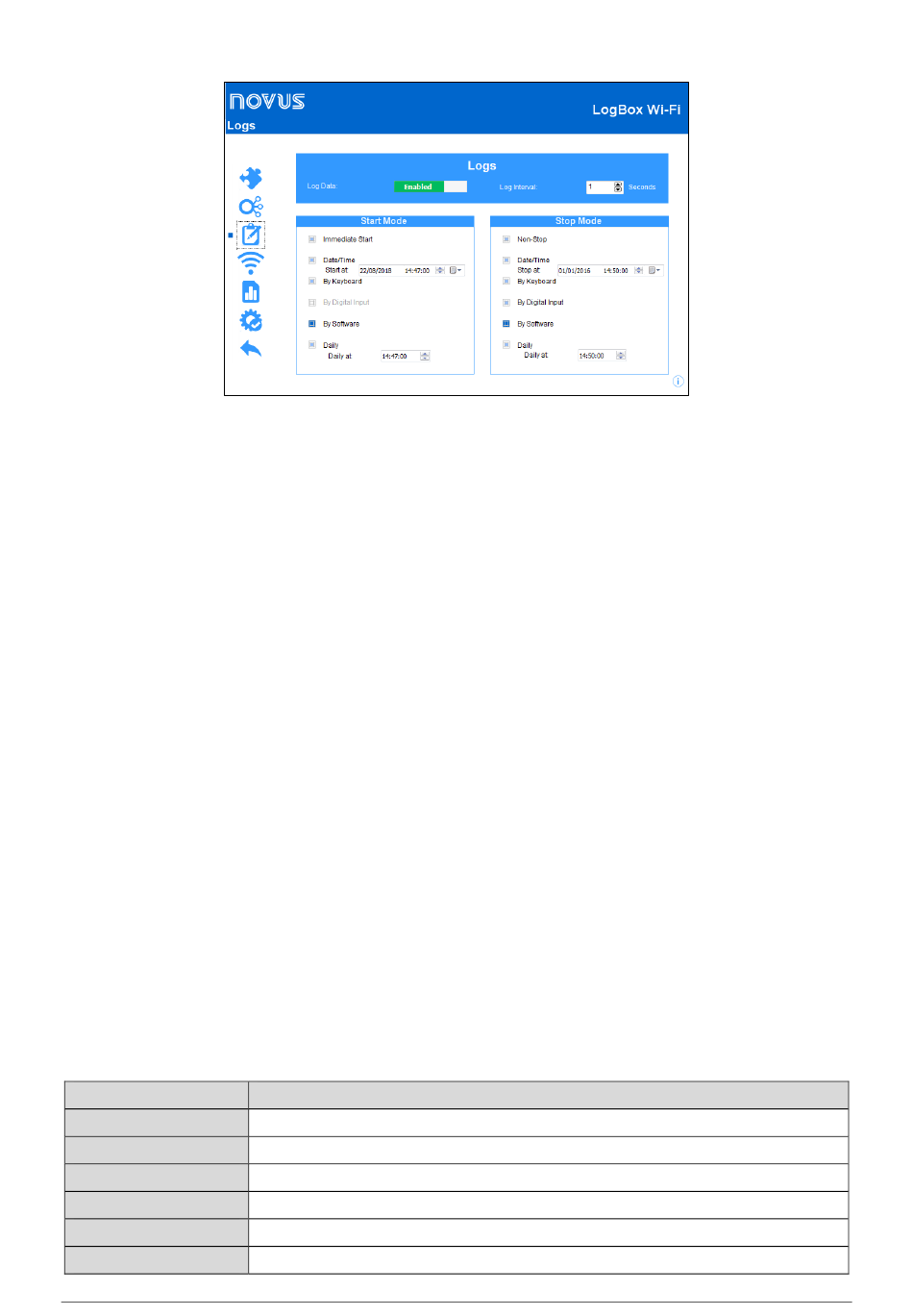

Fig. 09 – Data Logging Screen
Stop Modes
Never or Date/Time or Keyboard or Software or Digital Input
Never or Date/Time or Keyboard or Software or Digital Input
Never or Digital Input
Never or Keyboard
Never or Software
Daily
Table 12 – Logs End Modes
