LogBox-RHT-LCD
TEMPERATURE AND HUMIDITY LOGGER – INSTRUCTIONS MANUAL V1.1x C
1 PRESENTATION

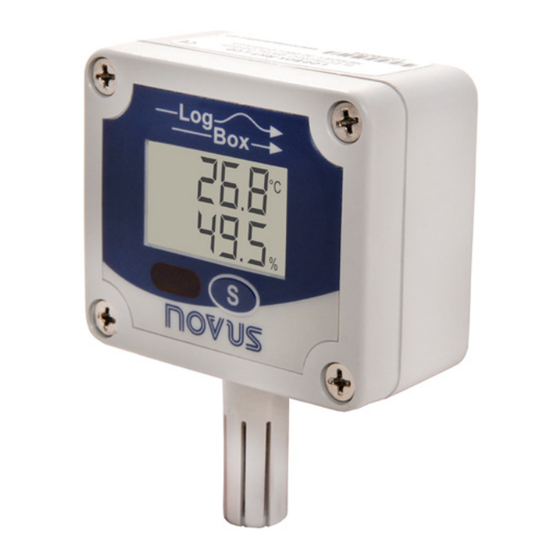

LogBox-RHT-LCD is an electronic logger of temperature and
relative humidity. There are sensors that measure such data and
values (data) obtained are displayed in an LCD screen and stored in
an electronic memory. Data can be later viewed and analyzed on a
PC where they can be opened in tabular and graphical forms. The
humidity output can be configured to display Relative Humidity
values or the temperature value of Dew Point.
The logger is supplied with LogChart II software, which enables to
set up the logger operation mode. It is also used for visualization of
collected data. Other parameters such as end of measurements,
logging interval, etc., are easily defined through the LogChart II
software.
Measurements can be exported to and opened in other applications,
such as spreadsheet programs.
1.1 Identification
The identification label is on the logger body. Check if the features
described are in accordance with your order. The RHT-LCD model
is designed to measure temperature and relative humidity.
The following elements are shown in the logger front:

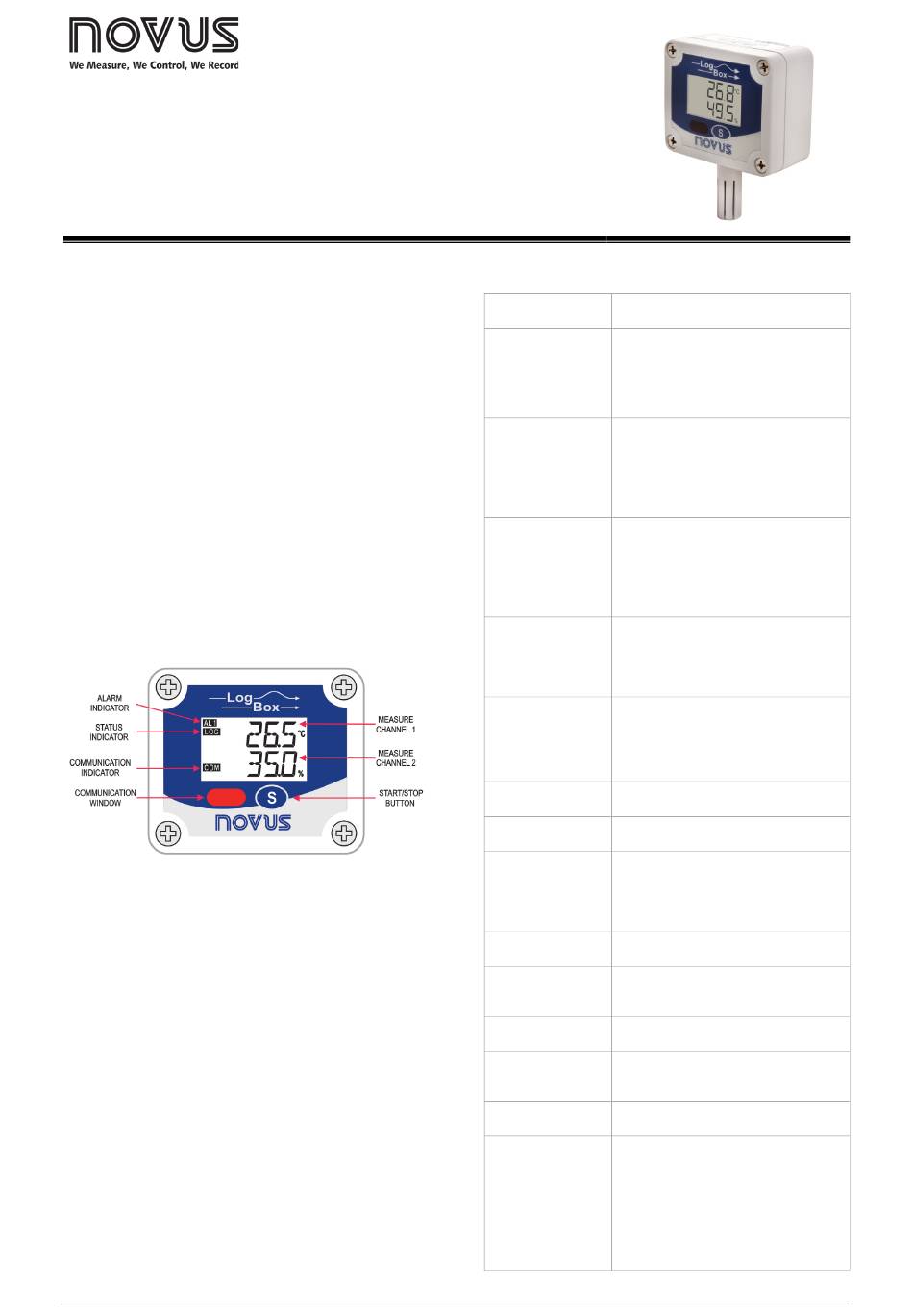

Fig. 1 – Logger Front
START / STOP button: Can be configured to start or stop logging
when pressed. It can also be used to browse and change screens.
Status indicator (LOG): Indicates when the device is logging.
Note: When logs are finished or not started, the indicator remains
deactivated.
Alarm Indicator (AL1 and/or AL2): Warns the user as to alarm
conditions. It remains active whenever an alarm condition occurs,
until a new configuration is applied to the logger.
IR Communication Window (COM): Activated when there is a
communication attempt or when communication between logger and
PC is activated.
NOVUS AUTOMATION
2 SPECIFICATIONS
Operating temperature From –40 °C to 70 °C
Temperature: –40.0 °C to 80.0 °C.
Sensor measure range
Relative Humidity (RH): 0.0 to 100.0 %,
without condensation.
Dew Point: –40.0 °C and 100.0 °C
Accuracy See Fig. 2.
Note: A measure error can be ruled out using
the OFFSET parameter in the LogChart II
software.
Measurement resolutions Temperature: 0.1 °C.
14 bits (16383 levels)
Relative Humidity (RH): 0.1 %.
12 bits (4095 levels)
Temperature: up to 30 seconds with fairly still
Response time
Humidity: up to 8 seconds with fairly still air
Memory capacity 64,000 (64 k) logs:
Half for each channel or total when one of the
channels is not enabled.
Measurement interval 1 second min. 18 hours max.
Supply 3.6 Vdc lithium battery (1/2 AA), built-in
Estimated autonomy Higher than 200 days, with weekly data
reading. Frequent logged data readings may
shorten battery life and the interval between
acquisitions is too short.
Case Polycarbonate
Protection Suitable for products with protection level
IP40.
Dimensions 60 x 70 x 35 mm
Logger-PC data transfer According to the number of logs. 40 seconds
time for 16,000 logs.
PC interface Interface Ir/USB or Ir/Serial.
LogChart ll software Set up Software for Windows 98, NT, 2000,
operation environment XP, Vista and 7.
Menus in Portuguese, English or Spanish.
Sets up, reads and displays data on the
screen.
air.
(20 to 80 %RH).
