To detach the protection cover, you must press the sides, one side at a time.
To attach the protection cover, it is necessary to press the area designated by the arrows and push one side at a time from the outside.

12.1.1 DIMENSIONS

To open the battery compartment, press the cover in the arrows region and push it in from the inside out.
NOVUS AUTOMATION

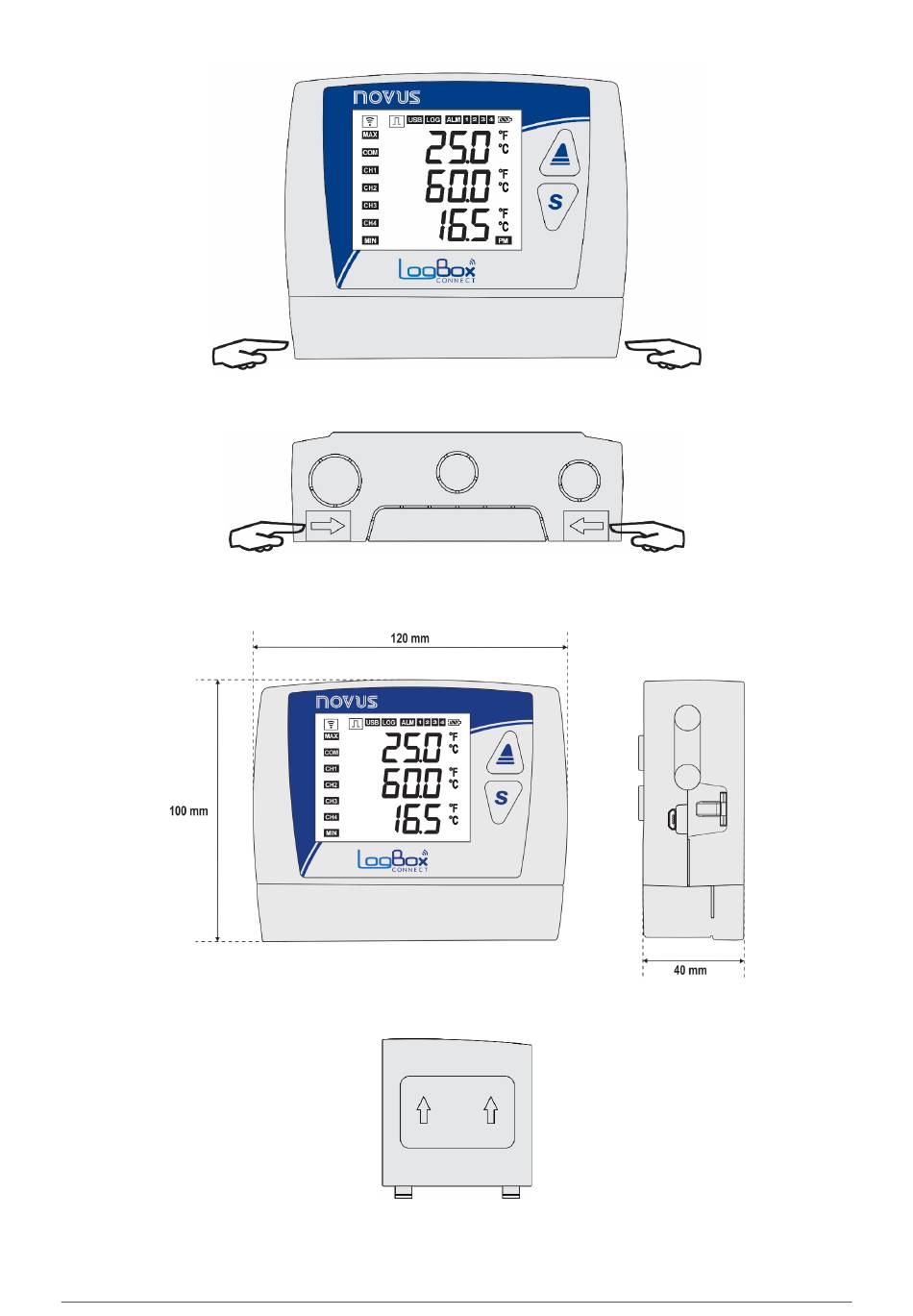

Fig. 19 – Removing the protection cover
Fig. 20 – Fitting the protection cover
Fig. 21 – LogBox Wi-Fi dimensions
Fig. 22 – Batteries cover
