IntesisBox IBOX-BAC-DALI User Manual page 24

®
IntesisBox BACnet/IP Server – DALI
Use the bus viewer at the time of setting up your BACnet/IP client device in the IP network,
to check that IntesisBox is effectively receiving an answering data at BACnet/IP side.
In the case of DALI, IntesisBox acts as a DALI master, constantly polling each of the
ballasts from its database. So, constant activity will be shown at DALI bus viewer.
Both bus viewers allow for logging the shown data in a file, for later analysis or support
request. To do so, tick check-box Log to File in the upper part of each window.
Logs will be stored in your project folder, with the names Bac0.log and DALI.log for BACnet
and DALI respectively.
Old log files are never deleted on logging newer information. Instead, newer log information
is appended at the end of each file.
2
File: IBOX-BAC-DALI User Manual eng r1.pdf
© Intesis Software S.L. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SL

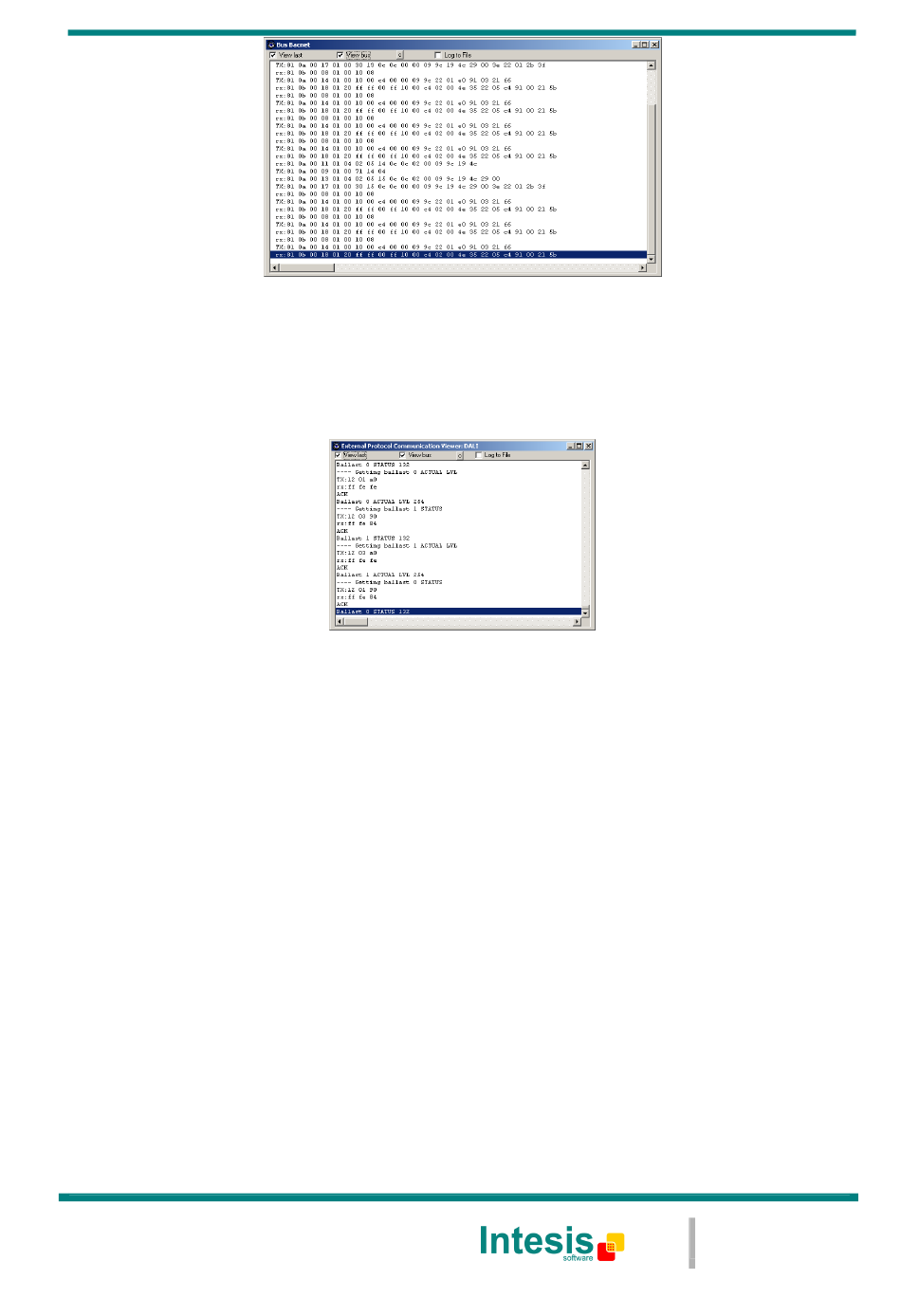

Figure 17 - BACnet bus viewer
Figure 18 - DALI bus viewer
