IntesisBox BACnet/IP Server – DALI

3.4 Editing the configuration project for DALI

3.4.1 IntesisBox Configuration Window

Back into LinkBoxBacnet main's window, select menu option Configuration->IntesisBox... to
access IntesisBox configuration editor window.

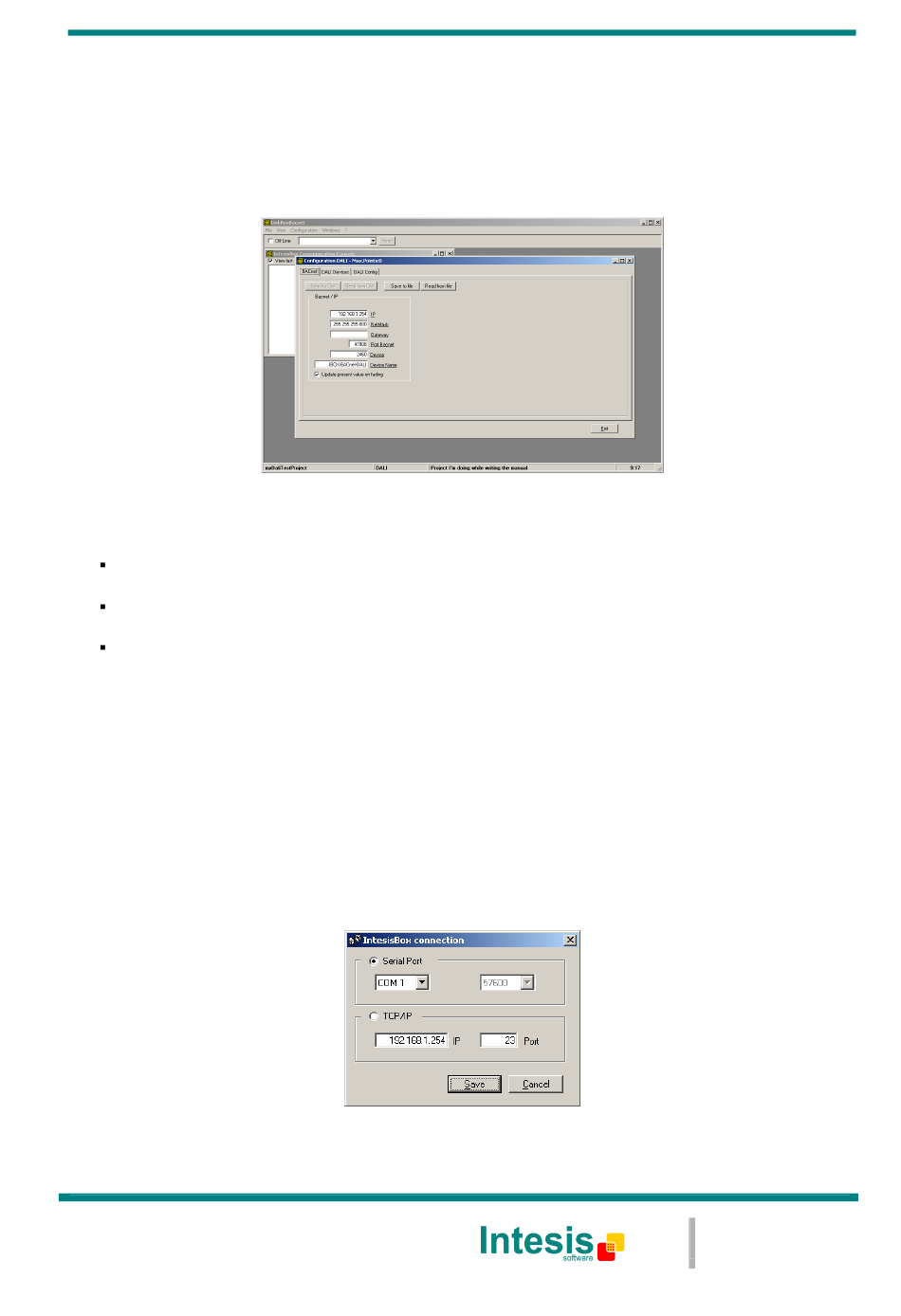

Figure 7 - IntesisBox configuration editor window
There are three tabs in the configuration window:
BACnet: Relates to configuration of IntesisBox' parameters for its BACnet/IP's
interface
DALI Devices: Used for the commissioning/setup of the individual/short addresses
of the DALI ballasts in the bus
DALI Config: It is used for the management of the set of configuration values of
each ballast (min/max level, fade rate/time, group membership, ...)
In following sections their usage is explained.

3.4.2 Switching from Offline to Online mode

At this point you might want to change LinkBoxBacnet working mode to online – i.e. having
a working link between LinkBoxBacnet and IntesisBox. This will allow you to exchange
configuration values with the device, as you edit them.
In order to do so, select menu option Configuration->Connection.... a small window showing
the connection parameters will appear.
Figure 8 - Connection setting parameters window
In it, you can select the communication parameters of the physical link with IntesisBox,
using either a serial port/EIA232 connection or an Ethernet/IP link.
