Installation Instructions
1 M6 hex nut
2 Ground bar assembly for mains side
3 Angle bracket
4 M5x18 mm screw

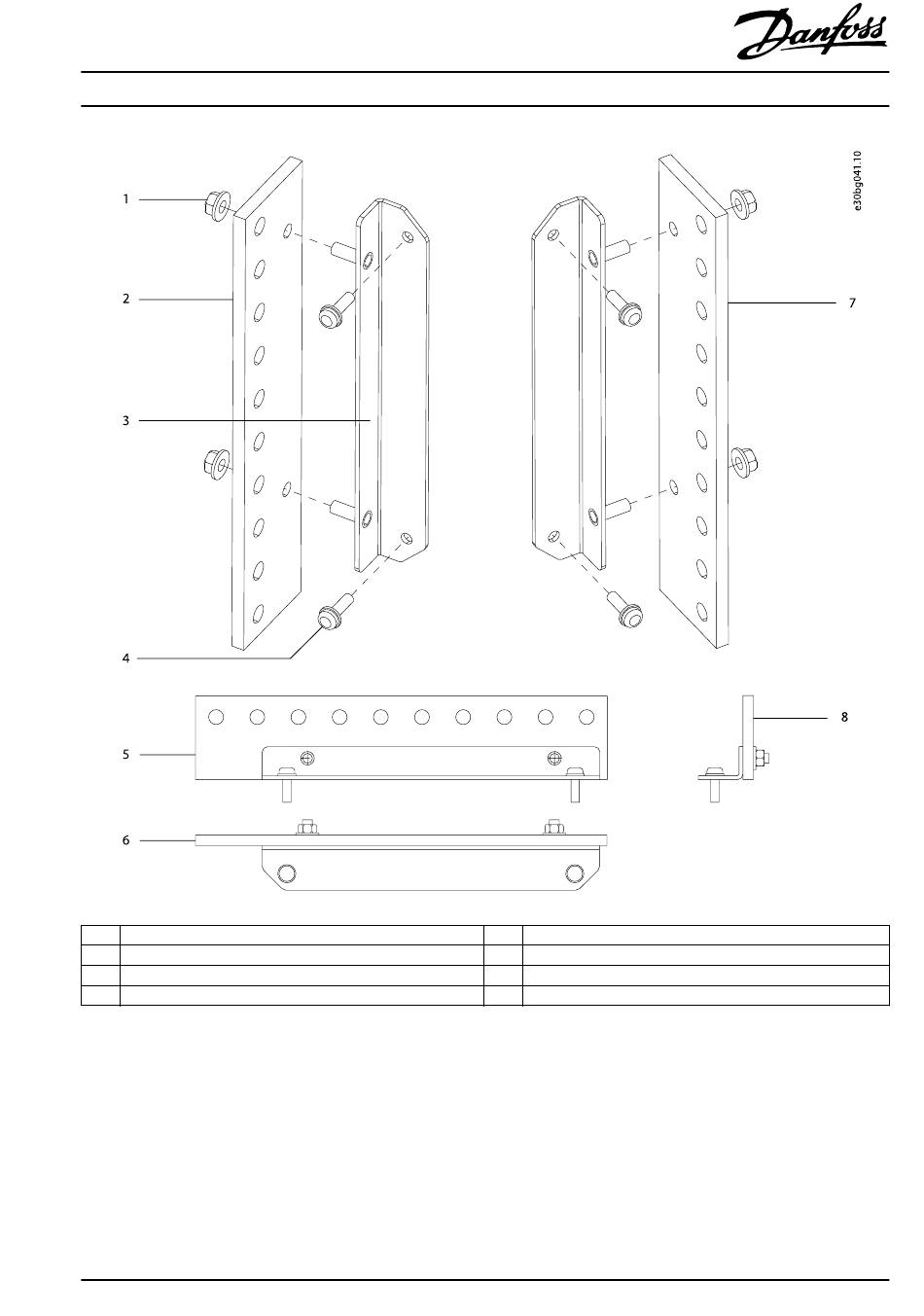

Illustration 1.2 Assembly of Ground Bars and Angle Brackets
1. Attach the ground bars to the angle brackets:
1a Place 1 ground bar over the 2 threaded
posts on the angle bracket.
1b Fasten 2 M6 hex nuts (T30) to the bracket
posts, 1 on each post. See Illustration 1.2.
MI35K102
Ground Bar Kit for E1h/E2h Drives
®
VLT FC Series FC 102, FC 103, FC 202, and FC 302
5 Side view of assembled ground bar and bracket
6 Front view of assembled ground bar and bracket
7 Ground bar assembly for motor side
8 End view of assembled ground bar and bracket
Danfoss A/S © 10/2017 All rights reserved.
1c Tighten nuts to 3.9 Nm (35 in-lb).
1d Repeat for remaining ground bar and angle
bracket. Position ground bar with the long
end oriented in the opposite direction on
