Installation Instructions
Installation Instructions
Installing the Ground Bar Kit
The ground bar kit includes 2 ground bars, 1 for the mains side and 1 for the motor side of the drive. To install the ground bars,
use the following steps. Refer to Illustration 1.1 to Illustration 1.3.

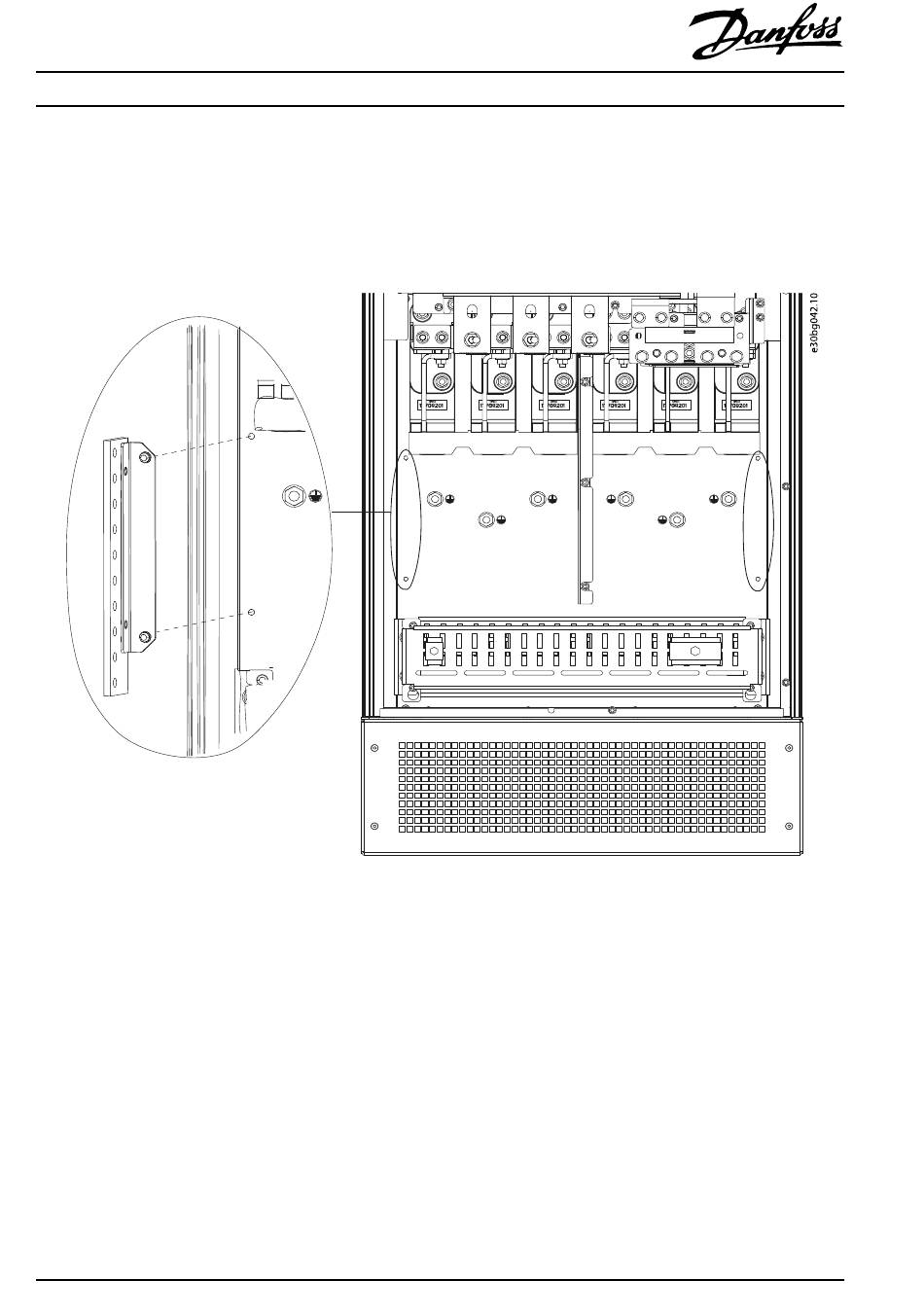

Illustration 1.1 Location of Ground Bar Mounting Holes in Midplate
2
Ground Bar Kit for E1h/E2h Drives
®
VLT
FC Series FC 102, FC 103, FC 202, and FC 302
Danfoss A/S © 10/2017 All rights reserved.
MI35K102
