Installation Instructions
1
M5 pem nut (24 total on base plate)

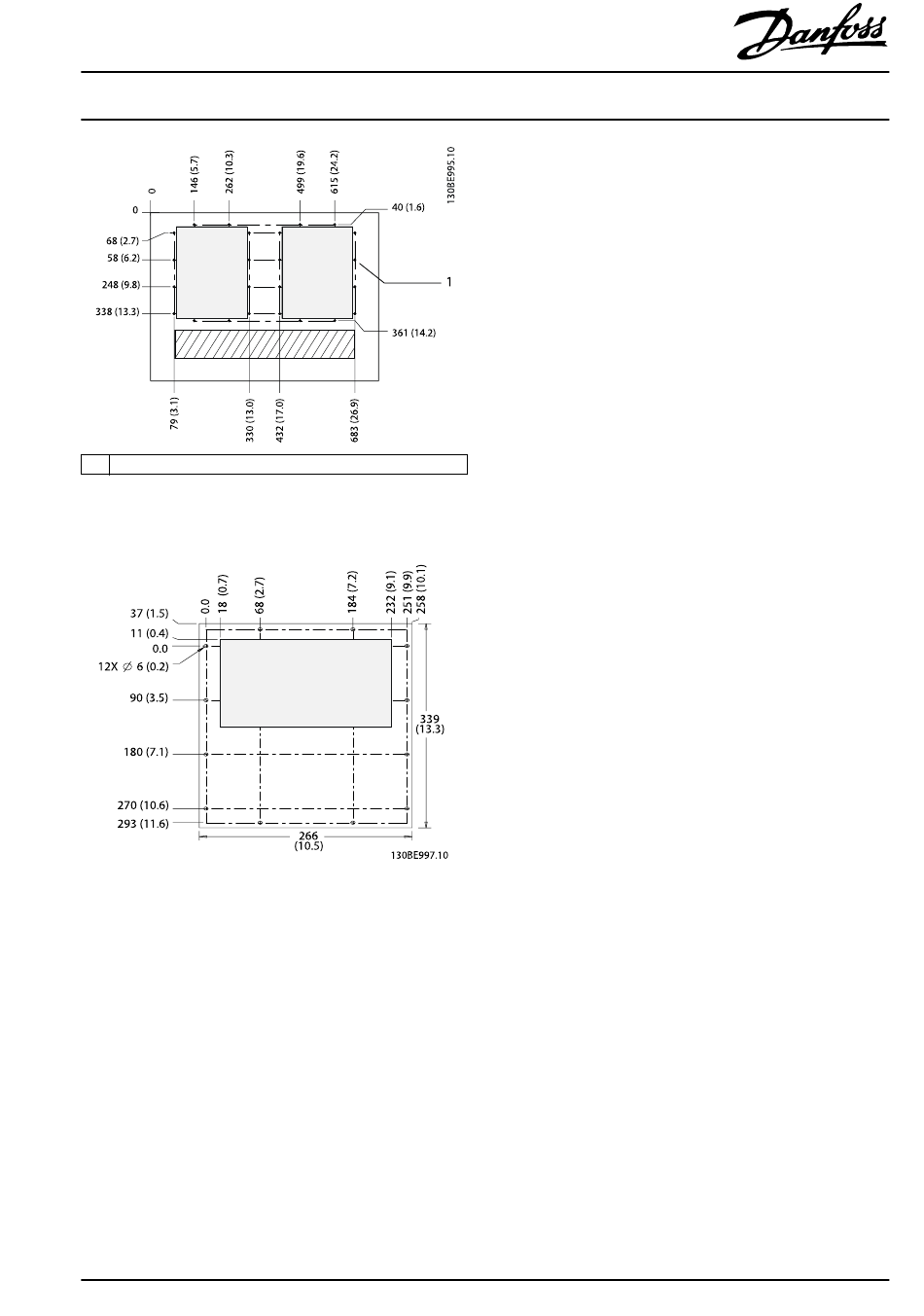

Illustration 1.8 M5 Pem Nut Dimensions on the Base Plate
Illustration 1.9 Vent Opening Dimensions for the Cover Plate
MI92L102
In-bottom/Out-back Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
Installing the Back Panel Cover
Refer to Illustration 1.10 for the following steps:
1.
2.
3.
4.
5.
6.
Danfoss A/S © 04/2016 All rights reserved.
Install a gasket (4) around each exhaust vent opening
on the back side of the mounting backplate (3).
Install a duct spacer (5) onto each exhaust gasket
and secure with 6 M5 nuts. Torque to 5.1 N · m
(45 in-lb).
Place a gasket (7) onto each exhaust duct spacer.
Prepare the back panel cover. Refer to
Illustration 1.11.
4a
Cut out the 2 exhaust vent openings in the
back panel. The openings must match to
the exhaust duct spacer openings.
4b
Drill the 8 screw holes around the vent
openings.
Secure the back panel cover to the frame.
Secure the back panel cover to the duct spacers with
8 M5x16 screws. Torque to 5.1 N · m (45 in-lb).
