Stairmaster HIIT UBE Assembly Instructions

HIIT UBE

ASSEMBLY INSTRUCTIONS

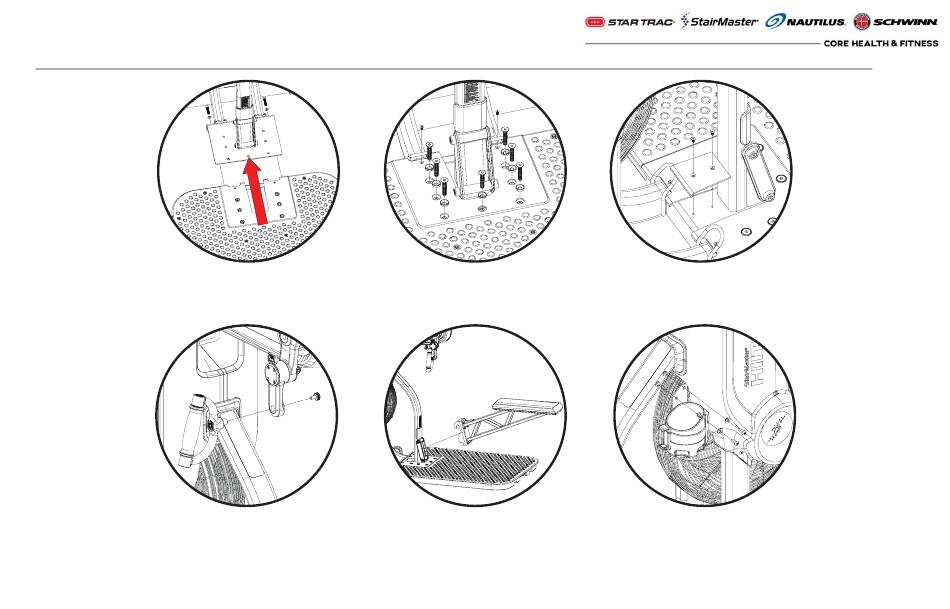

STEP 1: Slide the HIIT UBE base onto the mast then
use a 8mm allen key to secure the base onto the mast
using two (2) pieces each of the M10 x 40mm screws
and M10 washers.
STEP 4: Install the user's left side handle and secure it
using a 33-37 ft-lbs (48 Nm) 6mm allen key to tighten
the M8 axle screw into the handle.
Document # 620-8574 Rev. B
STEP 2: Using a 8mm allen key, finish securing the base to the
mast using seven (7) pieces each of the M10 x 55mm screws and
M10 countersunk washers. Finally, use a 3mm allen key to install
two (2) pieces of the M5 x 10mm screws near the edge of the
base.
STEP 5: Attach the removeable seat to the mast by locking the
seat hooks onto the mast mounting point, then rotating the seat
down into position.
For Installation assistance or missing parts, please call CORE Health & Fitness at 1(800) 503-1221
STEP 3: Secure the baseplate to the base using a
3mm allen key and two (2) pieces of the M5 x 10mm
screws.
STEP 6: Install the water bottle holder onto the mount
using a 5mm allen key to secure two (2) pieces each of
the M8 x 20mm screws and M8 washers. Then install
the mount onto the unit's frame using two (2) pieces
each of the M8 x 20mm screws and M8 washers.
PAGE 1 OF 2
