2. Mechanism
Sub scan registration mechanism

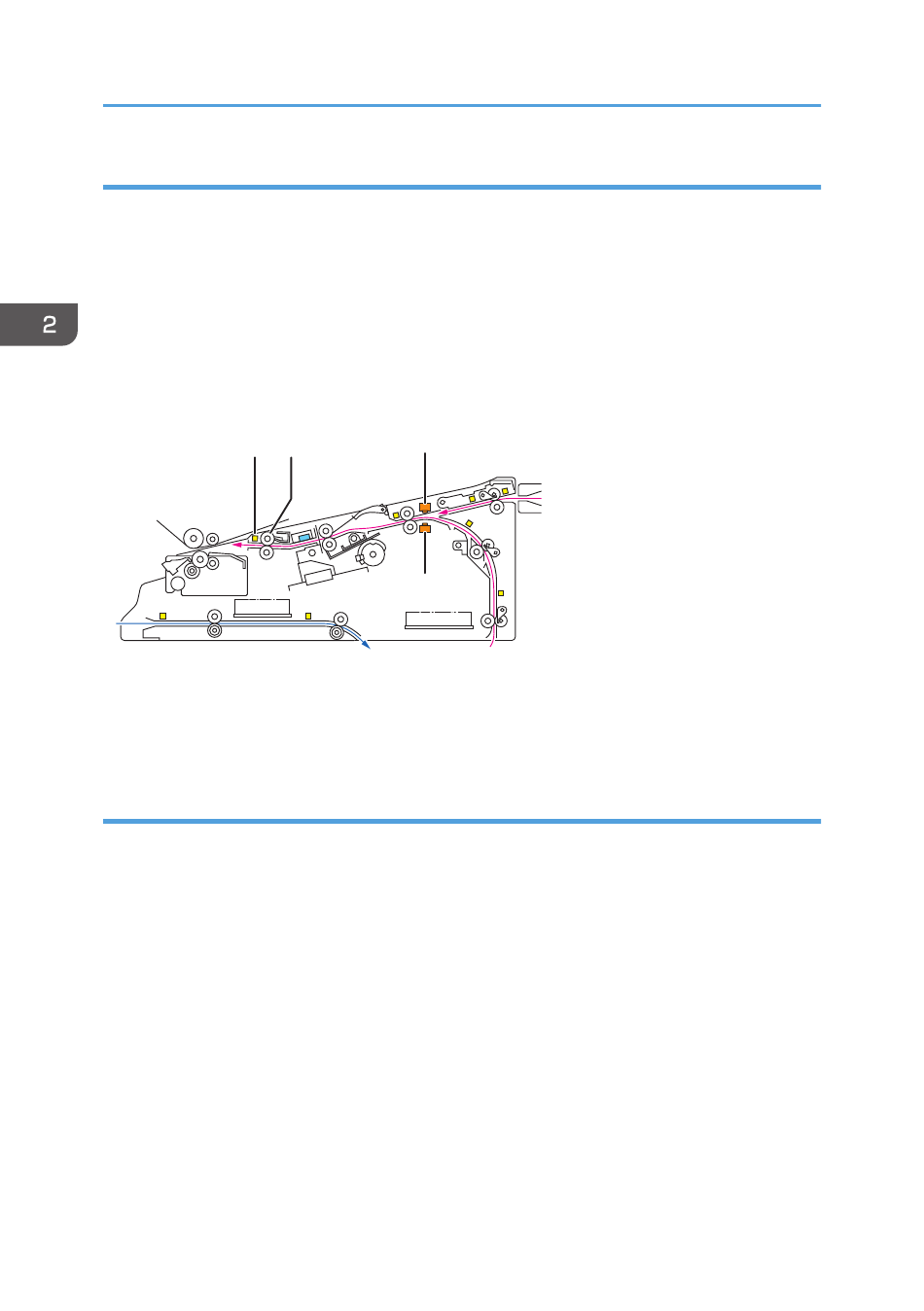

After the main scan registration is corrected, the sheet passes through the transfer timing roller [5] and
then the transfer timing sensor [6] detects the leading edge.
Rotation speed of the transfer timing roller [5] is adjusted according to the timing the leading edge is
detected, to deliver the paper for the belt-to-paper transfer process at the perfect timing.
If the leading edge is detected at a timing that exceeds the adjustment range (+/-3.0mm), the system
alerts J080 and stops.
Related Advanced Settings
page 45 "Double feed detection"/ page 44 "J080 detection"
Roller speed adjustment
Every paper transport roller installed in the machine is controlled of the rotation speed according to the
basis weight (thickness) of the paper, to support wide variety of media and prevent image quality
problems.
While the transport speed at the surface of the paper can roughly be determined by the rotation speed
of the roller and the radius of the roller added with thickness of the paper, the speed at the paper
surface becomes much faster with bulky stocks, and causes deviation in the image magnification ratio.
Also, the media will slacken/stretch, if the rollers expand/contract due to the change in environmental
conditions, resulting in image quality issues such as banding and color inconsistency.
Printed images may also get scratched by the guide plates in the paper path.
