vacon • 34

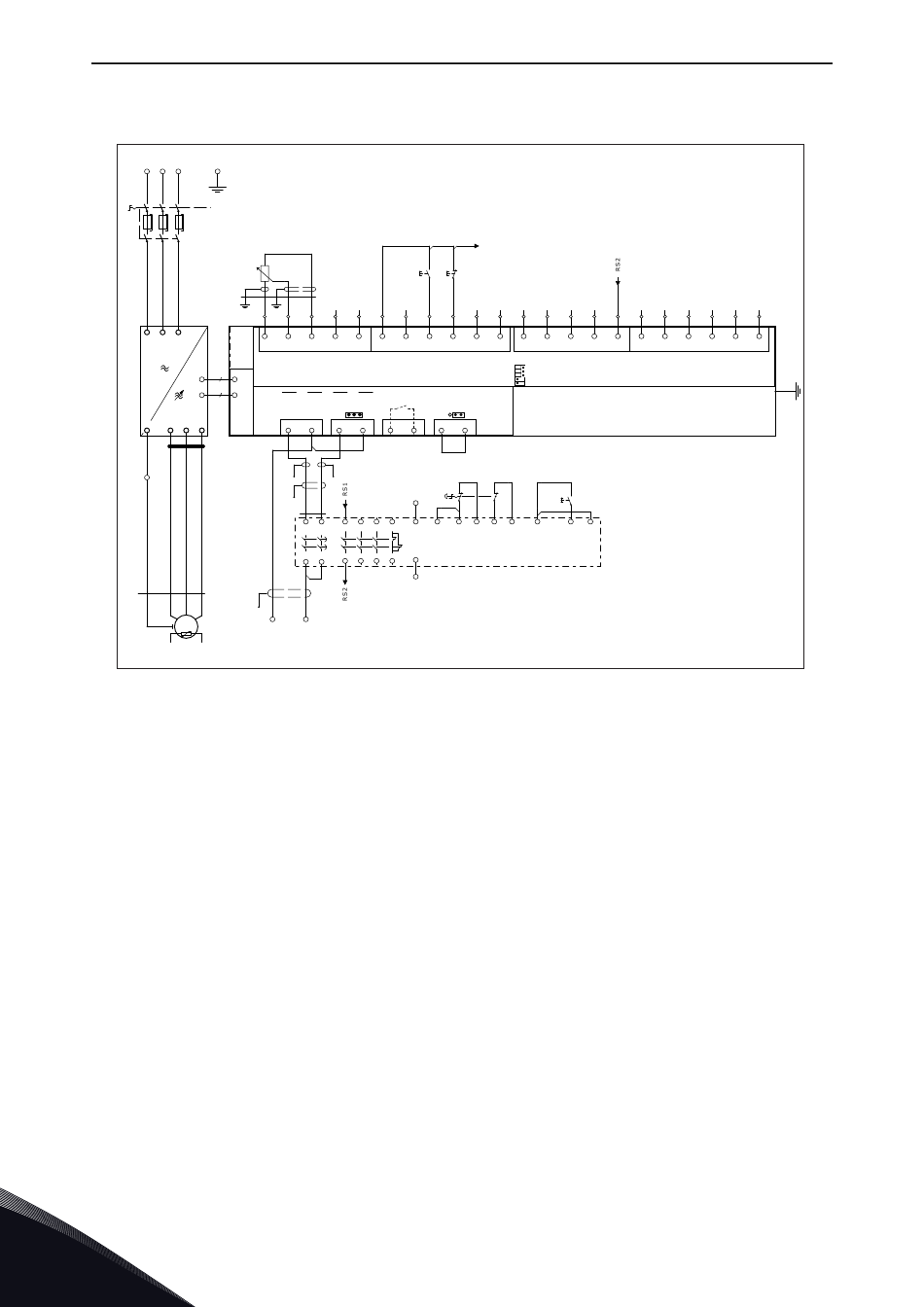

Example 3: OPTBJ board with SS1 and safety reset or EN 60204-1 stop category 1.
MAIN CIRCUIT
L1 L2 L3 PE
PE
1 3 5
F1
2 4 6
L1 L2 L3
U V W
PE
PE
PE
PE
W1
U1 V1 W1
M
3 ~
PE
1 2
M1
The figure above presents a connection example of OPTBJ board for SS1 safety function with ex-
ternal safety relay module and with safety reset.
The external safety relay module is connected to the switch S1. The used power supply to switch S1
is 230 VAC as an example. The safety relay module is connected to OPTBJ board with 4 wires as
shown in Figure above.
To configure the drive to perform the fast deceleration with a ramp, it is recommended to use Quick
Stop -function that is activated by digital input, for example DI6 as in Example 3 above. See the ap-
plication manual for correct parametrization of Quick Stop -function.
When the switch S1 is activated (contacts open), the drive starts ramping down the output frequency
until the delay of the safety relay has passed. After safety relay time delay, the drive goes to STO
state. If the motor is still running, it stops by coasting. If STO fault action is parameterized as
"Alarm", the drive indicates: "30 Safe torque off". Regardless of the parameterization, activation of
STO function causes a coasting stop for motor.
To allow the returning of the drive to ready state after S1 is deactivated (contacts closed) and safety
relay is resetted, STO Fault action needs to be parameterized as "Alarm". If STO Fault action is pa-
rameterized as "Fault", also the drive needs to be reset to allow ready state. See application manual
for related parameters.
To start the motor operation again, following sequence is performed.
• Release the switch S1 (contacts closed). The hardware is now enabled and the drive returns to ready
state. An alarm indication for STO actiavation is displayed if STO Fault action is parameterized as
"Alarm".
• Acknowledge the releasing of switch by resetting the safety relay. The drive returns to the ready state.
• Giving a valid start command starts running the motor
6
SPEED REFERENCE
CCW
R1
S
CW
W12 1sh 1r 2sh 2p 2s
1 2 3 4 5 6
1 2 3 4 5 6
+10Vref AI1+ AI1 AI2+ AI2 24Vout
2
STO1+ STO1 STO2+ STO2 RO1 C
7
Installed
X10
1 2 3 4 25
PE PE
PE
W3 1r 2r
A10
57 67 13 23 33 41
14 24 34 42
58 68
PE
0V +24V
Short circuit and earth
fault protected supply
START STOP
RS1
S6 S7
13 11
14 12
7 8 9 10 11 12 13
7 8 9 10 11 12 13 14
GND DI1 DI2 DI3 CM 24Vout GND DI4
ON OFF RS485
U I AO1
U I AI2
U I AI1
ON OFF DGND
RO1 NO TI1+ TI1
OFF
X23
OPTBJ
26 28 29 SLOT E
21 RESET
11
S1
24VDC
12 22
+
A1 S10 S11 S12 S21 S22 S33 S34 S35
PHOENIX CONTACT
A2
PSRSCP24DC/ESD/5X1/1X2/300
0VDC
Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/
Commissioning
RAMP STOP
14 15 16 17 18 19 20 21
15 16 17 18 19 30 A
DI5 DI6 CM AO1+ AO/GND +24Vin RS485
Basic I/O
Bridge between S33/S35 for automatic reset.
(Not allowed with emergency stop)
22
B
RS485
PE
