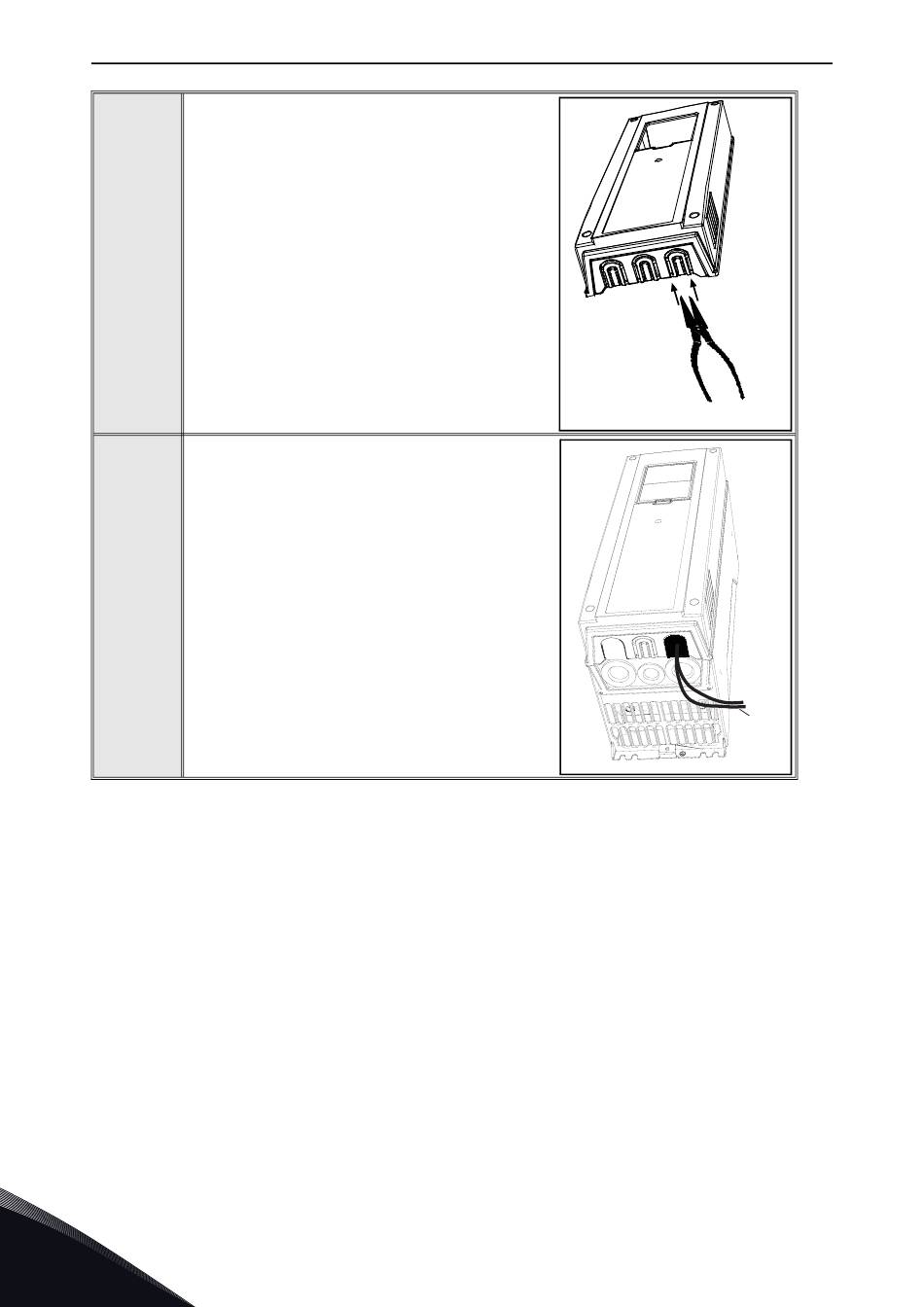

Unless already done for the other control cables,
cut free the opening on the AC drive cover for the
OPTBJ cable (protection class IP21).
NOTE: Cut the opening on the side of the slot E!
5
Remount the AC drive cover and run the cable as
shown in picture.
NOTE: When planning the cable runs, remember
to keep the distance between OPTBJ cables and
the motor cable at a minimum of 30 cm. It is rec-
ommended to route the OPTBJ cables away from
the power cables as shown in the picture.
6
3
Local contacts: https://www.danfoss.com/en/contact-us/contacts-list/
Installation of OPTBJ board
11576_00
OPTBJ
cables
11572_uk
