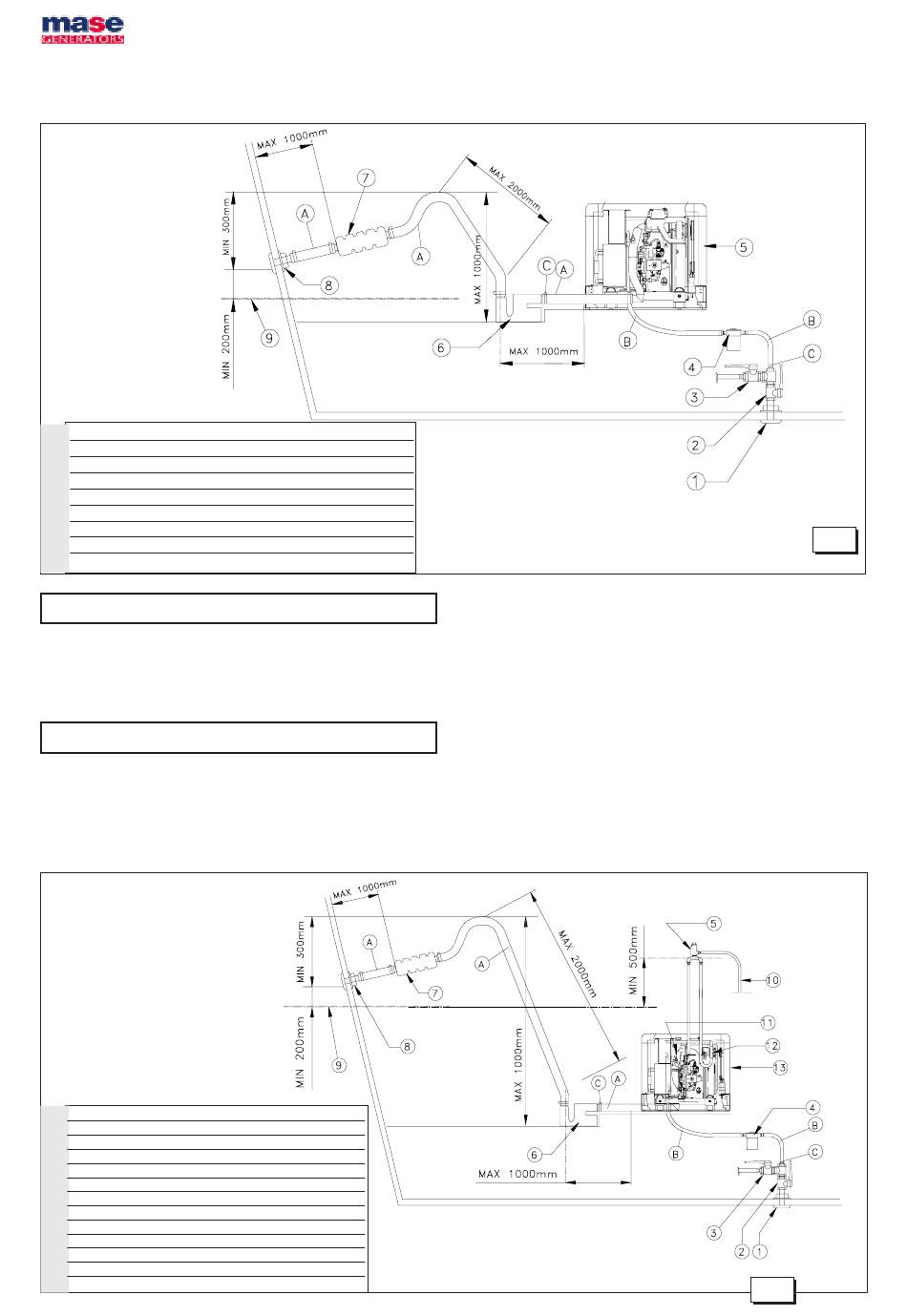

2.2. Typical installation with electric generator
above the water-line (fig. 4)
1 Sea intake • Prise en mer
2 General tap-water • Robinet gènèral de l'eau
3 Tap to drain system • Robinet de vidage de l'installation
4 Water filter • Filtrè à eau
5 Electric generator • Groupe èletrogène
6 Muffler • Pot
7 Silencer • Silencieux
8 Sea drainage nozzle • Goult dècharge en mer
9 Water line • Ligne de flottaison
IMPORTANT
A - Tubes, internal diameter 45 mm
B - Tubes, internal diameter 15 mm
C - Clamps
CAUTION
The measurements shown in fig. 4-5 should
correspond exactly.
2.3. Typical installation with electric generator
below the water line (fig. 5)
1 Sea intake • Prise en mer
2 General tap-systemr • Robinet gènèral de l'eau
3 Tap to drain system • Robinet de vidage de l'installation
4 Water filter • Filtrè à eau
5 Anti-siphon valve • Soupape antisiphon
6 Muffler • Pot
7 Silencer • Silencieux
8 Sea drainage nozzle • Goult dècharge en mer
9 Water line • Ligne de flottaison
10 Drainage • Drainage
1 1 Drain mixer • Mèlangeur de purge
12 Water pump • Pompe à eau
13 Electric generator • Goupe èletrogène
IS 3.5 - 4.0 - 5.0 - 6.0
Fig. 5
Fig. 4
- -
