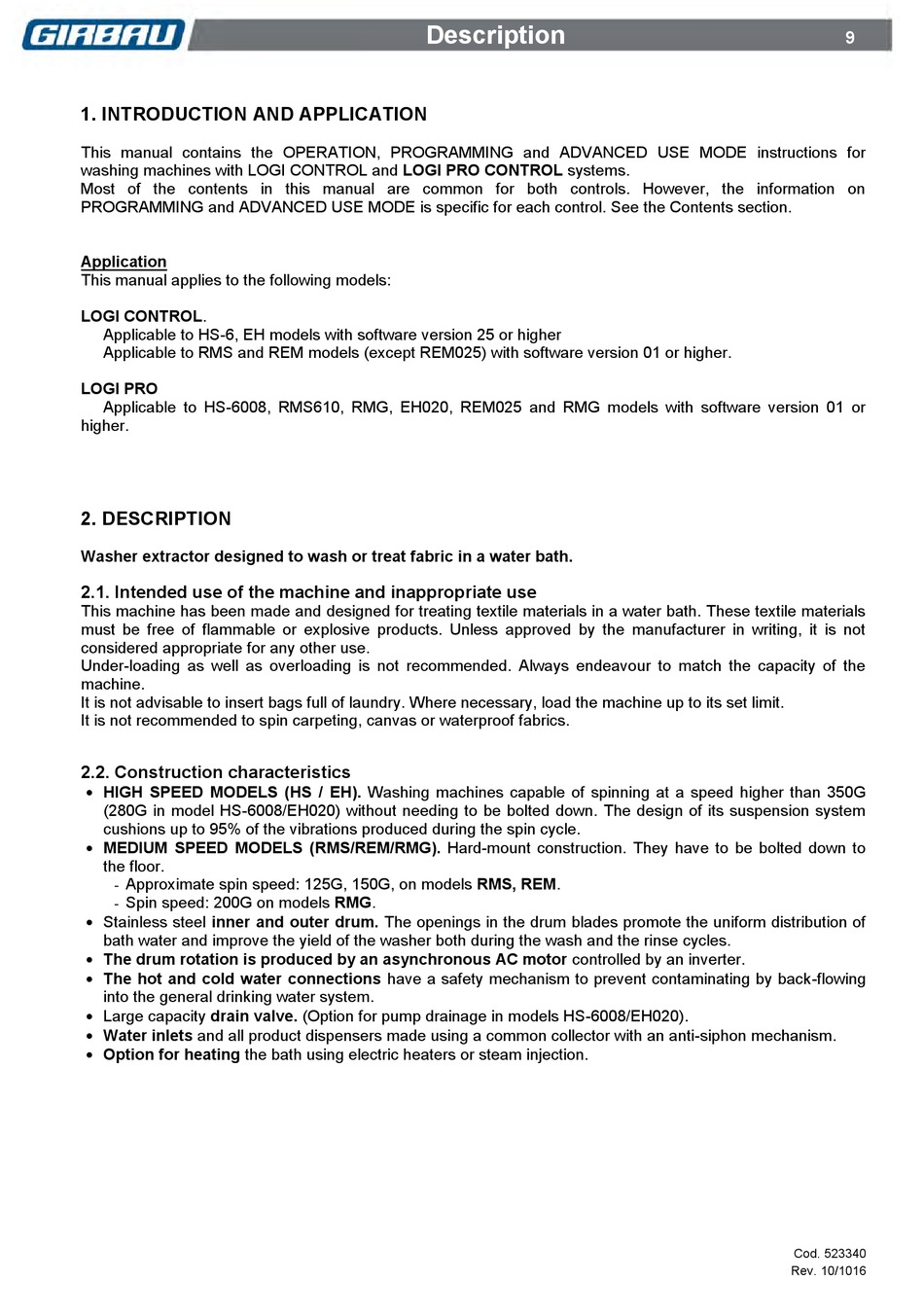

1. INTRODUCTION AND APPLICATION

This manual contains the OPERATION, PROGRAMMING and ADVANCED USE MODE instructions for
washing machines with LOGI CONTROL and LOGI PRO CONTROL systems.
Most of the contents in this manual are common for both controls. However, the information on
PROGRAMMING and ADVANCED USE MODE is specific for each control. See the Contents section.
Application
This manual applies to the following models:
LOGI CONTROL.
Applicable to HS-6, EH models with software version 25 or higher
Applicable to RMS and REM models (except REM025) with software version 01 or higher.
LOGI PRO
Applicable to HS-6008, RMS610, RMG, EH020, REM025 and RMG models with software version 01 or
higher.

2. DESCRIPTION

Washer extractor designed to wash or treat fabric in a water bath.

2.1. Intended use of the machine and inappropriate use

This machine has been made and designed for treating textile materials in a water bath. These textile materials
must be free of flammable or explosive products. Unless approved by the manufacturer in writing, it is not
considered appropriate for any other use.
Under-loading as well as overloading is not recommended. Always endeavour to match the capacity of the
machine.
It is not advisable to insert bags full of laundry. Where necessary, load the machine up to its set limit.
It is not recommended to spin carpeting, canvas or waterproof fabrics.

2.2. Construction characteristics

 HIGH SPEED MODELS (HS / EH). Washing machines capable of spinning at a speed higher than 350G
(280G in model HS-6008/EH020) without needing to be bolted down. The design of its suspension system
cushions up to 95% of the vibrations produced during the spin cycle.
 MEDIUM SPEED MODELS (RMS/REM/RMG). Hard-mount construction. They have to be bolted down to
the floor.
Approximate spin speed: 125G, 150G, on models RMS, REM.
-
Spin speed: 200G on models RMG.
-
 Stainless steel inner and outer drum. The openings in the drum blades promote the uniform distribution of
bath water and improve the yield of the washer both during the wash and the rinse cycles.
 The drum rotation is produced by an asynchronous AC motor controlled by an inverter.
 The hot and cold water connections have a safety mechanism to prevent contaminating by back-flowing
into the general drinking water system.
 Large capacity drain valve. (Option for pump drainage in models HS-6008/EH020).
 Water inlets and all product dispensers made using a common collector with an anti-siphon mechanism.
 Option for heating the bath using electric heaters or steam injection.
Description
