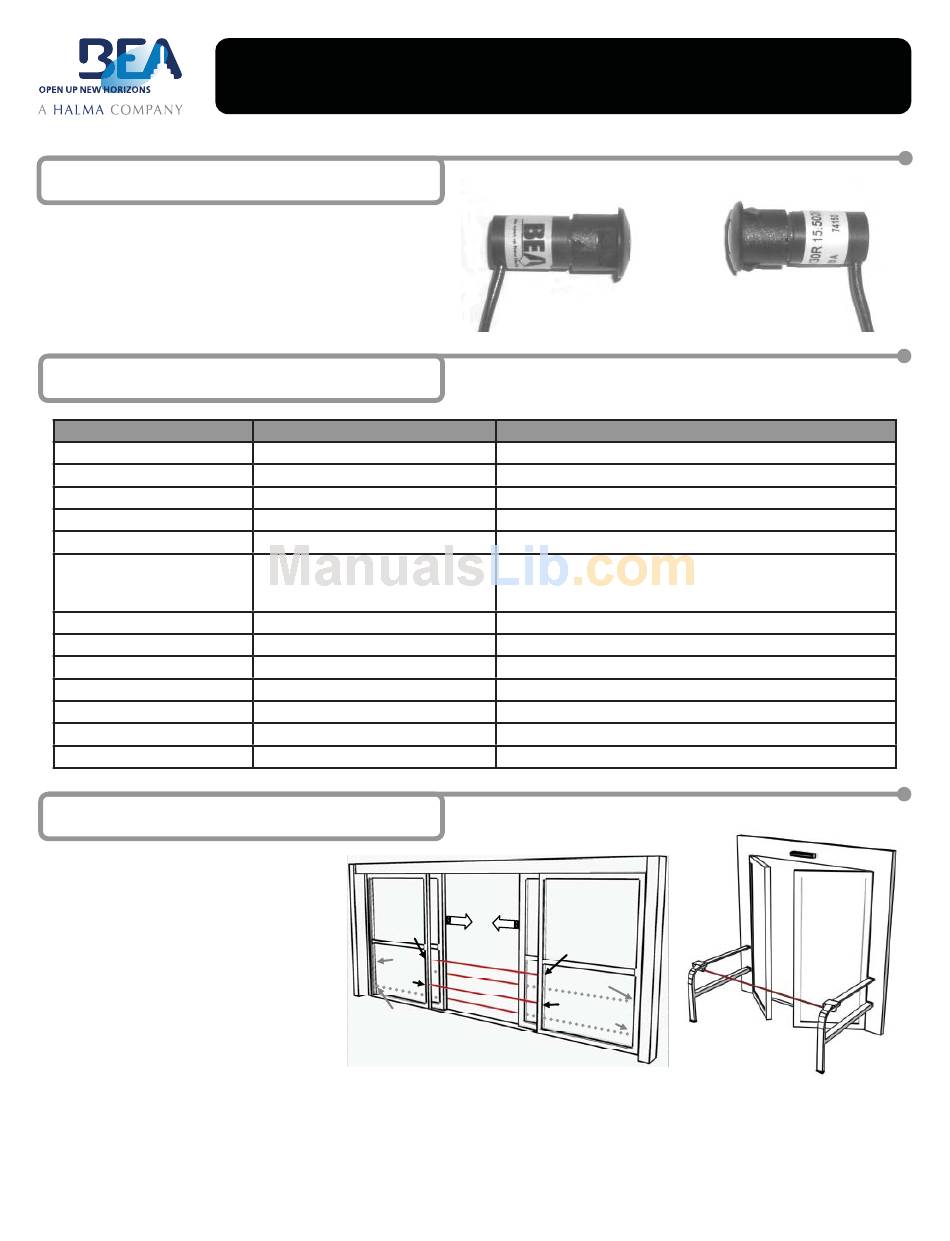

BEA SBK-30R User Manual

1 Description

The SBK-30 (10.1029) is a self-contained infrared beam set that
may be used for various applications, most commonly automatic
pedestrian doors. The beams fi t easily into a pre-drilled ½" hole
and are a snap fi t. Wiring is by a quick disconnect cable that can
be daisy-chained up to 30' (in 15' increments). The beams offer
an LED indication at their back side for ease of alignment and
Troubleshooting.
2 Specifi cations
TECHNOLOGY
DETECTION MODE
SUPPLY VOLTAGE
CURRENT CONSUMPTION
OUTPUT CONSUMPTION
OUTPUT RATING
RANGE (BEAM SEPARATION)
OUTPUT RESPONSE TIME
MATERIAL
CONNECTION
INGRESS PROTECTION
OPERATING TEMPERATURE
Wiring

3 Installation

1. Pre-drill a ½" hole at the desired mounting
location.
2. When using more than one set of beams,
alternate the beam orientation as shown
at right.
3. Route the long cable from its termination
point to the beam mounting location.
4. Plug the beam cable in via the snap
together connector.
5. Install the beam into the ½" hole and press
the beam until it clicks into the opening.
Typically, the wall thickness of the drilled
material should not exceed 1/8".
For sliding doors, ANSI/BHMA A156.10-2005 states the lowest beam should be between 6" (152mm) and 28" (711mm) from the fl oor. The
distance between the highest beam and the fl oor should be between 45" (1143mm) and 55" (1397mm). Other beams between the lowest and
highest should not be greater than 6" (152mm) and 12" (305mm) apart from any other beam.
75.5179.05 20080415
PHOTOELECTRIC BEAMS FOR GUIDE RAIL APPLICATIONS
SBK30R / SBK30T BEAM
Active Infrared: 880nm
Presence Detection
10 to 30 VDC
Receiver: 15mA / Emitter: 9mA
NPN Output, Light Operate
100 mA max. Total Output Load
30 feet
1 mS
ABS Plastic & Acrylic Lense
Molex 3-Conductor w/ 26 AWG Wire
IP65 (NEMA 4)
-30F to +130F
8" Wire on Beam / 15' Extension Cable
Emitter A
Emitter C
Receiver B
Receiver D
Beam A: Between 45" and 55" from floor
Beam B, C: Between 6" and 12" from any other beam
Beam D: Between 6" and 28" from floor
EMITTER
(SBK-30T)
SBK30 INTERFACE MODULE
One SBK30 Beam Set
N/A
12 to 24 VAC/DC
53 mA MAX
1 Relay, (NC/NO Contacts), 0-30 second adjustable hold time
Rated Load:
0.3A@125VAC (NO Contacts)
1.0A@ 30VDC (NO Contacts)
N/A
3 mS
PCB with shrink rube
One Beam Pair
IP65 (NEMA 4 Enclosure)
-30F to +130F
None Included
A
Receiver
Receiver C
Emitter B
Emitter D
SBK-30
USER'S GUIDE
RECEIVER
(SBK-30R)
0.3A@125VAC (NC Contacts)
1.0A@ 30VDC (NC Contacts)
