Multi-Sense
Multi-Configurable, Wet-to-Wet Differential Pressure Transducer
ORDERING INFORMATION
2 3 1 G
Model Range Specifications
231G = 231 Unidirectional
MS1 5, 10, 25, 50 PSID
MS2 10, 20, 50, 100 PSID
MS3 25, 50, 125, 250 PSID
Ordering Example: 231GMS12FD = Model 231, 5 PSID up to 50 PSID, 1/8" NPT Int. Fitting, and LCD Display 31GMS13VN= Model 231, 0 to 5 PSID up to 50
PSI, 3-Valve Manifold, and No LCD Display

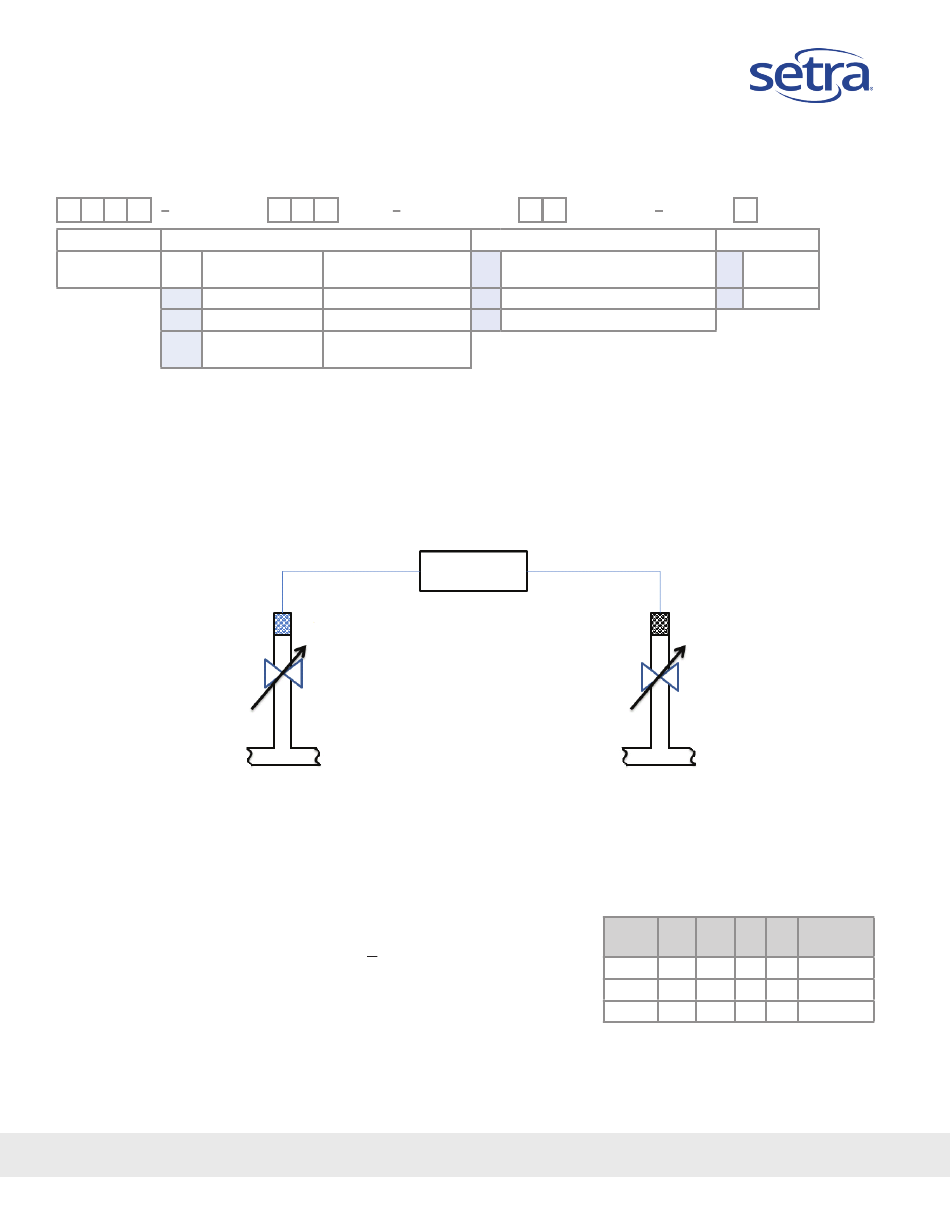

INSTALLATION
Valve A
High
PRESSURE RANGE CODE SELECTOR (IMPORTANT: READ BEFORE ORDERING)
Examine the pressure application and determine what is the Highest System Line Pressure.
Determine what is the Differential Pressure being measured.
Find the MAX. Line Pressure in the table on the right that is > to your Highest System Line Pressure.
Verify that your DP falls within the selectable ranges in that row.
Follow that row to the left and select that range code.
Example:
Highest System Line Pressure:
Differential Pressure Measured:
"Max Line Pressure" ≥ to System Line Pressure:
Select Range Code:
Phone: 800-257-3872 • Fax: 978-264-0292 • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.
Model 231
®
1
Bidirectional
±5, ±10, ±25, ±50 PSID
±10, ±20, ±50, ±100 PSID
±25, ±50, ±125, ±250 PSID
High Pressure
Remote Sensor
1
Valve A = High Side Valve
Pipe
Valve B = Low Side Valve
1. Valves not included.
125 PSIG
50 PSID
250 PSID (50 PSID DP falls within ranges in this row)
MS3
Pressure Connection
1/8-18 NPT female (Standard) Sensor
2F
(Conduit Version)
3V 3-V Manifold assembled w/ Model 231
5V 5-V Manifold assembled w/ Model 231
Maximum line pressure is maximum range
1
of pressure ordered.
Model 231
Low Pressure
Remote Sensor
Pipe
Range
Code
MS1
MS2
MS3
Display
N No Display
D LCD Display
Valve B
1
Low
A B C D Max. Line
Pressure
50 25 10 5 50
100 50 20 10 100
250 125 50 25 250
SSP231 REV. K 04/2017
