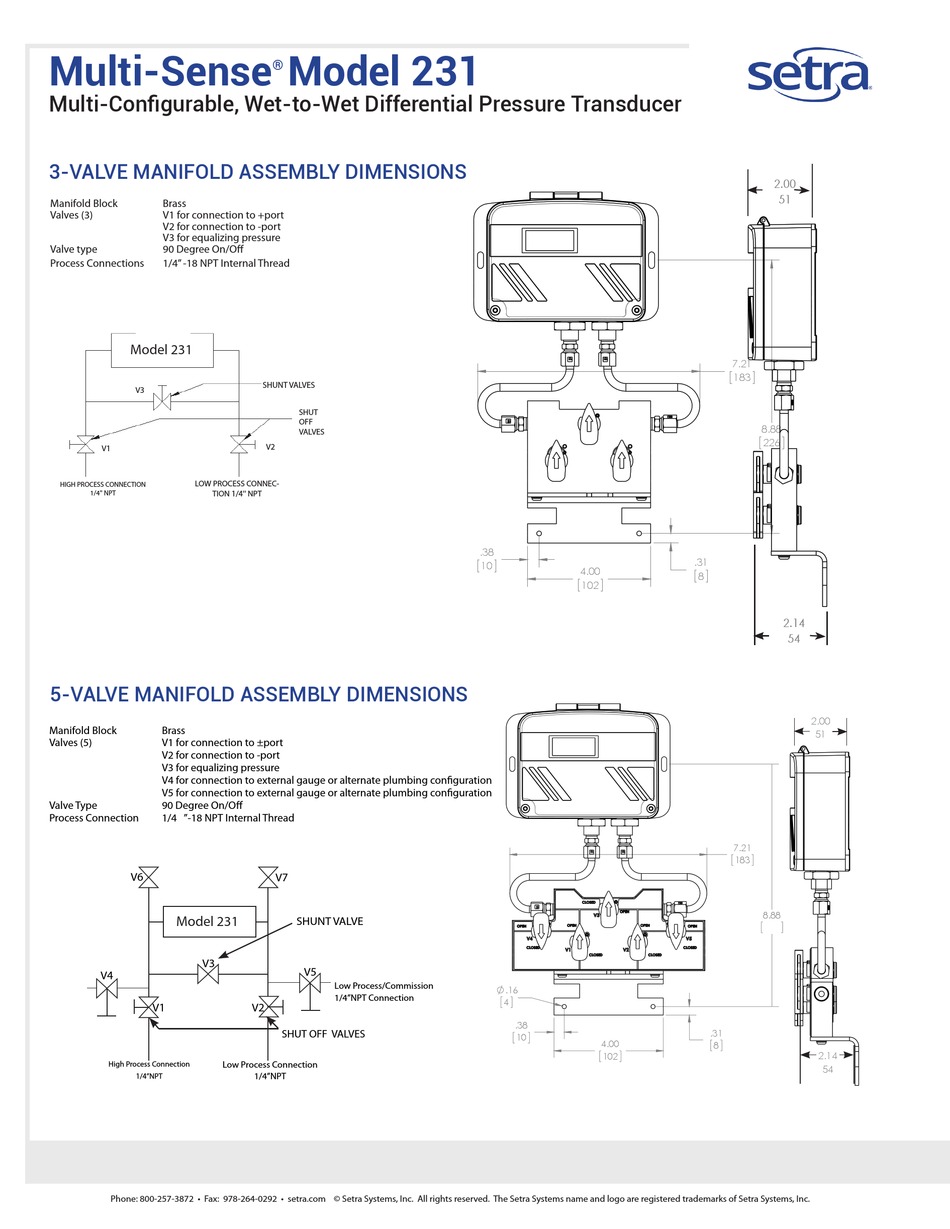

Setra Systems Multi-Sense 231 Manual page 3

Multi-Sense
Multi-Configurable, Wet-to-Wet Differential Pressure Transducer
3-VALVE MANIFOLD ASSEMBLY DIMENSIONS
Manifold Block Brass
Valves (3) V1 for connection to +port
V2 for connection to -port
V3 for equalizing pressure
Valve type 90 Degree On/Off
Process Connections 1/4" -18 NPT Internal Thread
MODEL 230
MODEL 230
Model 231
DIFFERENTIAL PRESSURE
TRANSDUCER
V3
V3
V1
V1
LOW PROCESS CONNEC-
HIGH PROCESS CONNECTION
1/4'' NPT TION 1/4'' NPT
5-VALVE MANIFOLD ASSEMBLY DIMENSIONS
Manifold Block Brass
Valves (5) V1 for connection to ±port
V2 for connection to -port
V3 for equalizing pressure
V4 for connection to external gauge or alternate plumbing configuration
V5 for connection to external gauge or alternate plumbing configuration
Valve Type 90 Degree On/Off
Process Connection 1/4 "-18 NPT Internal Thread
V6
Model 231
V3
V4
V1
Low Process Connection
High Process Connection
1/4"NPT
Phone: 800-257-3872 • Fax: 978-264-0292 • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.
Model 231
®
SHUNT VALVES
SHUT
OFF
VALVES
V2
V2
V7
SHUNT VALVE
V5
Low Process/Commission
1/4"NPT Connection
V2
SHUT OFF VALVES
1/4"NPT
.38
10
4.00
102
.16
4
.38
10
4.00
102
2.00
51
7.21
183
8.88
226
.31
8
2.14
54
2.00
51
7.21
183
8.88
.31
8
2.14
54
